DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Weight | Fan Type | Features | Width | Noise | Power (Watts) | Approval Agency | RPM | Operating Temperature | Termination | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

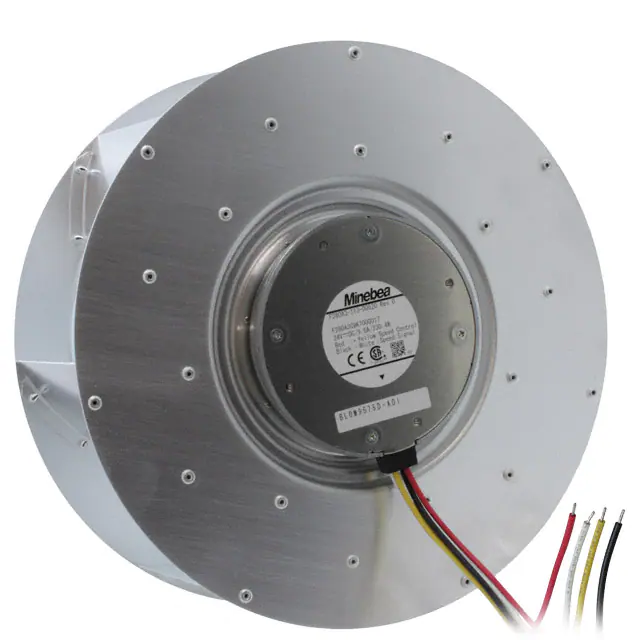

F280A3-113-D0520FAN IMP MTRZD 280X128.7MM 24VDC |
4 | - |
|
Datasheet |
F280 | Bulk | Active | 24VDC | Round - 280mm Dia | 1166.0 CFM (32.65m³/min) | 1.913 in H2O (476.5 Pa) | Ball | 4.6 lbs (2.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 128.7mm | 77.0dB(A) | 175.2 W | - | 2150 RPM | -22 ~ 158°F (-30 ~ 70°C) | 4 Wire Leads | - |
|
G1G108-AB17-02FAN BLOWER 159X115.0MM 24VDC |
8 | - |
|
Datasheet |
G1G108 | Bulk | Active | 24VDC | Rectangular/Rounded - 159mm L x 185mm H | - | - | Ball | - | Blower | PWM Control, Speed Sensor (Tach) | 115.0mm | - | 42 W | CSA, EAC, UL | 3000 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP22 |
|

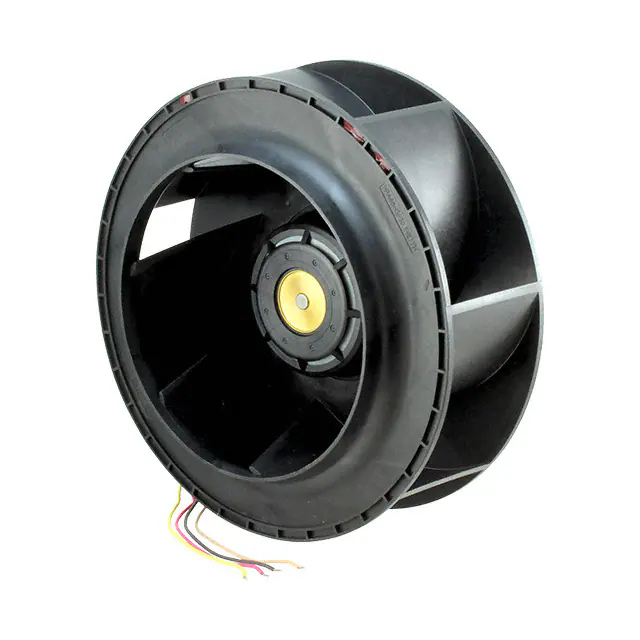

9TP24P0H001FAN IMP MTRZD 221X71MM 24VDC |
9 | - |
|
Datasheet |
San Ace C221 | Box | Active | 24VDC | Round - 221mm Dia | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | 2.4 lbs (1.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.00mm | 71.0dB(A) | 76.8 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9TS48P0H001FAN IMP MTRZD 225X99MM 48VDC |
7 | - |
|
Datasheet |
San Ace C225 | Box | Active | 48VDC | Round - 225mm Dia | 802.0 CFM (22.46m³/min) | 2.370 in H2O (590.0 Pa) | Ball | 2.6 lbs (1.2 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.00mm | 70.5dB(A) | 99.8 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9W2TS48P0S001FAN IMP MTRZD 225X99MM 48VDC |
7 | - |
|
Datasheet |
San Ace 225W | Box | Active | 48VDC | Round - 225mm Dia | 830.0 CFM (23.24m³/min) | 2.550 in H2O (635.2 Pa) | Ball | 3.3 lbs (1.5 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 99.00mm | 72.0dB(A) | 117.6 W | cURus, TUV | 3000 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
9B1TP48P0H001FAN BLOWER CF 270X99MM 48VDC |
2 | - |
|
Datasheet |
San Ace C221 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | 3.8 lbs (1.7 kg) | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 71.0dB(A) | 76.8 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9B1TP48P0G001FAN BLOWER CF 270X99MM 48VDC |
3 | - |
|
Datasheet |
San Ace C221 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 742.0 CFM (20.78m³/min) | 3.052 in H2O (760.0 Pa) | Ball | 3.8 lbs (1.7 kg) | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 74.0dB(A) | 132 W | CSA, TUV, UL | 3650 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
9B1TS48P0H001FAN BLOWER CF 270X119.0MM 48VDC |
2 | - |
|
Datasheet |
San Ace C225 | Box | Active | 48VDC | Square - 270mm L x 270mm H | 802.0 CFM (22.46m³/min) | 2.370 in H2O (590.0 Pa) | Ball | 4.2 lbs (1.9 kg) | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 119.0mm | 70.5dB(A) | 99.8 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
R1G225-AF11-14FAN IMP MTRZD 225X107.0MM 48VDC |
2 | - |
|
Datasheet |
R1G225 | Bulk | Active | 48VDC | Round - 225mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 107.0mm | - | 95 W | CSA, UL | 2700 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Position Rectangular Connector | IP44 |
|
W1G250-HH37-52FAN AXIAL 280X80MM BALL 24VDC |
14 | - |
|
Datasheet |
W1G250 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | - | 0.562 in H2O (140.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 80.00mm | - | 105 W | CSA, EAC, UL | 2750 RPM | -13 ~ 140°F (-25 ~ 60°C) | Terminal Block | IP42 |
|
9W2TP24P0H001FAN IMP MTRZD 221X71MM 24VDC |
5 | - |
|
Datasheet |
San Ace 221W | Box | Active | 24VDC | Round - 221mm Dia | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | 2.6 lbs (1.2 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.00mm | 71.5dB(A) | 80.4 W | cURus, TUV | 3050 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
D1G146-AA33-52FAN BLOWER CF 205X232.0MM 48VDC |
9 | - |
|
Datasheet |
D1G146 | Bulk | Active | 48VDC | Rectangular/Rounded - 205mm L x 219mm H | - | - | Ball | - | Blower, Centrifugal | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 232.0mm | 61.0dB(A) | 105 W | CSA, EAC, UL | 1350 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP42 |
|
9TP48P0H001FAN IMP MTRZD 221X71MM 48VDC |
5 | - |
|
Datasheet |
San Ace C221 | Box | Active | 48VDC | Round - 221mm Dia | 622.0 CFM (17.42m³/min) | 2.130 in H2O (530.6 Pa) | Ball | 2.4 lbs (1.1 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.00mm | 71.0dB(A) | 76.8 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
5152HQ/MF75090V1-C330-S9ADC BLOWER 80X87X11MM TACH/PWM |
90 | - |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5151HQ/MF75090V1-C331-S9ADC BLOWER 80X87X11MM TACH/PWM |
100 | - |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5142HQ/EE92251B1-000C-G99DC FAN 92X25MM TACH |
77 | - |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5145HQ/MF30101V2-1Q03A-G9DDC FAN 30X10MM TACH |
99 | - |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5148HQ/MG75080V1-1C011-S9ADC BLOWER 74X76X8MM TACH/PWM |
94 | - |
|
Datasheet |
MG | Box | Active | 5VDC | Rectangular/Rounded - 76mm L x 74mm H | 5.8 CFM (0.163m³/min) | 0.951 in H2O (236.9 Pa) | Sleeve | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 7.50mm | 49.0dB(A) | 2 W | CE, CSA, TUV, UR | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
5155HQ/EG50060S1-C440-S9ADC BLOWER 93X95X7.5MM TACH/PWM |
94 | - |
|
Datasheet |
EG | Box | Active | 5VDC | Rectangular/Rounded - 96.95mm L x 79.1mm H | 6.5 CFM (0.182m³/min) | 0.430 in H2O (107.1 Pa) | Sleeve | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.10mm | 40.8dB(A) | 2 W | CE, CSA, TUV, UR | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
CHA6012BH-15D12V 0.17A 60*15 BALL 2; 22.39CFM |
37 | - |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
