Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0420CDMCDS-2R2MCFIXED IND 2.2UH 4.7A 35 MOHM SMD |
0 | - |
|
Datasheet |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 4.7 A | 4.5A | - | Shielded | 35mOhm | 2.2 µH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
0420CDMCDS-R47MCFIXED IND 470NH 8.1A 8.2MOHM SMD |
0 | - |
|
Datasheet |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 8.1 A | 11A | - | Shielded | 8.2mOhm | 470 nH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
0420CDMCDS-3R3MCFIXED IND 3.3UH 3.5A 49 MOHM SMD |
0 | - |
|
Datasheet |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 3.5 A | 4.1A | - | Shielded | 49mOhm | 3.3 µH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
0420CDMCDS-R22MCFIXED IND 220NH 10A 5.3 MOHM SMD |
0 | - |
|
Datasheet |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 10 A | 15A | - | Shielded | 5.3mOhm | 220 nH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
0420CDMCDS-220MCFIXED IND 22UH 1.5A 316 MOHM SMD |
0 | - |
|
Datasheet |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.5 A | 1.6A | - | Shielded | 316mOhm | 22 µH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
0420CDMCDS-4R7MCFIXED IND 4.7UH 3.1A 67 MOHM SMD |
0 | - |
|
Datasheet |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 3.1 A | 3.4A | - | Shielded | 67mOhm | 4.7 µH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
0420CDMCDS-1R5MCFIXED IND 1.5UH 5.1A 23 MOHM SMD |
0 | - |
|
Datasheet |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 5.1 A | 5.8A | - | Shielded | 23mOhm | 1.5 µH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
0420CDMCDS-100MCFIXED IND 10UH 2.1A 148 MOHM SMD |
0 | - |
|
Datasheet |
0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 2.1 A | 2.3A | - | Shielded | 148mOhm | 10 µH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
CLF7045T-331MFIXED IND 330UH 420MA 1.236 OHM |
0 | - |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 420 mA | 490mA | - | Shielded | 1.236Ohm Max | 330 µH | - | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 105°C | 100 kHz | 0.189" (4.80mm) |
|
|
CLF7045T-471MFIXED IND 470UH 370MA 1.704 OHM |
0 | - |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 370 mA | 430mA | - | Shielded | 1.704Ohm Max | 470 µH | - | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 105°C | 100 kHz | 0.189" (4.80mm) |
|

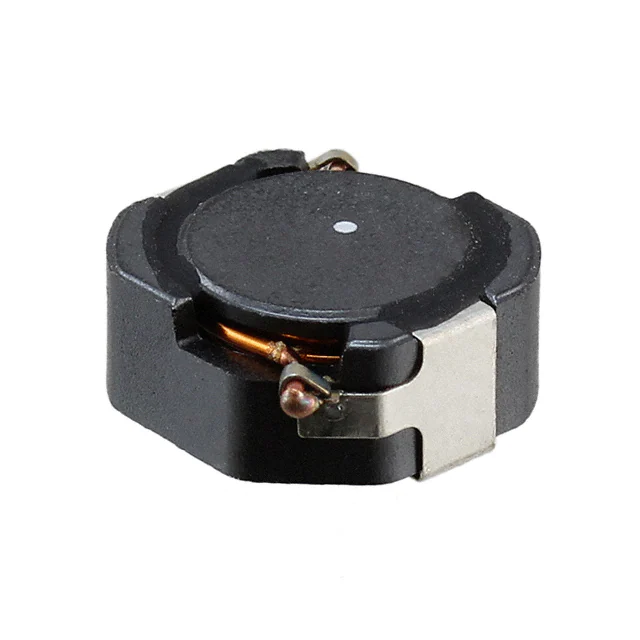

CLF12555T-471MFIXED IND 470UH 600MA 954MOHM SM |
0 | - |
|
Datasheet |
CLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 600 mA | 1A | - | Shielded | 954mOhm Max | 470 µH | - | - | Surface Mount | - | 0.492" L x 0.476" W (12.50mm x 12.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
CDR63BNP-100MCFIXED IND 10UH 1A 140 MOHM SMD |
0 | - |
|
Datasheet |
CDR63 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1 A | - | - | Shielded | 140mOhm Max | 10 µH | - | 35.3MHz | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.138" (3.50mm) |
|
|
CDR63BNP-220MCFIXED IND 22UH 760MA 320MOHM SMD |
0 | - |
|
Datasheet |
CDR63 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 760 mA | - | - | Shielded | 320mOhm Max | 22 µH | - | 23.1MHz | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.138" (3.50mm) |
|
|
CDR63BNP-680LCFIXED IND 68UH 420MA 820MOHM SMD |
0 | - |
|
Datasheet |
CDR63 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±15% | 420 mA | - | - | Shielded | 820mOhm Max | 68 µH | - | 12.1MHz | Surface Mount | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | - | -40°C ~ 100°C | 2.52 MHz | 0.138" (3.50mm) |
|
PI60-02-FPIZFIXED IND 80NH 90A 0.5 MOHM SMD |
0 | - |
|
Datasheet |
PI60-XX | 2-SMD | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 90 A | - | - | Unshielded | 0.5mOhm Max | 80 nH | - | - | Surface Mount | - | 0.382" L x 0.319" W (9.70mm x 8.10mm) | - | -55°C ~ 125°C | 1 MHz | 0.252" (6.40mm) |
|
|
PI60-04-FPIZFIXED IND 125NH 55A 0.5 MOHM SMD |
0 | - |
|
Datasheet |
PI60-XX | 2-SMD | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 55 A | - | - | Unshielded | 0.5mOhm Max | 125 nH | - | - | Surface Mount | - | 0.382" L x 0.319" W (9.70mm x 8.10mm) | - | -55°C ~ 125°C | 1 MHz | 0.252" (6.40mm) |
|
|
PI60-05-FPIZFIXED IND 150NH 40A 0.5 MOHM SMD |
0 | - |
|
Datasheet |
PI60-XX | 2-SMD | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 40 A | - | - | Unshielded | 0.5mOhm Max | 150 nH | - | - | Surface Mount | - | 0.382" L x 0.319" W (9.70mm x 8.10mm) | - | -55°C ~ 125°C | 1 MHz | 0.252" (6.40mm) |
|
CDRH5D14HPNP-100NCFIXED IND 10UH 1.3A 148 MOHM SMD |
0 | - |
|
Datasheet |
CDRH5D14/HP | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | ±30% | 1.3 A | 1.1A | - | Shielded | 148mOhm Max | 10 µH | - | - | Surface Mount | - | 0.240" L x 0.228" W (6.10mm x 5.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.059" (1.50mm) |
|
CLS62NP-150NCFIXED IND 15UH 572MA 291MOHM SMD |
0 | - |
|
Datasheet |
CLS | 4-SMD | Tape & Reel (TR) | Obsolete | - | - | ±30% | 572 mA | - | - | Shielded | 291mOhm Max | 15 µH | - | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | - | - | 2.52 MHz | 0.098" (2.50mm) |
|
CDRH2D09NP-100MCFIXED IND 10UH 420MA 450MOHM SMD |
0 | - |
|
Datasheet |
CDRH2D09 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | ±25% | 420 mA | 280mA | - | Shielded | 450mOhm | 10 µH | - | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.039" (1.00mm) |
