High Frequency (RF) Relays

Manufacturer	Series	Packaging	Part Status	Coil Type	Coil Current	Contact Form	Contact Rating (Current)	Switching Voltage	Must Operate Voltage	Must Release Voltage	Coil Voltage	Operate Time	Release Time	Features	Operating Temperature	Mounting Style	Termination Style
Coto Technology Omron Electronics Inc-EMC Div Panasonic Electric Works Pasternack Standex-Meder Electronics TE Connectivity TE Connectivity Aerospace, Defense and Marine TE Connectivity AMP Connectors TE Connectivity Potter & Brumfield Relays	* - 2200 2300 2600 2900 9000 9200 9270 9290 9400 9800 9853 9900 ARA ARE ARJ ARN ARS ARX ARXP B10 B40 B41 CRF G5Y-1 G6K G6K-RF G6W G6Y G6Z G9YA HF HF3, AXICOM HF3S, AXICOM HF6, AXICOM MW3S, CII MW4HP, CII MW6, CII MW6HP, CII MW6S, CII RK RP	- Box Bulk Retail Package Tape & Reel (TR) Tray Tube	Active Discontinued at InFortune Not For New Designs Obsolete	- Latching, Dual Coil Latching, Single Coil Non Latching	- 100 mA 11.3 mA 11.7 mA 12 mA 12.5 mA 13.3 mA 13.5 mA 133 mA 133.3 mA 14 mA 14.3 mA 14.5 mA 15 mA 15.5 mA 15.6 mA 15.7 mA 155 mA 16 mA 16.7 mA 17.6 mA 17.9 mA 18.5 mA 20 mA 21.1 mA 21.7 mA 22.2 mA 23.2 mA 23.3 mA 23.4 mA 24 mA 25 mA 26.7 mA 28 mA 28.1 mA 28.6 mA 29.2 mA 30 mA 31 mA 31.1 mA 31.3 mA 33 mA 33.3 mA 4.2 mA 4.6 mA 40 mA 41.7 mA 43 mA 44.4 mA 45.5 mA 46.7 mA 46.9 mA 47 mA 47.1 mA 47.9 mA 48 mA 5.8 mA 50 mA 58.5 mA 6.3 mA 60 mA 66.7 mA 7.8 mA 71.1 mA 72 mA 8 mA 8.3 mA 80 mA 88.9 mA 9.1 mA 93.8 mA	- 6PST-NO (6 Form A) DPDT (2 Form C) DPST-NO (2 Form A) SPDT (1 Form C) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 4	- 1 A 1.5 A 10 mA 100 mA 140 mA 2 A 250 mA 300 mA 500 mA	- 100VAC, 100VDC - Max 125VAC, 125VDC - Max 125VAC, 60VDC - Max 12VDC - Nom 150VAC, 150VDC - Max 170VAC, 170VDC - Max 200VAC, 200VDC - Max 200VDC - Max 250VAC - Max 250VAC, 220VDC - Max 28VDC - Nom 30VAC, 30VDC - Max 30VDC - Max 30VDC - Nom 500VAC, 500VDC - Max 50VAC, 50VDC - Max	- 1.13 VDC 10.5 VDC 13.4 VDC 16.8 VDC 18 VDC 19.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.7 VDC 22.4 VDC 3.38 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 36 VDC 4 VDC 4.5 VDC 4.8 VDC 6.7 VDC 6.75 VDC 7.2 VDC 8.4 VDC 9 VDC 9.6 VDC	- 0.15 VDC 0.22 VDC 0.3 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.6 VDC 0.75 VDC 0.9 VDC 1 VDC 1.2 VDC 1.8 VDC 2 VDC 2.4 VDC 3.6 VDC 4.8 VDC	- 1.5VDC 12VDC 18VDC 24VDC 28VDC 3.3VDC 3VDC 4.5VDC 48VDC 5VDC 6VDC 9VDC	- 0.1 ms 0.25 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- 0.02 ms 0.03 ms 0.05 ms 0.1 ms 0.15 ms 0.2 ms 0.5 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- Diode Diode, Magnetic Shield Magnetic Shield Sealed - Flux Protection Sealed - Fully Sealed - Hermetically TTL Driven	- -20°C ~ 125°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 60°C -25°C ~ 65°C -30°C ~ 70°C -40°C ~ 125°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 85°C -65°C ~ 125°C	- Chassis Mount Surface Mount Through Hole	- Axial BGA Gull Wing J Lead PC Pin SMD (SMT) Tab Solder Lug

Reset All

Apply All

Result

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Coil Type	Coil Current	Contact Form	Contact Rating (Current)	Switching Voltage	Must Operate Voltage	Must Release Voltage	Coil Voltage	Operate Time	Release Time	Features	Operating Temperature	Mounting Style	Termination Style
9002-05-00 RELAY RF SPST-NO 500MA 5V Coto Technology	12,359	-	RFQ	Datasheet	9000	Tube	Active	Non Latching	14.3 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	5VDC	0.35 ms	0.1 ms	-	-20°C ~ 85°C	Through Hole	PC Pin
9002-05-01 RELAY RF SPST-NO 500MA 5V Coto Technology	9,254	-	RFQ	Datasheet	9000	Tube	Active	Non Latching	14.3 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	5VDC	0.35 ms	0.1 ms	Diode	-20°C ~ 85°C	Through Hole	PC Pin
9002-05-10 RELAY RF SPST-NO 500MA 5V Coto Technology	1,680	-	RFQ	Datasheet	9000	Tube	Active	Non Latching	14.3 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	5VDC	0.35 ms	0.1 ms	Magnetic Shield	-20°C ~ 85°C	Through Hole	PC Pin

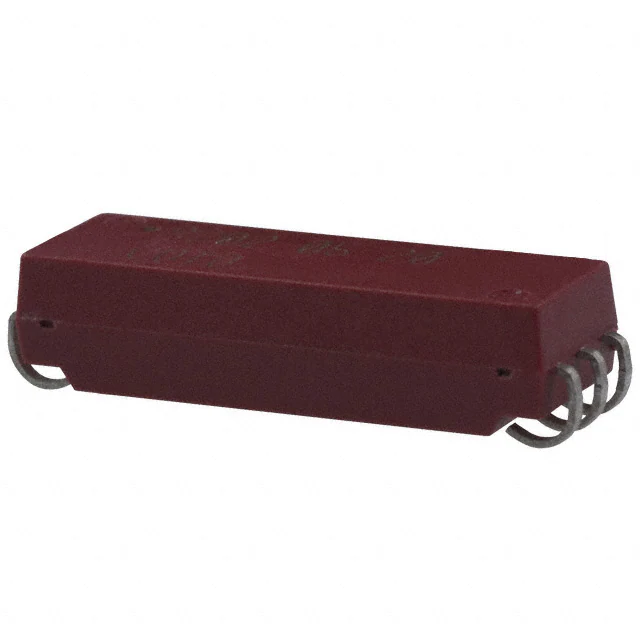

9202-05-20 RELAY RF SPST-NO 500MA 5V Coto Technology	7,192	-	RFQ	Datasheet	9200	Tube	Active	Non Latching	33.3 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	5VDC	0.4 ms	0.1 ms	Sealed - Hermetically	-20°C ~ 85°C	Surface Mount	J Lead

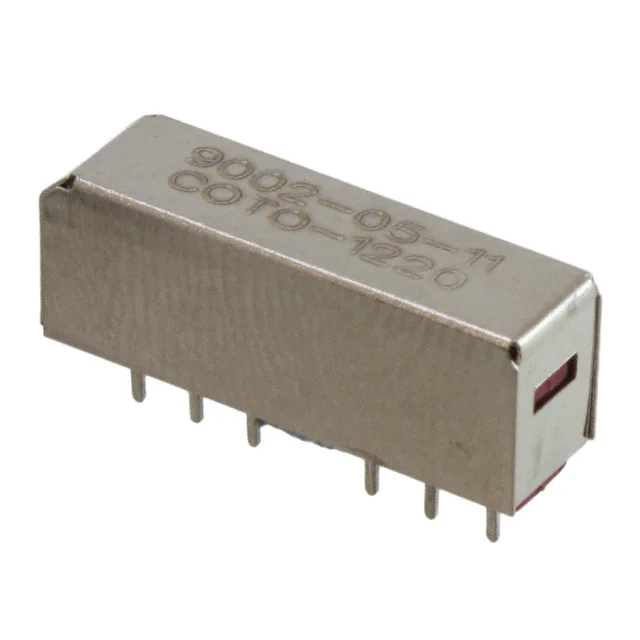

9002-05-11 RELAY RF SPST-NO 500MA 5V Coto Technology	5,397	-	RFQ	Datasheet	9000	Tube	Active	Non Latching	14.3 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	5VDC	0.35 ms	0.1 ms	Diode, Magnetic Shield	-20°C ~ 85°C	Through Hole	PC Pin
9402-05-20 RELAY RF SPST-NO 500MA 5V Coto Technology	9,130	-	RFQ	Datasheet	9400	Tube	Active	Non Latching	25 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	5VDC	0.4 ms	0.2 ms	-	-20°C ~ 85°C	Surface Mount	J Lead

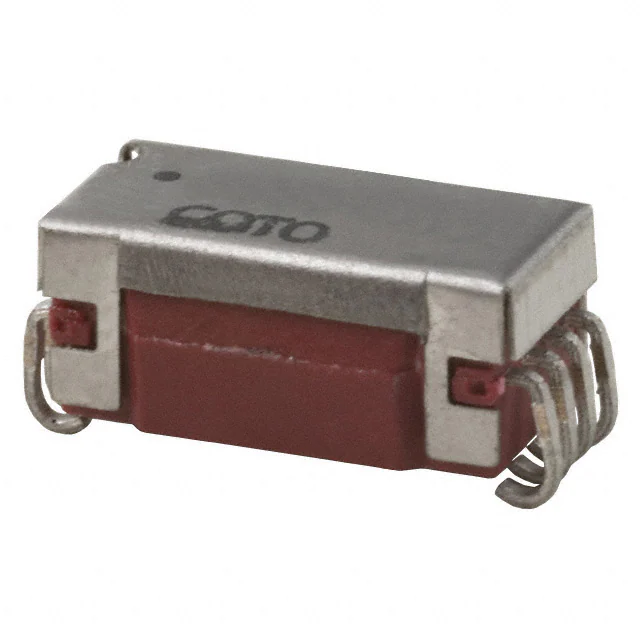

9814-05-20 RELAY RF SPST-NO 250MA 5V Coto Technology	26,084	-	RFQ	Datasheet	9800	Tube	Active	Non Latching	33.3 mA	SPST-NO (1 Form A)	250 mA	100VAC, 100VDC - Max	3.8 VDC	0.4 VDC	5VDC	0.25 ms	0.05 ms	Magnetic Shield	-20°C ~ 85°C	Surface Mount	J Lead

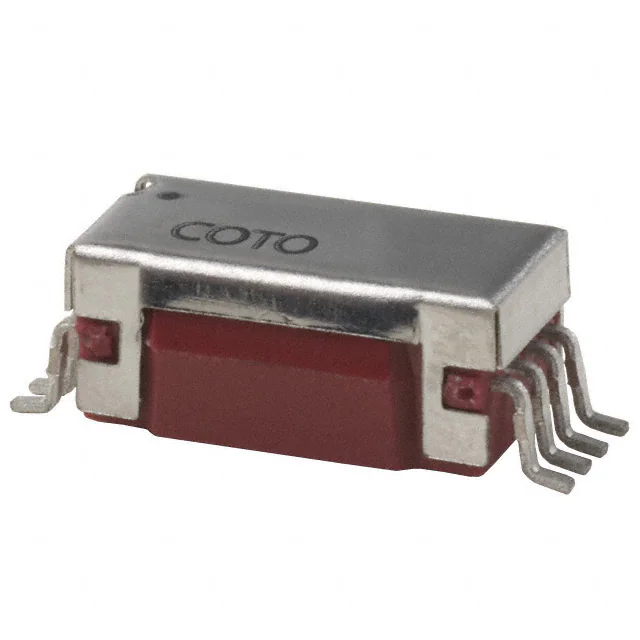

9814-05-00TR RELAY RF SPST-NO 250MA 5V Coto Technology	8,706	-	RFQ	Datasheet	9800	Tape & Reel (TR)	Active	Non Latching	33.3 mA	SPST-NO (1 Form A)	250 mA	100VAC, 100VDC - Max	3.8 VDC	0.4 VDC	5VDC	0.25 ms	0.05 ms	Magnetic Shield	-20°C ~ 85°C	Surface Mount	Gull Wing

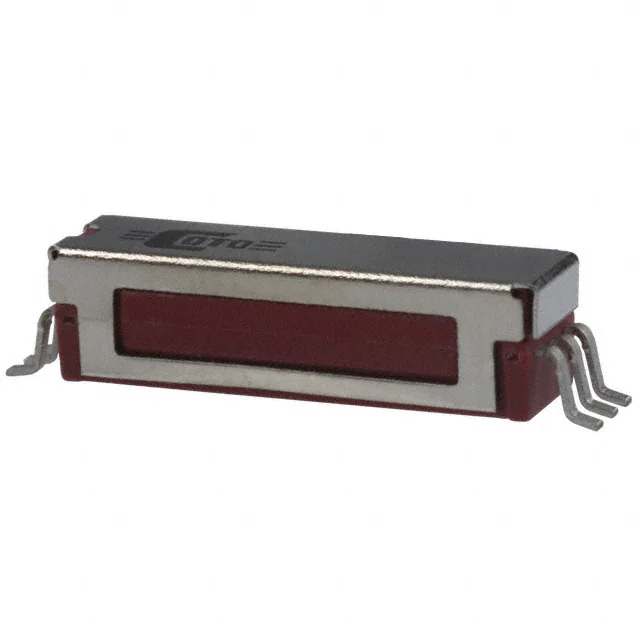

9290-05-00TR RELAY RF SPST-NO 500MA 5V Coto Technology	2,654	-	RFQ	Datasheet	9290	Tape & Reel (TR)	Active	Non Latching	31.3 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	5VDC	0.4 ms	0.1 ms	Magnetic Shield	-20°C ~ 85°C	Surface Mount	Gull Wing
CRF05-1A RELAY RF SPST-NO 500MA 5V Standex-Meder Electronics	6,781	-	RFQ	Datasheet	CRF	Tape & Reel (TR)	Active	Non Latching	33.3 mA	SPST-NO (1 Form A)	500 mA	170VAC, 170VDC - Max	3.75 VDC	0.75 VDC	5VDC	0.1 ms	0.02 ms	-	-40°C ~ 125°C	Surface Mount	SMD (SMT) Tab
9814-05-00 RELAY RF SPST-NO 250MA 5V Coto Technology	31,123	-	RFQ	Datasheet	9800	Tube	Active	Non Latching	33.3 mA	SPST-NO (1 Form A)	250 mA	100VAC, 100VDC - Max	3.8 VDC	0.4 VDC	5VDC	0.25 ms	0.05 ms	Magnetic Shield	-20°C ~ 85°C	Surface Mount	Gull Wing
9270-05-00TR RELAY RF SPST-NO 500MA 5V Coto Technology	17,769	-	RFQ	Datasheet	9270	Tape & Reel (TR)	Active	Non Latching	50 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	2.5 VDC	0.4 VDC	5VDC	0.4 ms	0.1 ms	Magnetic Shield	-20°C ~ 125°C	Surface Mount	Gull Wing

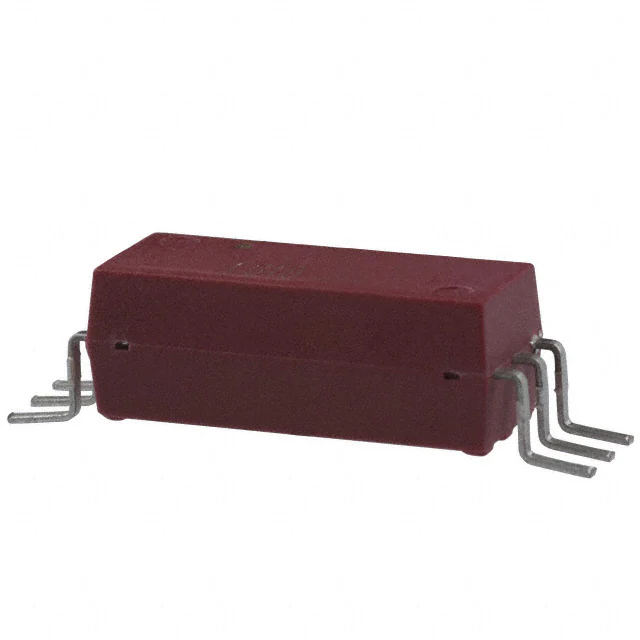

9402-05-00TR RELAY RF SPST-NO 500MA 5V Coto Technology	4,015	-	RFQ	Datasheet	9400	Tape & Reel (TR)	Active	Non Latching	25 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	5VDC	0.4 ms	0.2 ms	-	-20°C ~ 85°C	Surface Mount	Gull Wing
ARS144H RELAY RF SPDT 500MA 4.5V Panasonic Electric Works	205	-	RFQ	Datasheet	ARS	Box	Active	Non Latching	44.4 mA	SPDT (1 Form C)	500 mA	30VDC - Max	3.38 VDC	0.45 VDC	4.5VDC	10 ms	6 ms	-	-40°C ~ 70°C	Through Hole	PC Pin
CRF05-1AS RELAY RF SPST-NO 500MA 5V Standex-Meder Electronics	4,127	-	RFQ	Datasheet	CRF	Tape & Reel (TR)	Active	Non Latching	33.3 mA	SPST-NO (1 Form A)	500 mA	170VAC, 170VDC - Max	3.75 VDC	0.75 VDC	5VDC	0.1 ms	0.02 ms	-	-40°C ~ 125°C	Surface Mount	BGA
ARS1412 RELAY RF SPDT 500MA 12V Panasonic Electric Works	993	-	RFQ	Datasheet	ARS	Tube	Active	Non Latching	16.7 mA	SPDT (1 Form C)	500 mA	30VDC - Max	9 VDC	1.2 VDC	12VDC	10 ms	6 ms	-	-40°C ~ 70°C	Through Hole	PC Pin
1462051-1 RELAY RF SPDT 2A 3V TE Connectivity Potter & Brumfield Relays	3,714	-	RFQ	Datasheet	HF3, AXICOM	Tape & Reel (TR)	Active	Non Latching	46.7 mA	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	2.25 VDC	0.3 VDC	3VDC	5 ms	4 ms	-	-55°C ~ 85°C	Surface Mount	Gull Wing
G6K-2F-RF-S DC4.5 RELAY RF DPDT 1A 4.5V Omron Electronics Inc-EMC Div	4,218	-	RFQ	Datasheet	G6K-RF	Tray	Active	Non Latching	23.2 mA	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	3.6 VDC	0.45 VDC	4.5VDC	3 ms	3 ms	-	-40°C ~ 70°C	Surface Mount	Gull Wing
G6K-2F-RF-TR03 DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	10,006	-	RFQ	Datasheet	G6K-RF	Tape & Reel (TR)	Active	Non Latching	21.1 mA	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	4 VDC	0.5 VDC	5VDC	3 ms	3 ms	-	-40°C ~ 70°C	Surface Mount	Gull Wing
G6K-2F-RF-TR03 DC12 RELAY RF DPDT 1A 12V Omron Electronics Inc-EMC Div	1,518	-	RFQ	Datasheet	G6K-RF	Tape & Reel (TR)	Active	Non Latching	9.1 mA	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	9.6 VDC	1.2 VDC	12VDC	3 ms	3 ms	-	-40°C ~ 70°C	Surface Mount	Gull Wing

Total 995 itemsPrevious12 3 4 5 6 7 8 9 10 Next
