Single Zener Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Voltage - Zener (Nom) (Vz) | Tolerance | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Power - Max | Qualification | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLZ8V2B-GS08DIODE ZENER 7.73V 500MW SOD80 |
5,613 | - |
|
Datasheet |
VLZ | SOD-80 Variant | Tape & Reel (TR) | Obsolete | 7.73 V | - | 8 Ohms | 7.5 µA @ 7.39 V | 1.5 V @ 200 mA | -65°C ~ 175°C | Automotive | 500 mW | AEC-Q101 | Surface Mount | SOD-80 QuadroMELF |
|
|
VLZ8V2-GS08DIODE ZENER 8.2V 500MW SOD80 |
6,066 | - |
|
Datasheet |
VLZ | SOD-80 Variant | Tape & Reel (TR) | Obsolete | 8.2 V | - | 8 Ohms | - | 1.5 V @ 200 mA | -65°C ~ 175°C | Automotive | 500 mW | AEC-Q101 | Surface Mount | SOD-80 QuadroMELF |
|
|
VLZ9V1A-GS08DIODE ZENER 8.51V 500MW SOD80 |
3,490 | - |
|
Datasheet |
VLZ | SOD-80 Variant | Tape & Reel (TR) | Obsolete | 8.51 V | - | 8 Ohms | 40 µA @ 7.88 V | 1.5 V @ 200 mA | -65°C ~ 175°C | Automotive | 500 mW | AEC-Q101 | Surface Mount | SOD-80 QuadroMELF |
|
|
VLZ9V1C-GS08DIODE ZENER 9.07V 500MW SOD80 |
5,252 | - |
|
Datasheet |
VLZ | SOD-80 Variant | Tape & Reel (TR) | Obsolete | 9.07 V | - | 8 Ohms | 40 µA @ 8.39 V | 1.5 V @ 200 mA | -65°C ~ 175°C | Automotive | 500 mW | AEC-Q101 | Surface Mount | SOD-80 QuadroMELF |
|
|
VLZ9V1-GS08DIODE ZENER 9.1V 500MW SOD80 |
5,792 | - |
|
Datasheet |
VLZ | SOD-80 Variant | Tape & Reel (TR) | Obsolete | 9.1 V | - | 8 Ohms | - | 1.5 V @ 200 mA | -55°C ~ 175°C | Automotive | 500 mW | AEC-Q101 | Surface Mount | SOD-80 QuadroMELF |
|
1N4734ADIODE ZENER 5.6V 1W DO204AL |
3,204 | - |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Bulk | Active | 5.6 V | ±5% | 5 Ohms | 10 µA @ 2 V | - | -65°C ~ 200°C | - | 1 W | - | Through Hole | DO-204AL (DO-41) |
|
CDLL5221CDIODE ZENER 2.4V DO-213AA |
5,308 | - |
|
Datasheet |
- | DO-213AA | Bulk | Active | 2.4 V | ±2% | 30 Ohms | 100 µA @ 1 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | - | Surface Mount | DO-213AA |
|
|
CDLL5269CDIODE ZENER 87V DO-213AA |
7,986 | - |
|
Datasheet |
- | DO-213AA | Bulk | Active | 87 V | ±2% | 370 Ohms | 100 nA @ 68 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | - | Surface Mount | DO-213AA |
|
|
JANTXV1N823UR-1DIODE ZENER 6.2V 500MW DO213AA |
6,006 | - |
|
Datasheet |
- | DO-213AA | Bulk | Active | 6.2 V | ±5% | 15 Ohms | 2 µA @ 3 V | - | - | Military | 500 mW | MIL-PRF-19500/159 | Surface Mount | DO-213AA |
|
|
1N4109CUR-1DIODE ZENER 15V 500MW DO213AA |
4,071 | - |
|
Datasheet |
- | DO-213AA | Bag | Active | 15 V | ±2% | 100 Ohms | 50 nA @ 11.4 V | 1.1 V @ 200 mA | -65°C ~ 175°C (TJ) | - | 500 mW | - | Surface Mount | DO-213AA |
|
JANTX1N975C-1/TRDIODE ZENER 39V 500MW DO204AH |
8,340 | - |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | 39 V | ±2% | 80 Ohms | 500 nA @ 30 V | 1.1 V @ 200 mA | -55°C ~ 175°C | Military | 500 mW | MIL-PRF-19500/117 | Through Hole | DO-204AH (DO-35) |
|
JANTX1N4994USDIODE ZENER 330V 5W D5B |
4,646 | - |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | 330 V | ±5% | 1175 Ohms | 2 µA @ 251 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | 5 W | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
JANTX1N6485USDIODE ZENER 3.3V 1.5W D5A |
3,615 | - |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 3.3 V | ±5% | 10 Ohms | 50 µA @ 1 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | 1.5 W | MIL-PRF-19500/406 | Surface Mount | D-5A |
|
|
BZT52B13JS-TPS01DIODE ZENER 13V 200MW SOD323 |
5,541 | - |
|
Datasheet |
- | SC-76, SOD-323 | Bulk | Active | 13 V | ±2% | 30 Ohms | 100 nA @ 8 V | 900 mV @ 10 mA | -55°C ~ 150°C (TJ) | - | 200 mW | - | Surface Mount | SOD-323 |
|
|
JANTX1N6488USDIODE ZENER 4.3V 1.5W D5A |
2,140 | - |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | 4.3 V | ±5% | 9 Ohms | 5 µA @ 1 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | 1.5 W | MIL-PRF-19500/406 | Surface Mount | D-5A |
|

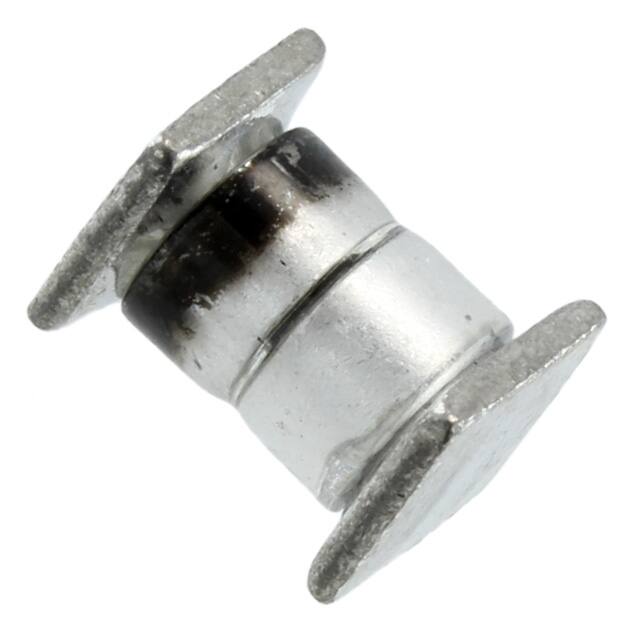

JANTX1N6633USDIODE ZENER 3.6V 5W D5B |
5,855 | - |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | 3.6 V | ±5% | 2.5 Ohms | 250 µA @ 1 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | 5 W | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
|
BZY55B12DIODE ZENER 12V 500MW 805 |
6,677 | - |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 12 V | ±2% | 20 Ohms | 100 nA @ 9.1 V | 1.5 V @ 10 mA | -55°C ~ 150°C (TJ) | - | 500 mW | - | Surface Mount | 0805 |
|
BZV85-C11,133DIODE ZENER 11V 1.3W DO41 |
6,765 | - |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Box (TB) | Active | 11 V | ±5% | 10 Ohms | 200 nA @ 7.7 V | 1 V @ 50 mA | -65°C ~ 200°C | - | 1.3 W | - | Through Hole | DO-41 |
|
|
BZV85-C43,133DIODE ZENER 43V 1.3W DO41 |
3,794 | - |
|
Datasheet |
- | DO-204AL, DO-41, Axial | Tape & Box (TB) | Active | 43 V | ±5% | 75 Ohms | 50 nA @ 30 V | 1 V @ 50 mA | -65°C ~ 200°C | - | 1.3 W | - | Through Hole | DO-41 |
|
|
CZRZC52C4V7-HFDIODE ZENER 4.7V 100MW 0201 |
4,677 | - |
|
Datasheet |
- | 0201 (0603 Metric) | Tape & Reel (TR) | Active | 4.7 V | ±5.11% | 100 Ohms | 2 µA @ 1 V | 900 mV @ 10 mA | 150°C (TJ) | - | 100 mW | - | Surface Mount | 0201/DFN0603 |
