Arrays, Signal Transformers

Manufacturer	Series	Package/Case	Packaging	Part Status	Number of Coils	Inductance - Connected In Parallel	Tolerance	Current Rating - Parallel	Current Rating - Series	Height	Current Saturation - Parallel	Current Saturation - Series	Inductance - Connected In Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Size / Dimension	Shielding	Mounting Style	Ratings	Operating Temperature
Allied Components International Amgis, LLC Bourns Inc. Central Technologies COILCRAFT Delevan Eaton - Electronics Division EPCOS - TDK Electronics Gowanda Hammond Manufacturing ITG Electronics, Inc. Pulse Electronics Signal Transformer Sprague-Goodman Sumida America Components Inc. Talema TT Electronics / BI Technologies VACUUMSCHMELZE GmbH & Co. KG. Vishay Dale Würth Elektronik

Reset All

Apply All

Result

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Part Status	Number of Coils	Inductance - Connected In Parallel	Tolerance	Current Rating - Parallel	Current Rating - Series	Height	Current Saturation - Parallel	Current Saturation - Series	Inductance - Connected In Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Size / Dimension	Shielding	Mounting Style	Ratings	Operating Temperature
DRQ73-100-R INDUCT ARRAY 2 COIL 10.3UH SMD Eaton - Electronics Division	38,053	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	10.3 µH	±20%	2.08 A	1.04 A	0.140" (3.55mm)	2.47 A	1.24 A	41.2 µH	65.6mOhm	262.3mOhm	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
SRF1260-101M INDUCT ARRAY 2 COIL 100UH SMD Bourns Inc.	6,892	-	RFQ	Datasheet	SRF1260	Nonstandard	Tape & Reel (TR)	Active	2	100 µH	±20%	1.78 A	892 mA	0.244" (6.20mm)	2.2 A	1.1 A	400 µH	171mOhm Max	656mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
SRF1280-100M INDUCT ARRAY 2 COIL 10UH SMD Bourns Inc.	2,967	-	RFQ	Datasheet	SRF1280	Nonstandard	Tape & Reel (TR)	Active	2	10 µH	±20%	6.04 A	3.02 A	0.315" (8.00mm)	11.2 A	5.6 A	40 µH	24.1mOhm Max	92.1mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
CTX33-3P-R INDUCT ARRAY 2 COIL 32.63UH SMD Eaton - Electronics Division	6,559	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	32.63 µH	±20%	1.3 A	650 mA	0.190" (4.83mm)	-	-	130.54 µH	146mOhm Max	571mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
744877220 INDUCT ARRAY 2 COIL 22UH SMD Würth Elektronik	4,039	-	RFQ	Datasheet	WE-DD	Nonstandard	Tape & Reel (TR)	Active	2	11 µH	±20%	800 mA	400 mA	0.189" (4.80mm)	1.8 A	900 mA	44 µH	260mOhm Max	-	0.287" L x 0.287" W (7.30mm x 7.30mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
CTX10-2P-R INDUCT ARRAY 2 COIL 9.83UH SMD Eaton - Electronics Division	550	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	9.83 µH	±20%	2.1 A	1.05 A	0.235" (5.97mm)	-	-	39.3 µH	45mOhm Max	179mOhm Max	0.450" L x 0.450" W (11.43mm x 11.43mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX33-2P-R INDUCT ARRAY 2 COIL 32.67UH SMD Eaton - Electronics Division	3,039	-	RFQ	Datasheet	Econo-Pac™	Nonstandard	Tape & Reel (TR)	Active	2	32.67 µH	±20%	1.3 A	650 mA	0.235" (5.97mm)	-	-	130.7 µH	126mOhm Max	503mOhm Max	0.450" L x 0.450" W (11.43mm x 11.43mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX33-2-R INDUCT ARRAY 2 COIL 31.77UH SMD Eaton - Electronics Division	3,585	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	31.77 µH	±20%	1.4 A	700 mA	0.235" (5.97mm)	-	-	127.09 µH	105mOhm Max	420mOhm Max	0.450" L x 0.450" W (11.43mm x 11.43mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX10-4-R INDUCT ARRAY 2 COIL 9.6UH SMD Eaton - Electronics Division	9,613	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	9.6 µH	±20%	3.4 A	1.7 A	0.250" (6.35mm)	-	-	38.42 µH	19mOhm Max	78mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX100-2-R INDUCT ARRAY 2 COIL 99.45UH SMD Eaton - Electronics Division	1,017	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	99.45 µH	±20%	630 mA	320 mA	0.235" (5.97mm)	-	-	397.81 µH	457mOhm Max	1.828Ohm Max	0.450" L x 0.450" W (11.43mm x 11.43mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX10-1-R INDUCT ARRAY 2 COIL 10UH SMD Eaton - Electronics Division	834	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	10 µH	±20%	1.9 A	950 mA	0.165" (4.19mm)	-	-	40 µH	44mOhm Max	176mOhm Max	0.450" L x 0.450" W (11.43mm x 11.43mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX10-4A-R INDUCT ARRAY 2 COIL 10.53UH SMD Eaton - Electronics Division	1,754	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Active	2	10.53 µH	±25%	4.67 A	2.33 A	0.250" (6.35mm)	4.09 A	2.05 A	42.11 µH	20mOhm Max	81mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX10-2-R INDUCT ARRAY 2 COIL 10.58UH SMD Eaton - Electronics Division	300	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	10.58 µH	±20%	2.5 A	1.25 A	0.235" (5.97mm)	-	-	42.3 µH	31mOhm Max	125mOhm Max	0.450" L x 0.450" W (11.43mm x 11.43mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX33-3-R INDUCT ARRAY 2 COIL 32.86UH SMD Eaton - Electronics Division	818	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	32.86 µH	±20%	960 mA	480 mA	0.190" (4.83mm)	-	-	131.42 µH	83mOhm Max	331mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C

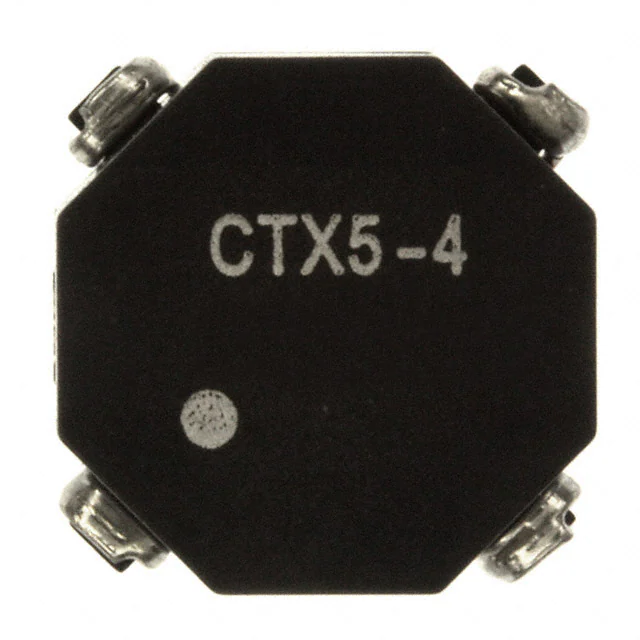

CTX5-4-R INDUCT ARRAY 2 COIL 4.9UH SMD Eaton - Electronics Division	2,026	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	4.9 µH	±20%	4.4 A	2.2 A	0.250" (6.35mm)	-	-	19.6 µH	14mOhm Max	56mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C

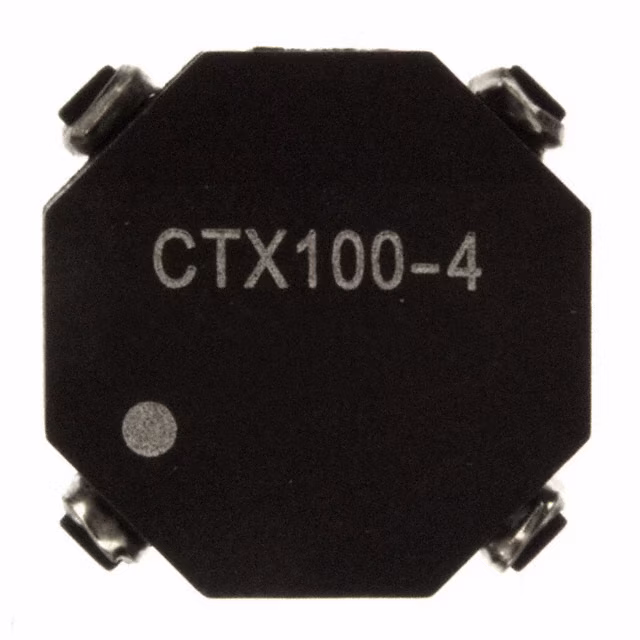

CTX100-4-R INDUCT ARRAY 2 COIL 99.23UH SMD Eaton - Electronics Division	1,147	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	99.23 µH	±20%	920 mA	460 mA	0.250" (6.35mm)	-	-	396.9 µH	302mOhm Max	1.21Ohm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX150-4-R INDUCT ARRAY 2 COIL 148.23UH SMD Eaton - Electronics Division	850	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	148.23 µH	±20%	820 mA	410 mA	0.250" (6.35mm)	-	-	592.9 µH	372mOhm Max	1.488Ohm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
DRQ73-6R8-R INDUCT ARRAY 2 COIL 6.48UH SMD Eaton - Electronics Division	10,424	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	6.48 µH	±20%	2.55 A	1.28 A	0.140" (3.55mm)	3.12 A	1.56 A	25.92 µH	43.5mOhm	174.2mOhm	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C

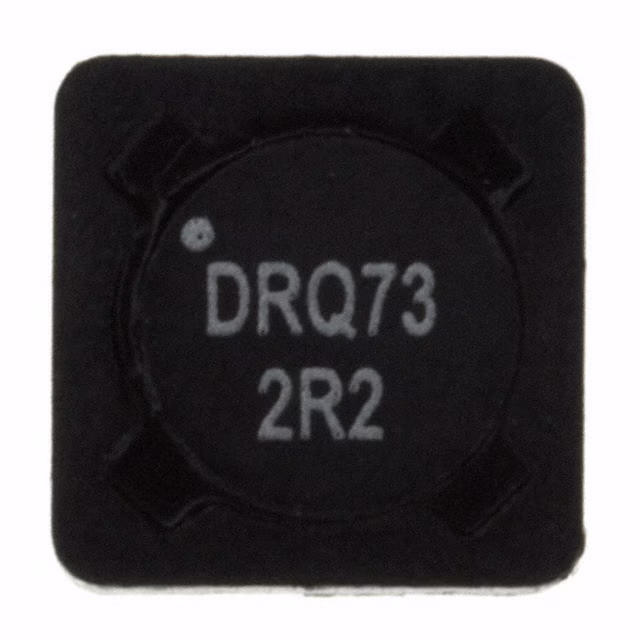

DRQ73-2R2-R INDUCT ARRAY 2 COIL 2.07UH SMD Eaton - Electronics Division	10,240	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	2.07 µH	±20%	4.11 A	2.06 A	0.140" (3.55mm)	5.52 A	2.76 A	8.28 µH	16.7mOhm	66.9mOhm	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
DRQ73-220-R INDUCT ARRAY 2 COIL 22.65UH SMD Eaton - Electronics Division	1,350	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	22.65 µH	±20%	1.62 A	811 mA	0.140" (3.55mm)	1.67 A	830 mA	90.6 µH	107mOhm	429mOhm	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C

Total 1194 Record«Prev12 3 4...60 Next»
