Home > Products > Inductors, Coils, Chokes > Arrays, Signal Transformers

Arrays, Signal Transformers

Manufacturer	Series	Package/Case	Packaging	Part Status	Number of Coils	Inductance - Connected In Parallel	Tolerance	Current Rating - Parallel	Current Rating - Series	Height	Current Saturation - Parallel	Current Saturation - Series	Inductance - Connected In Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Size / Dimension	Shielding	Mounting Style	Ratings	Operating Temperature
Allied Components International Amgis, LLC Bourns Inc. Central Technologies COILCRAFT Delevan Eaton - Electronics Division EPCOS - TDK Electronics Gowanda Hammond Manufacturing ITG Electronics, Inc. Pulse Electronics Signal Transformer Sprague-Goodman Sumida America Components Inc. Talema TT Electronics / BI Technologies VACUUMSCHMELZE GmbH & Co. KG. Vishay Dale Würth Elektronik

Reset All

Apply All

Result

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Part Status	Number of Coils	Inductance - Connected In Parallel	Tolerance	Current Rating - Parallel	Current Rating - Series	Height	Current Saturation - Parallel	Current Saturation - Series	Inductance - Connected In Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Size / Dimension	Shielding	Mounting Style	Ratings	Operating Temperature
CTX25-4A-R INDUCT ARRAY 2 COIL 25.14UH SMD Eaton - Electronics Division	1,142	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Active	2	25.14 µH	±25%	3.02 A	1.51 A	0.250" (6.35mm)	2.65 A	1.32 A	100.51 µH	48mOhm Max	193mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C

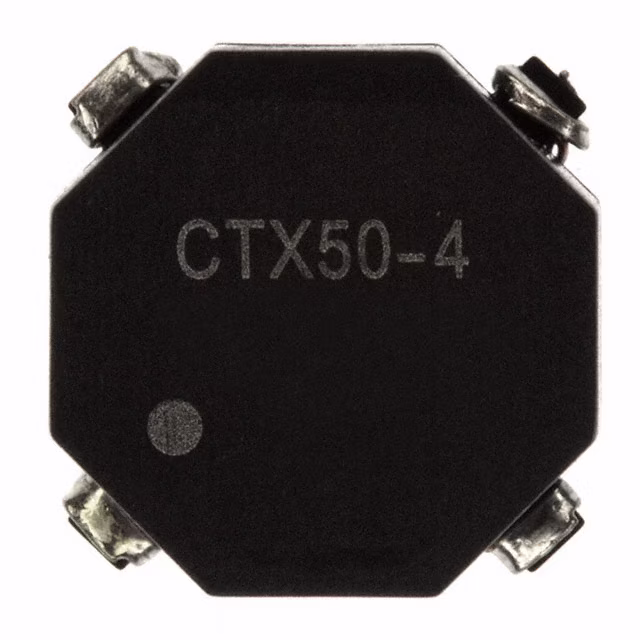

CTX50-4-R INDUCT ARRAY 2 COIL 50.18UH SMD Eaton - Electronics Division	987	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	50.18 µH	±20%	1.5 A	750 mA	0.250" (6.35mm)	-	-	200.7 µH	111mOhm Max	443mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX33-4-R INDUCT ARRAY 2 COIL 33.12UH SMD Eaton - Electronics Division	1,118	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	33.12 µH	±20%	1.8 A	900 mA	0.250" (6.35mm)	-	-	132.5 µH	72mOhm Max	287mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C

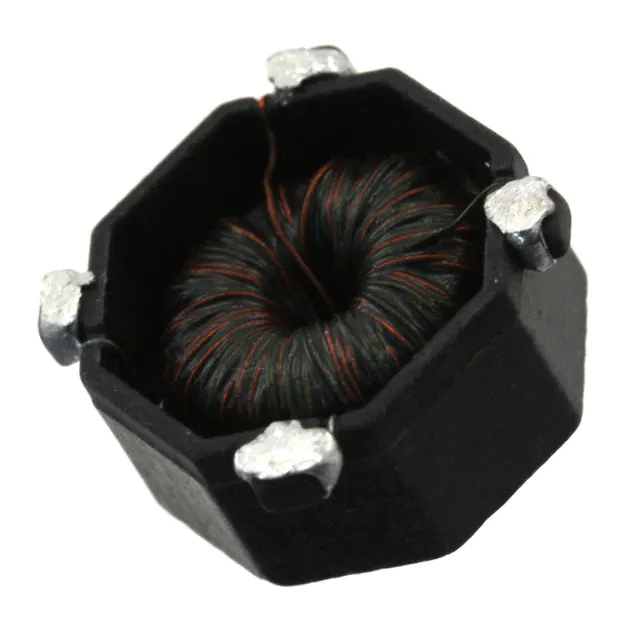

CTX200-4-R INDUCT ARRAY 2 COIL 200.7UH SMD Eaton - Electronics Division	393	-	RFQ	Datasheet	OCTA-PAC®	Nonstandard	Tape & Reel (TR)	Active	2	200.7 µH	±20%	640 mA	320 mA	0.250" (6.35mm)	-	-	802.82 µH	545mOhm Max	2.18Ohm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
ERUC23-1R4K SMT FLAT WIRE COUPLED INDUCTOR, EPCOS - TDK Electronics	617	-	RFQ	Datasheet	ERUC23	Nonstandard, 4 Lead	Tape & Reel (TR)	Active	2	2.6 µH	±10%	-	-	0.563" (14.30mm)	88 A	44 A	10.4 µH	-	-	1.055" L x 0.543" W (26.80mm x 13.80mm)	Unshielded	Surface Mount	-	-40°C ~ 150°C

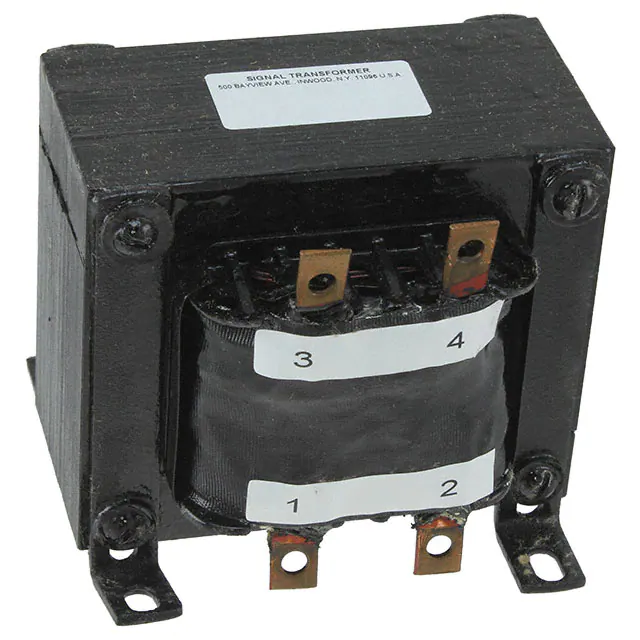

CL-25-50 INDUCT ARRAY 2COIL 300UH CHA MNT Signal Transformer	30	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	300 µH	-	50 A	25 A	3.374" (85.70mm)	-	-	1.2 mH	3mOhm	12mOhm	3.870" L x 3.374" W (98.30mm x 85.70mm)	Unshielded	Chassis Mount	-	-
SRF0703-1R0M INDUCT ARRAY 2 COIL 1UH SMD Bourns Inc.	13,613	-	RFQ	Datasheet	SRF0703	Nonstandard	Tape & Reel (TR)	Active	2	1 µH	±20%	5.25 A	2.63 A	0.142" (3.60mm)	7.97 A	3.99 A	4 µH	13.5mOhm Max	72mOhm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
SRF0703-821M INDUCT ARRAY 2 COIL 820UH SMD Bourns Inc.	9,221	-	RFQ	Datasheet	SRF0703	Nonstandard	Tape & Reel (TR)	Active	2	820 µH	±20%	270 mA	134 mA	0.142" (3.60mm)	280 mA	140 mA	3.28 mH	5.01Ohm Max	20.07Ohm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
SRF0703-681M INDUCT ARRAY 2 COIL 680UH SMD Bourns Inc.	5,291	-	RFQ	Datasheet	SRF0703	Nonstandard	Tape & Reel (TR)	Active	2	680 µH	±20%	290 mA	143 mA	0.142" (3.60mm)	310 mA	150 mA	2.72 mH	3.96Ohm Max	16.17Ohm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
SRF0703-680M INDUCT ARRAY 2 COIL 68UH SMD Bourns Inc.	5,176	-	RFQ	Datasheet	SRF0703	Nonstandard	Tape & Reel (TR)	Active	2	68 µH	±20%	890 mA	444 mA	0.142" (3.60mm)	960 mA	480 mA	272 µH	507mOhm Max	1.92Ohm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
SRF0703-6R8M INDUCT ARRAY 2 COIL 6.8UH SMD Bourns Inc.	3,589	-	RFQ	Datasheet	SRF0703	Nonstandard	Tape & Reel (TR)	Active	2	6.8 µH	±20%	2.55 A	1.28 A	0.142" (3.60mm)	3.12 A	1.56 A	27.2 µH	65.8mOhm Max	285mOhm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
SRF0703-331M INDUCT ARRAY 2 COIL 330UH SMD Bourns Inc.	3,460	-	RFQ	Datasheet	SRF0703	Nonstandard	Tape & Reel (TR)	Active	2	330 µH	±20%	420 mA	211 mA	0.142" (3.60mm)	440 mA	220 mA	1.32 mH	2.16Ohm Max	8.25Ohm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
SRF0703A-100M INDUCT ARRAY 2 COIL 10UH SMD Bourns Inc.	11,592	-	RFQ	Datasheet	SRF0703A	Nonstandard	Tape & Reel (TR)	Active	2	10 µH	±20%	2.08 A	1.04 A	0.142" (3.60mm)	2.47 A	1.24 A	39.6 µH	82.6mOhm Max	342mOhm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	AEC-Q200	-40°C ~ 125°C
SRF0703A-101M INDUCT ARRAY 2 COIL 100UH SMD Bourns Inc.	5,881	-	RFQ	Datasheet	SRF0703A	Nonstandard	Tape & Reel (TR)	Active	2	100 µH	±20%	730 mA	367 mA	0.142" (3.60mm)	790 mA	390 mA	397.6 µH	715mOhm Max	2.64Ohm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	AEC-Q200	-40°C ~ 125°C
SRF0703A-330M INDUCT ARRAY 2 COIL 33UH SMD Bourns Inc.	5,734	-	RFQ	Datasheet	SRF0703A	Nonstandard	Tape & Reel (TR)	Active	2	33 µH	±20%	1.31 A	653 mA	0.142" (3.60mm)	1.35 A	680 mA	140.5 µH	240mOhm Max	1Ohm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	AEC-Q200	-40°C ~ 125°C
SRF0703A-220M INDUCT ARRAY 2 COIL 22UH SMD Bourns Inc.	3,293	-	RFQ	Datasheet	SRF0703A	Nonstandard	Tape & Reel (TR)	Active	2	22 µH	±20%	1.62 A	811 mA	0.142" (3.60mm)	1.67 A	830 mA	89.5 µH	150mOhm Max	620mOhm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	AEC-Q200	-40°C ~ 125°C
SRF0703-R33M INDUCT ARRAY 2 COIL 330NH SMD Bourns Inc.	1,413	-	RFQ	Datasheet	SRF0703	Nonstandard	Tape & Reel (TR)	Active	2	330 nH	±20%	6.19 A	3.1 A	0.142" (3.60mm)	14.4 A	7.18 A	1.32 µH	9.2mOhm Max	40mOhm Max	0.299" L x 0.299" W (7.60mm x 7.60mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
B82472D6333M000 INDUCT ARRAY 2 COIL 33UH SMD EPCOS - TDK Electronics	10,485	-	RFQ	Datasheet	B82472D6	Nonstandard	Tape & Reel (TR)	Active	2	33 µH	±20%	-	-	0.189" (4.80mm)	2 A	1 A	132 µH	145mOhm Max	580mOhm Max	0.287" L x 0.287" W (7.30mm x 7.30mm)	Shielded	Surface Mount	AEC-Q200	-55°C ~ 150°C

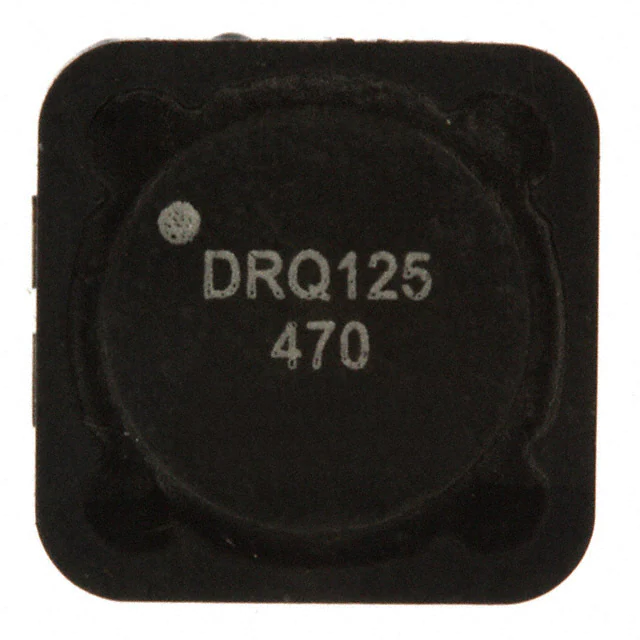

DRQ125-470-R INDUCT ARRAY 2 COIL 47.47UH SMD Eaton - Electronics Division	2,292	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	47.47 µH	±20%	2.71 A	1.35 A	0.236" (6.00mm)	3.24 A	1.62 A	189.9 µH	74mOhm	297mOhm	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C

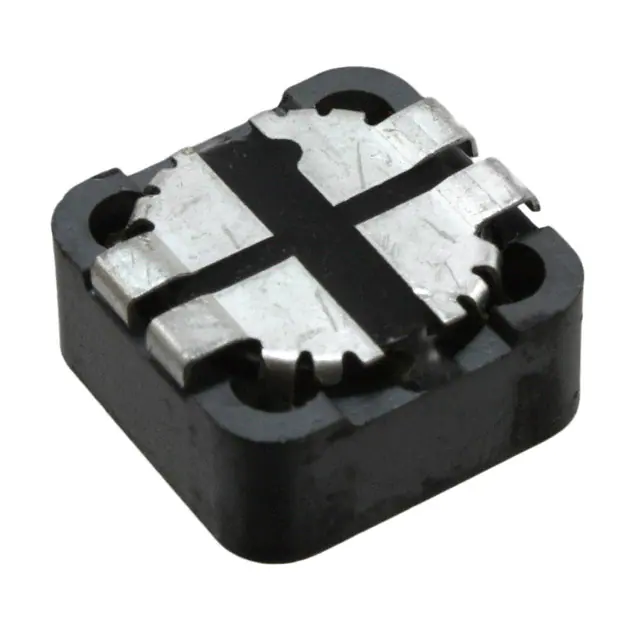

DRQ125-3R3-R INDUCT ARRAY 2 COIL 3.084UH SMD Eaton - Electronics Division	572	-	RFQ	Datasheet	DRQ	Nonstandard	Tape & Reel (TR)	Active	2	3.084 µH	±20%	9.26 A	4.63 A	0.236" (6.00mm)	12.7 A	6.35 A	12.34 µH	6.3mOhm	25.3mOhm	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C

Total 1194 Record«Prev 1 2 3 4 567 8 9...60 Next»
