Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Supplier Device Package | Shielding | DC Resistance (DCR) | Inductance | Q @ Freq | Frequency - Self Resonant | Mounting Style | Ratings | Size / Dimension | Features | Operating Temperature | Inductance Frequency - Test | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLF10040T-470M-DFIXED IND 47UH 1.3A 150 MOHM SMD |
1,287 | - |
|
Datasheet |
CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.9A | - | Shielded | 150mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.394" L x 0.382" W (10.00mm x 9.70mm) | - | -40°C ~ 150°C | 100 kHz | 0.161" (4.10mm) |
|
SPM5030T-3R3MFIXED IND 3.3UH 6A 29.48MOHM SMD |
911 | - |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 6 A | 4.3A | - | Shielded | 29.48mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
9230-72-RCFIXED IND 150UH 85MA 15 OHM TH |
846 | - |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | ±10% | 85 mA | - | - | Unshielded | 15Ohm Max | 150 µH | 30 @ 790kHz | 11MHz | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - | -55°C ~ 125°C | 790 kHz | - |
|
SPM6530T-150M-HZFIXED IND 15UH 3.3A 119.9MOHM SM |
661 | - |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 3.3 A | 2.2A | - | Shielded | 119.9mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
IHLP4040DZER150M8AFIXED IND 15UH 5.1A 50.29MOHM SM |
465 | - |
|
Datasheet |
IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | ±20% | 5.1 A | 7.7A | 4040 | Shielded | 50.29mOhm Max | 15 µH | - | 10.4MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | - | -55°C ~ 180°C | 100 kHz | 0.157" (4.00mm) |
|
|
SPM5030T-4R7MFIXED IND 4.7UH 4.7A 49.5MOHM SM |
191 | - |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 4.7 A | 3A | - | Shielded | 49.5mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
FP0906R1-R30-RFIXED IND 300NH 51A 0.29MOHM SMD |
10,154 | - |
|
Datasheet |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 51 A | 27.5A | - | Unshielded | 0.29mOhm | 300 nH | - | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
IHLE2525CDER150M5AIHLE-2525CD-5A 15 20% ER E3 |
2,150 | - |
|
Datasheet |
IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 2.9 A | 2.8A | Nonstandard, 4 Lead | Shielded | 127mOhm Max | 15 µH | - | 10.4MHz | Surface Mount | AEC-Q200 | 0.284" L x 0.280" W (7.21mm x 7.12mm) | - | -55°C ~ 155°C | 100 kHz | 0.132" (3.35mm) |
|
744025330FIXED IND 33UH 400MA 960MOHM SMD |
1,950 | - |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 400 mA | 620mA | 2828 | Shielded | 960mOhm Max | 33 µH | - | 12MHz | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CMLE105T-6R8MSFIXED IND 6.8UH 9A 16.3 MOHM SMD |
1,756 | - |
|
Datasheet |
CMLE105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 9 A | 12A | - | Shielded | 16.3mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
CMLE105T-1R0MSFIXED IND 1UH 25.5A 2.5 MOHM SMD |
1,700 | - |
|
Datasheet |
CMLE105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | ±20% | 25.5 A | 36A | - | Shielded | 2.5mOhm Max | 1 µH | - | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

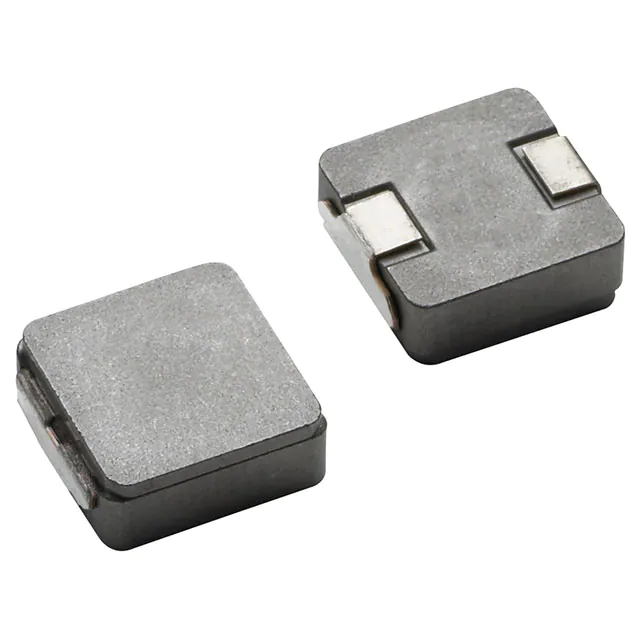

IHLP4040DZER220M1AIHLP-4040DZ-1A 22 20% ER E3 |
983 | - |
|
Datasheet |
IHLP-4040DZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 5 A | 4.5A | - | Shielded | 66mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | - | -55°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
PGL6189.500HLTINDUCTOR PWR BEAD 50NH 148A |
537 | - |
|
Datasheet |
PGL6189.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | ±15% | 80 A | 148A | - | Unshielded | 0.04mOhm | 50 nH | - | - | Surface Mount | - | 0.394" L x 0.327" W (10.00mm x 8.30mm) | - | -40°C ~ 130°C | 100 kHz | 0.315" (8.00mm) |
|
|
744025006FIXED IND 6.8UH 1.1A 165MOHM SMD |
457 | - |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.3A | 2828 | Shielded | 165mOhm Max | 6.8 µH | - | 59MHz | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
FP0705R2-R07-RFIXED IND 72NH 38A 0.32 MOHM SMD |
341 | - |
|
Datasheet |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 38 A | 65A | - | Unshielded | 0.32mOhm | 72 nH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.195" (4.95mm) |
|
SRP5030CA-R56MFIXED IND 560NH 17.7A 4.52 MOHM |
4,485 | - |
|
Datasheet |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 17.7 A | 22.2A | - | Shielded | 4.52mOhm Max | 560 nH | - | 73MHz | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
|
SRP5030CA-1R8MFIXED IND 1.8UH 10.1A 12.7 MOHM |
4,392 | - |
|
Datasheet |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 10.1 A | 12.3A | - | Shielded | 12.7mOhm Max | 1.8 µH | - | 36MHz | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
PCMB104T-1R5MSFIXED IND 1.5UH 16A 4.2 MOHM SMD |
3,915 | - |
|
Datasheet |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | ±20% | 16 A | 32A | - | Unshielded | 4.2mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | - | - | 100 kHz | 0.150" (3.80mm) |
|
|
SRP5030CA-R60MFIXED IND 600NH 17.7A 4.52 MOHM |
3,251 | - |
|
Datasheet |
SRP5030CA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 17.7 A | 22A | - | Shielded | 4.52mOhm Max | 600 nH | - | 68MHz | Surface Mount | AEC-Q200 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | - | -55°C ~ 155°C | 100 kHz | 0.122" (3.10mm) |
|
|
SPM6550T-1R0M-HZFIXED IND 1UH 17.9A 4.95MOHM SMD |
2,285 | - |
|
Datasheet |
SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 17.9 A | 11.8A | - | Shielded | 4.95mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
