The MCP79400 is a low-power I²C RTCC that tracks seconds, minutes, hours, day-of-week, date, month, and year, with leap-year compensation up to year 2399 and selectable 12/24-hour formats. It is designed for embedded systems that require reliable real-time clock functionality and event logging.

The device features automatic switchover to battery backup. When the primary supply is removed and a backup source is present, timekeeping and SRAM contents are preserved, and the transition events are recorded using a power-fail timestamp. The on-chip protected EEPROM (8 bytes) requires a specific unlock sequence, helping safeguard critical data.

Variant note: MCP79400 provides an unprogrammed protected EEPROM. MCP79401 and MCP79402 variants include factory-programmed EUI-48™ and EUI-64™ identifiers respectively.

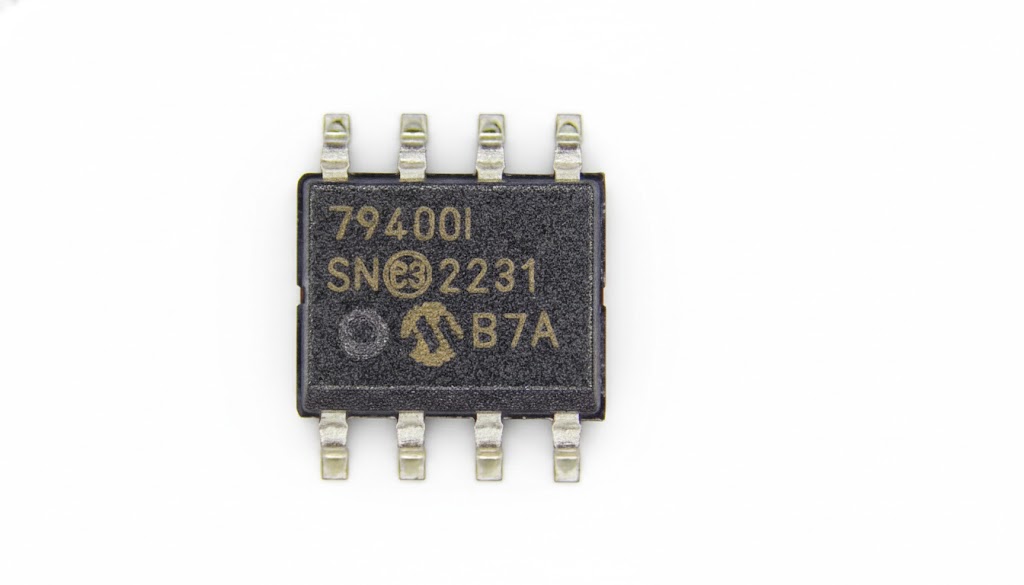

MCP79400-I/SN denotes the Industrial temperature grade supplied in an SN package, which is an 8-lead SOIC (3.90 mm body) surface-mount package. Always verify land pattern and mechanical dimensions using the official Microchip package drawing.

The SOIC-8 pinout integrates crystal connections, I²C interface pins, a backup supply input, and a multifunction output for alarm or clock signaling.

• X1 / X2: 32.768 kHz crystal connections
• VBAT: Backup battery supply input
• VSS: Ground
• VCC: Main power supply
• MFP: Multifunction open-drain output
• SCL: I²C serial clock
• SDA: I²C serial data

Devices within the MCP7940X family share the same electrical and pin-compatible design, with differences primarily in EEPROM programming.

• MCP79401-I/SN - Same family; factory-programmed EUI-48™ identifier
• MCP79402-I/SN - Same family; factory-programmed EUI-64™ identifier
• DS1307ZN+ - Basic I²C RTC (verify feature set and voltage compatibility)
• PCF8563T/F4,112 - Low-power I²C RTC (confirm register behavior and backup scheme)

Note: Always verify register map, timing behavior, and PCB footprint before approving substitutes in production designs.
