Home > Products > Inductors, Coils, Chokes > Arrays, Signal Transformers

Arrays, Signal Transformers

Manufacturer	Series	Package/Case	Packaging	Part Status	Number of Coils	Inductance - Connected In Parallel	Tolerance	Current Rating - Parallel	Current Rating - Series	Height	Current Saturation - Parallel	Current Saturation - Series	Inductance - Connected In Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Size / Dimension	Shielding	Mounting Style	Ratings	Operating Temperature
Allied Components International Amgis, LLC Bourns Inc. Central Technologies COILCRAFT Delevan Eaton - Electronics Division EPCOS - TDK Electronics Gowanda Hammond Manufacturing ITG Electronics, Inc. Pulse Electronics Signal Transformer Sprague-Goodman Sumida America Components Inc. Talema TT Electronics / BI Technologies VACUUMSCHMELZE GmbH & Co. KG. Vishay Dale Würth Elektronik

Reset All

Apply All

Result

Mfr. Part #	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Part Status	Number of Coils	Inductance - Connected In Parallel	Tolerance	Current Rating - Parallel	Current Rating - Series	Height	Current Saturation - Parallel	Current Saturation - Series	Inductance - Connected In Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Size / Dimension	Shielding	Mounting Style	Ratings	Operating Temperature
CTX5-2A-R INDUCT ARRAY 2 COIL 5.06UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Obsolete	2	5.06 µH	±25%	4.34 A	2.17 A	0.235" (5.97mm)	4.69 A	2.34 A	20.22 µH	21mOhm Max	84mOhm Max	0.450" L x 0.450" W (11.43mm x 11.43mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX8-2A-R INDUCT ARRAY 2 COIL 7.9UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Obsolete	2	7.9 µH	±25%	3.5 A	1.75 A	0.235" (5.97mm)	3.75 A	1.88 A	31.6 µH	32mOhm Max	129mOhm Max	0.450" L x 0.450" W (11.43mm x 11.43mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX10-3A-R INDUCT ARRAY 2 COIL 9.68UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Obsolete	2	9.68 µH	±25%	3.64 A	1.82 A	0.190" (4.83mm)	3 A	1.5 A	38.7 µH	32mOhm Max	126mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX33-3A-R INDUCT ARRAY 2 COIL 33.71UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Obsolete	2	33.71 µH	±25%	1.93 A	960 mA	0.190" (4.83mm)	1.61 A	800 mA	134.8 µH	112mOhm Max	449mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX50-3A-R INDUCT ARRAY 2 COIL 49.71UH SMD Eaton - Electronics Division	-	RFQ	Datasheet	OCTA-PAC® PLUS	Nonstandard	Tape & Reel (TR)	Obsolete	2	49.71 µH	±25%	1.56 A	780 mA	0.190" (4.83mm)	1.32 A	660 mA	198.8 µH	171mOhm Max	686mOhm Max	0.550" L x 0.550" W (13.97mm x 13.97mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
CTX02-13665 INDUCT ARRAY 2 COIL SMD Eaton - Electronics Division	-	RFQ	Datasheet	OCTA-PAC®	12-SMD, Gull Wing	Tape & Reel (TR)	Obsolete	2	-	±20%	-	-	0.291" (7.40mm)	-	-	1.254 mH	-	-	0.634" L x 0.661" W (16.10mm x 16.80mm)	Unshielded	Surface Mount	-	-40°C ~ 85°C
PF0553.682NLT INDUCT ARRAY 2 COIL 7.4UH SMD Pulse Electronics	-	RFQ	Datasheet	PF0553NL	Nonstandard	Tape & Reel (TR)	Active	2	7.4 µH	±20%	7.2 A	3.6 A	0.315" (8.00mm)	13 A	6.6 A	30 µH	12mOhm Max	46mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
PF0552.222NLT INDUCT ARRAY 2 COIL 2.2UH SMD Pulse Electronics	-	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	2.2 µH	±20%	11.1 A	5.6 A	0.236" (6.00mm)	15 A	7.5 A	8.8 µH	3.9mOhm Max	16mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
PF0553.471NLT INDUCT ARRAY 2 COIL 430NH SMD Pulse Electronics	-	RFQ	Datasheet	PF0553NL	Nonstandard	Tape & Reel (TR)	Active	2	430 nH	±20%	17 A	9 A	0.315" (8.00mm)	56 A	28 A	1.7 µH	1.6mOhm Max	6.4mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C

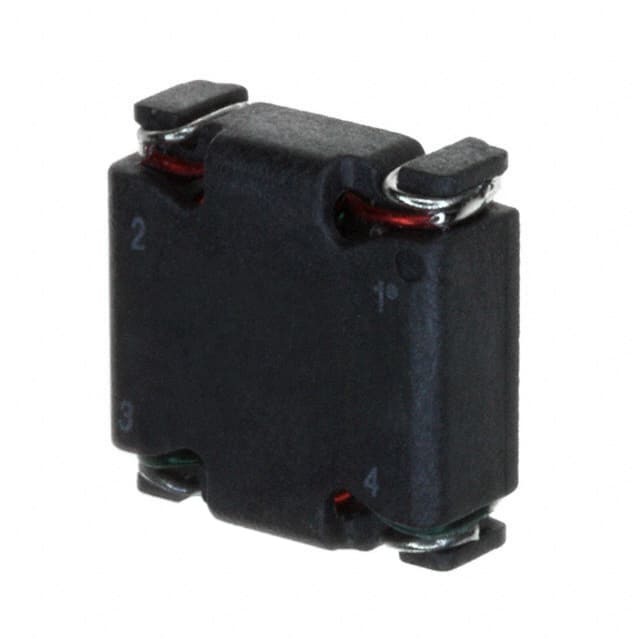

P0179NLT INDUCT ARRAY 2 COIL 22.1UH SMD Pulse Electronics	-	RFQ	Datasheet	Polecat	Nonstandard	Tape & Reel (TR)	Active	2	22.1 µH	±10%	2.6 A	1.3 A	0.215" (5.46mm)	-	-	88.2 µH	66.3mOhm Max	266mOhm Max	0.500" L x 0.500" W (12.70mm x 12.70mm)	Unshielded	Surface Mount	-	-40°C ~ 130°C
P0106NL INDUCT ARRAY 2 COIL 17.3UH SMD Pulse Electronics	-	RFQ	Datasheet	Polecat	6-SMD, Gull Wing	Tube	Obsolete	2	17.3 µH	±20%	800 mA	400 mA	0.098" (2.49mm)	-	-	69.1 µH	180mOhm Max	720mOhm Max	0.380" L x 0.430" W (9.65mm x 10.92mm)	Unshielded	Surface Mount	-	-40°C ~ 130°C
PF0552.682NLT INDUCT ARRAY 2 COIL 6.6UH SMD Pulse Electronics	-	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	6.6 µH	±20%	7.3 A	3.7 A	0.236" (6.00mm)	8.8 A	4.4 A	27 µH	12mOhm Max	48mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
PF0552.822NLT INDUCT ARRAY 2 COIL 8.1UH SMD Pulse Electronics	-	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	8.1 µH	±20%	6.5 A	3.3 A	0.236" (6.00mm)	7.8 A	3.9 A	32 µH	18mOhm Max	66mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
PF0552.102NLT INDUCT ARRAY 2 COIL 910NH SMD Pulse Electronics	-	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	910 nH	±20%	12.9 A	6.5 A	0.236" (6.00mm)	24 A	11.8 A	3.6 µH	2.4mOhm Max	9.6mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
PF0552.332NLT INDUCT ARRAY 2 COIL 3.1UH SMD Pulse Electronics	-	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	3.1 µH	±20%	10.1 A	5 A	0.236" (6.00mm)	12.8 A	6.4 A	12 µH	5.8mOhm Max	23mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
PF0552.152NLT INDUCT ARRAY 2 COIL 1.5UH SMD Pulse Electronics	-	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	1.5 µH	±20%	12.4 A	6.2 A	0.236" (6.00mm)	18.4 A	9.2 A	5.9 µH	2.9mOhm Max	12mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
PF0552.684NLT INDUCT ARRAY 2 COIL 680UH SMD Pulse Electronics	-	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	680 µH	±20%	810 mA	400 mA	0.236" (6.00mm)	860 mA	430 mA	2.7 mH	1Ohm Max	4.1Ohm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
PF0552.224NLT INDUCT ARRAY 2 COIL 220UH SMD Pulse Electronics	-	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	220 µH	±20%	1.4 A	710 mA	0.236" (6.00mm)	1.5 A	760 mA	870 µH	350mOhm Max	1.4Ohm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
PF0552.104NLT INDUCT ARRAY 2 COIL 100UH SMD Pulse Electronics	-	RFQ	Datasheet	PF0552NL	Nonstandard	Tape & Reel (TR)	Active	2	100 µH	±20%	2.2 A	1.1 A	0.236" (6.00mm)	2.2 A	1.1 A	410 µH	160mOhm Max	640mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Shielded	Surface Mount	-	-40°C ~ 125°C
P0599NLT INDUCT ARRAY 2 COIL 2.1UH SMD Pulse Electronics	-	RFQ	Datasheet	HCCI-80	Nonstandard	Tape & Reel (TR)	Active	2	2.1 µH	±15%	38 A	19 A	0.500" (12.70mm)	-	-	8.4 µH	1.3mOhm Max	5.1mOhm Max	1.220" L x 1.000" W (30.99mm x 25.40mm)	Unshielded	Surface Mount	-	-40°C ~ 130°C

Total 1194 Record«Prev 1... 53 54 55 565758 59 60 Next»
