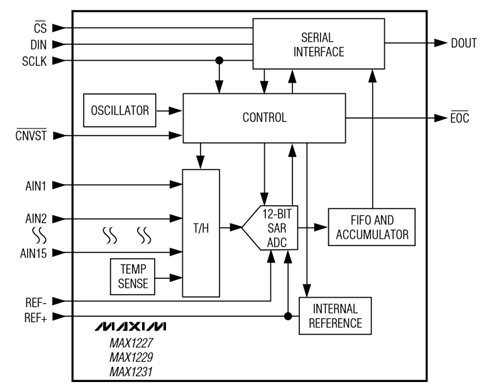

The MAX1231BEEG+T is the 16-channel member of Maxim's MAX1227/MAX1229/MAX1231 family of low-power 12-bit serial ADCs. Each device bundles an analog multiplexer with true-differential track/hold, an internal voltage reference, clock, an internal temperature sensor and a 16-entry FIFO. The MAX1231 provides 16 single-ended or 8 true-differential inputs, software-configurable as unipolar or bipolar, converting at up to 300ksps.

An internal temperature sensor (±0.7°C accuracy) and a 16-entry FIFO with scan mode let the host capture multiple channels - and the die temperature - in one efficient burst, with optional internal averaging to improve effective resolution. The MAX1231 offers ±1 LSB INL and DNL with no missing codes over temperature, and carries an internal 2.5V reference or accepts an external differential reference.

The 10MHz SPI/QSPI/MICROWIRE-compatible 3-wire interface eases connection to microcontrollers and DSPs. Running on a single +3V supply at just 1mA (300ksps), with AutoShutdown between conversions, the MAX1231BEEG+T fits low-power data-acquisition, industrial control, patient-monitoring and instrumentation designs in a compact 24-pin QSOP.

Note: Refer to the official Maxim MAX1227/MAX1229/MAX1231 datasheet for full electrical parameters and curves. Subject to change without notice; verify all parameters before final design.

The MAX1231BEEG+T is supplied in the 24-pin QSOP package (Maxim package code E24, outline 21-0055), indicated by the EEG suffix. The narrow QSOP body packs 16 channels into a small footprint; the 8- and 12-channel siblings (MAX1227/MAX1229) use 16- and 20-pin QSOP, and a 28-pin TQFN-EP version is also offered.

The "+" suffix indicates lead-free, RoHS-compliant finish and the "T" suffix tape-and-reel packing. Standard 24-lead QSOP land patterns and reflow profiles apply; bypass VDD and REF+ (0.1µF to GND) close to the device, and keep analog inputs away from the SCLK line for best noise performance.

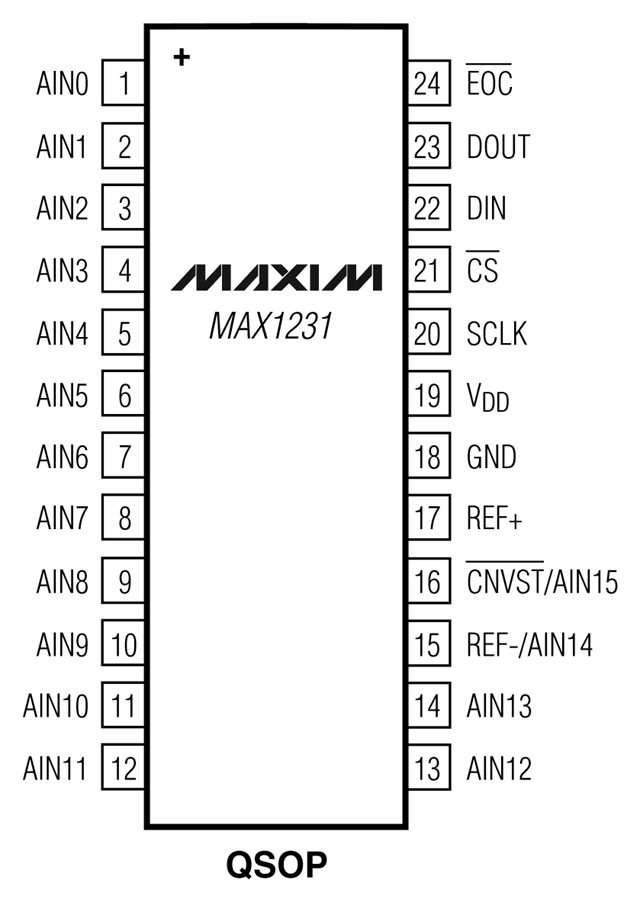

The MAX1231 uses a 24-pin QSOP pinout (top view, pin 1 marked):

• Pins 1-14 - AIN0 to AIN13: Analog input channels 0 to 13.
• Pin 15 - REF-/AIN14: External differential reference negative input, or analog input 14 (set by the setup register).
• Pin 16 - CNVST/AIN15: Active-low conversion-start input, or analog input 15 (set by the setup register).
• Pin 17 - REF+: Reference positive input; bypass 0.1µF to GND.
• Pin 18 - GND / Pin 19 - VDD: Ground and +3V supply (bypass VDD 0.1µF to GND).
• Pin 20 - SCLK / Pin 21 - CS / Pin 22 - DIN / Pin 23 - DOUT / Pin 24 - EOC: Serial clock, chip-select (active low), data in, data out, and end-of-conversion (active low).

The 3-wire serial port (SCLK/CS/DIN/DOUT, plus EOC and optional CNVST) connects to SPI, QSPI or MICROWIRE hosts. Confirm the exact pin assignment against the datasheet image below before layout.
