The MAX13052ESA+T belongs to Maxim's MAX13050/13052/13053/13054 family of pin-compatible, industry-standard high-speed CAN transceivers with extended ±80V fault protection. These devices are the interface between a CAN protocol controller and the physical bus wires of a control-area network, ideal for industrial-network applications where overvoltage protection is required, and are pin-for-pin compatible with the PCA82C250/251.

The MAX13052 supports high-speed operation up to 1Mbps, ISO 11898 compatible, with a dominant TXD timeout that prevents an erroneous controller from clamping the bus. Its slope-control mode programs the transmitter slew rate (40kbps to 500kbps) to lower EMI, while the SPLIT pin provides a 0.5 x V_CC common-mode stabilization output for split-termination networks, improving bus robustness.

Robust protection includes ±80V fault protection on the bus pins, ±8kV IEC61000-4-2 Contact ESD, a common-mode range greater than ±12V, current limiting, short-circuit protection and thermal shutdown. A low-current standby mode (set via RS) lets the device idle while monitoring the bus, making the MAX13052 well suited to DeviceNet, heavy-duty trucks and industrial networks.

Note: Refer to the official Maxim MAX13050-MAX13054 datasheet for full electrical parameters. Subject to change without notice; verify all parameters before final design.

The MAX13052ESA+T is supplied in the 8-pin SO (narrow small-outline) package, indicated by the SA suffix, and is pin-for-pin compatible with the industry-standard PCA82C250/251 footprint. The compact SO suits node boards on industrial CAN, DeviceNet and in-vehicle buses.

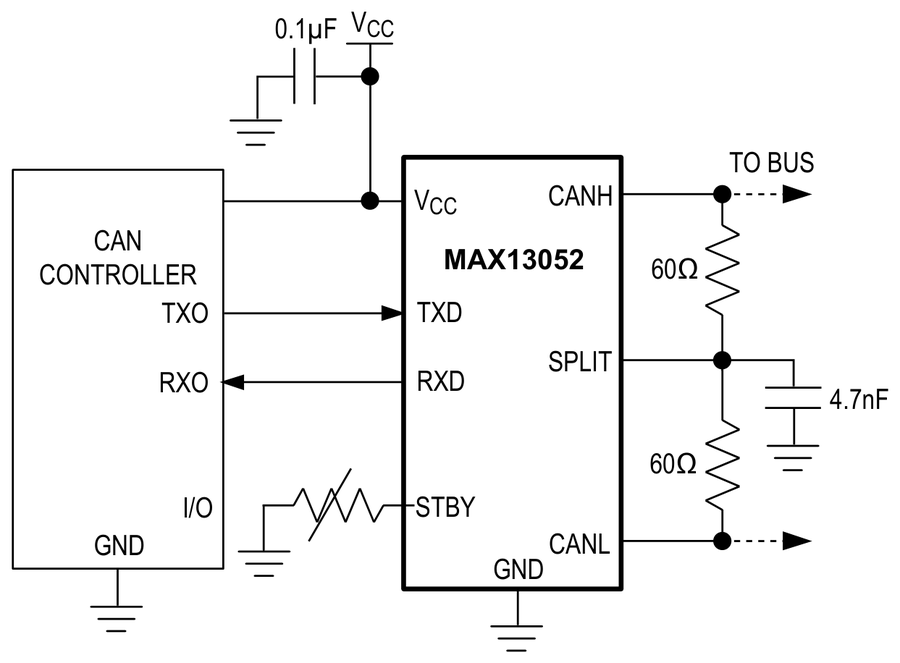

The "+" suffix indicates lead-free, RoHS-compliant finish and the "T" suffix tape-and-reel packing. Standard 8-lead SO land patterns and reflow profiles apply; use split termination (two resistors with the midpoint to the SPLIT pin and a bypass capacitor) for best common-mode performance. The diagram below shows the typical operating circuit.

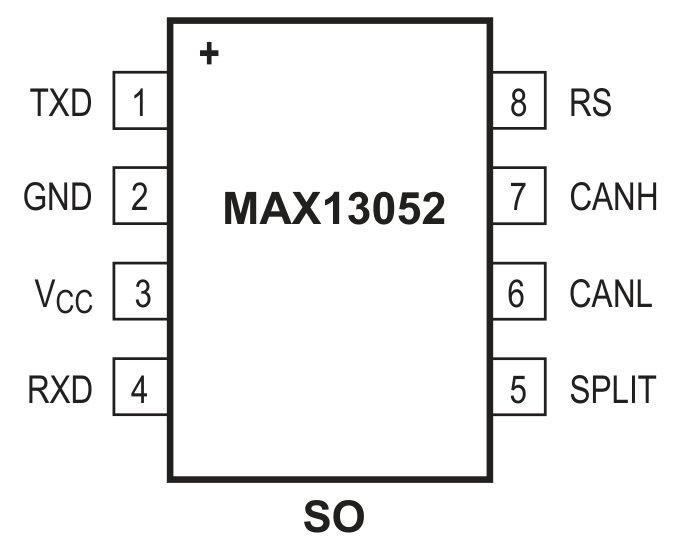

The MAX13052 uses an 8-pin SO pinout (top view):

• Pin 1 - TXD: Transmit data input (from CAN controller; internal 25kΩ pull-up to V_CC).
• Pin 2 - GND: Ground. Pin 3 - VCC: Supply (bypass 0.1µF to GND).
• Pin 4 - RXD: Receive data output (to CAN controller).
• Pin 5 - SPLIT: Common-mode stabilization output (0.5 x V_CC; high-impedance in standby).
• Pin 6 - CANL / Pin 7 - CANH: CAN bus low / high lines (±80V fault-protected).
• Pin 8 - RS: Mode-select input - low = high-speed, resistor to GND = slope control, high = standby.

Connect TXD/RXD to the CAN controller, CANH/CANL to the bus with split termination tied to SPLIT, and RS to pick high-speed/slope-control/standby. Confirm the exact pin assignment against the datasheet image below before layout.
