The MAX13085EESA+T is a +5.0V, ±15kV ESD-protected RS-485/RS-422 transceiver featuring one driver and one receiver for half-duplex communication. It includes fail-safe circuitry that guarantees a logic-high receiver output when the inputs are open or shorted, so the bus stays in a defined state - maintaining full EIA/TIA-485 compatibility.

The receiver outputs a logic-high if all transmitters on a terminated bus are disabled (high impedance), eliminating false transitions. Hot-swap input structures on DE and RE prevent erroneous bus states when a board is hot-plugged. The slew-rate-limited driver reduces EMI and minimizes reflections from improperly terminated cables, supporting error-free data transmission on RS-485 lines.

Extended ±15kV Human Body Model ESD protection on the RS-485 I/O pins (A and B) makes the device rugged for exposed industrial cabling. A low-current shutdown mode saves power when the bus is idle, and up to 256 transceivers can share the bus - suiting utility meters, industrial control, telecom and Profibus networks.

Note: Refer to the official Maxim MAX13085E datasheet for full electrical parameters and data rate. Subject to change without notice; verify all parameters before final design.

The MAX13085EESA+T is supplied in the industry-standard 8-pin SO (narrow small-outline) package, indicated by the ESA suffix. The 8-pin SO is the de-facto footprint for half-duplex RS-485 transceivers, dropping into existing MAX485-style designs.

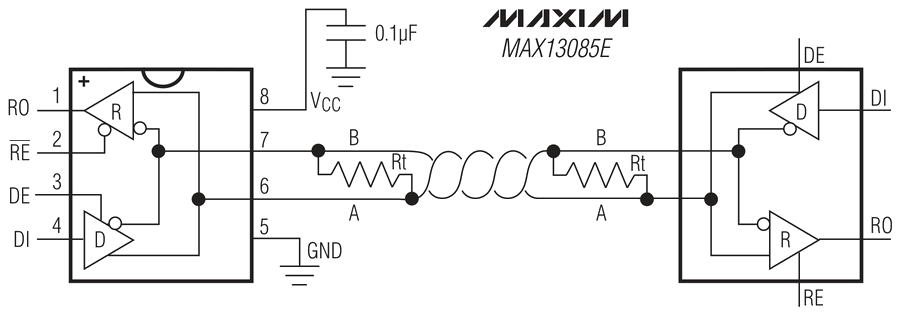

The "+" suffix indicates lead-free, RoHS-compliant finish and the "T" suffix tape-and-reel packing. Standard 8-lead SO land patterns and reflow profiles apply; terminate the A/B bus with the characteristic impedance (e.g. 120Ω) at both ends and bypass VCC with 0.1µF. The diagram below shows the typical operating circuit.

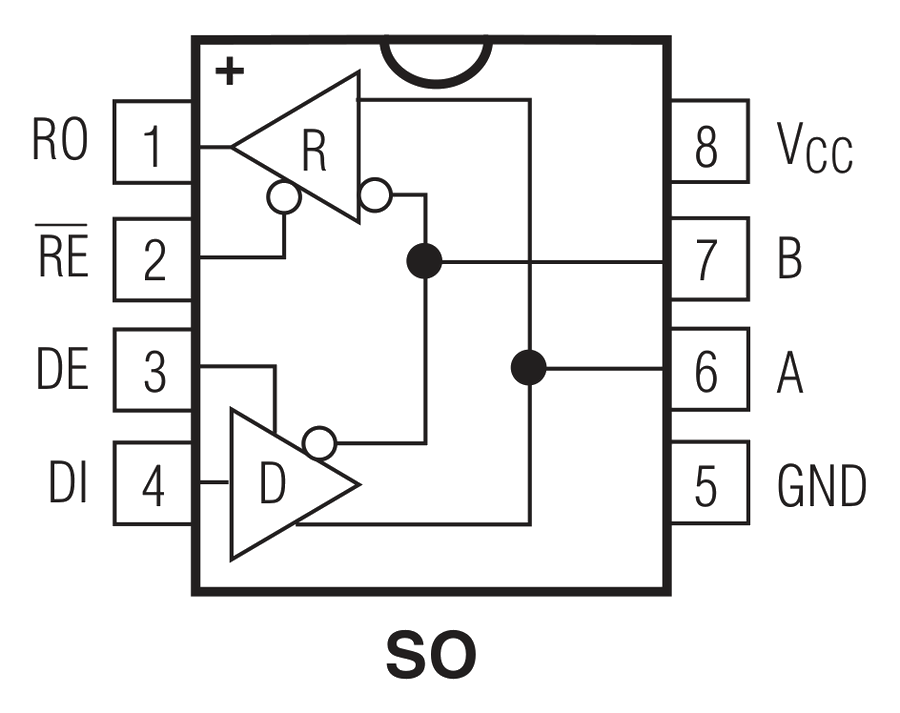

The MAX13085E uses the standard half-duplex RS-485 8-pin SO pinout (top view):

• Pin 1 - RO: Receiver output (when RE is low: A-B ≥ -50mV gives RO high; A-B ≤ -200mV gives RO low).
• Pin 2 - RE: Receiver output enable, active-low; RE low enables RO, RE high tri-states it. Hot-swap input.
• Pin 3 - DE: Driver output enable, active-high; DE high enables the driver, DE low tri-states it. Hot-swap input. (RE high + DE low = shutdown.)
• Pin 4 - DI: Driver input.
• Pin 5 - GND: Ground.
• Pin 6 - A / Pin 7 - B: Non-inverting (A) and inverting (B) receiver inputs / driver outputs - the RS-485 bus pins (±15kV ESD).
• Pin 8 - VCC: +5.0V supply (bypass 0.1µF to GND).

Tie RE and DE together to a single direction-control line for simple half-duplex control, and connect A/B to the twisted-pair bus with end termination. Confirm the exact pin assignment against the datasheet image below before layout.
