LM22676MRX-ADJ/NOPB in Board Level Step Down for Compute Modules

LM22676MRX-ADJ/NOPB belongs in the board power review when a compute module needs a local rail from a higher input bus rather than a tiny low-current regulator. TI describes LM22676 as a 42 V, 3 A SIMPLE SWITCHER step-down voltage regulator, with an input range from 4.5 V to 42 V, a 500 kHz switching frequency and fixed or adjustable output versions. The MRX-ADJ/NOPB orderable name points the review toward the adjustable version and the exact package and suffix used by purchasing, layout and assembly.

That makes the part a practical fit for a carrier board, AI gateway, industrial edge node or embedded compute shelf that has a 12 V or 24 V input rail and needs a local 5 V, 3.3 V or intermediate support rail. It is not the same job as a high-current core VRM. The LM22676 class rail is usually a board-level utility rail: enough current for module support circuits, I/O power, interface logic, small peripherals or a pre-regulated path, but still simple enough to keep the design readable and serviceable.

Start With the Rail Job

The first question is the rail job, not the regulator name. A compute module board may carry several rails: a high-current core supply, memory rails, I/O rails, sensor rails, fan power, camera power and interface supplies. LM22676MRX-ADJ/NOPB should be placed where a 3 A buck with a wide input range makes sense. If the rail needs tens of amps or tight digital telemetry, use a different class of part. If the rail needs a rugged local conversion from a higher bus with clear passives and straightforward control, this part enters the short list.

Define the source bus first. Many edge compute products begin with a 12 V adapter, a 24 V industrial bus or an intermediate backplane rail. A 42 V maximum input gives room for those systems when the surge and transient environment is handled by the front end. It does not remove the need for input protection, reverse-polarity review, fuse or eFuse policy, surge clamp sizing and input capacitor placement. The buck regulator should see an input that has already been made safe for the board.

Then define the load. A 3 A regulator may power the module support domain, a carrier-board 5 V rail, a 3.3 V interface rail, a small SSD or USB support rail, radio support circuits or local housekeeping loads. Write the expected steady load, startup load, peak load, ambient range and any load release case into the part review. A regulator that looks comfortable at room temperature can run close to its limit when a sealed box warms up and the input voltage sits high.

Use the Adjustable Version Deliberately

The adjustable version is useful because the output can be set with the feedback divider, but that same freedom creates an error path. The divider values, feedback route and reference point have to match the intended rail. A wrong resistor value, long feedback route or noisy injection point can make the output look correct in one condition and drift or chatter in another. Treat the feedback network as part of the regulator, not as a pair of casual resistors.

The feedback node should be short, quiet and connected to the output at a sensible point. Do not route it beside the switch node, the inductor copper or pulsed input returns. If the rail serves a compute module connector, choose a feedback point that reflects the load-side rail after major copper drops, while still keeping the loop stable and the route protected from noise. Add a planned measurement point so first power-up can separate real output error from a probing artifact.

Adjustable output also affects substitutions. A buyer may find another LM22676 variant, another package or a fixed-voltage version and assume it is interchangeable. It may not be. The approved bill of materials should name LM22676MRX-ADJ/NOPB, the feedback divider, the compensation or feed-forward network if used, the package land pattern and the tested output voltage. Any alternate should keep the electrical setting and assembly form in the same review.

Review the Inductor and Diode as Part of the Regulator

The external inductor is a real selection item. Choose it for inductance value, saturation current, heating, DCR, package size, shield style and loss at the selected switching condition. A part that passes current rating on a catalog page can still heat too much near a compute module or saturate during load steps. The inductor should be checked at maximum input voltage, target output voltage, peak load, thermal soak and airflow condition.

The LM22676 data sheet family uses the expected buck support network, including an inductor, input and output capacitors and a catch or rectifier path as required by the device guidance. For the board review, do not treat the diode as an afterthought. Its current rating, reverse voltage, forward drop, package heat path and recovery behavior affect efficiency and thermal rise. A package swap in the diode position can change the hot spot on the board as much as changing the regulator package.

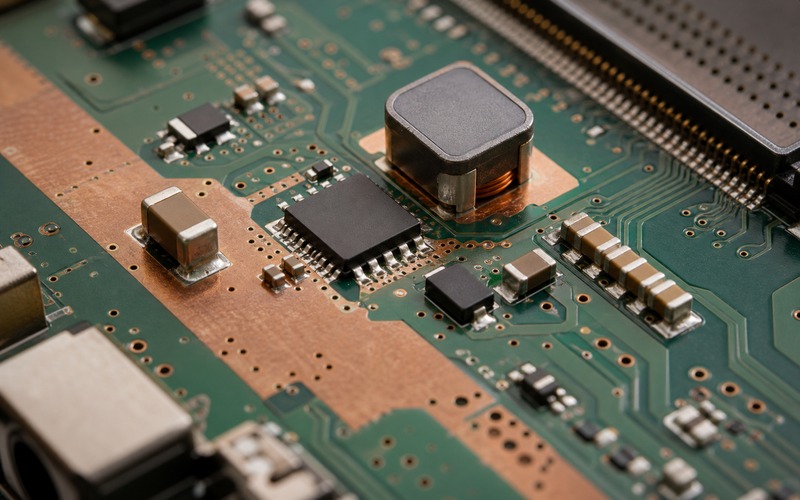

The switch node deserves special attention. Keep the high dv/dt copper compact. Keep sensitive feedback and enable routing away from it. Give the inductor and diode enough copper to move heat without making a large noisy antenna. If an EMI issue appears late, the fix is often layout-related, so the first layout should already leave room for snubber parts or input filtering if the product environment suggests it.

Input and Output Capacitors Decide How Calm the Rail Looks

A regulator with the right headline rating can still produce a noisy board rail if the capacitor network is wrong. The input capacitors handle pulsed current from the source bus and keep that current local to the regulator. Place them tight to the regulator input and ground return, with a low-inductance path. If the board has a long cable or backplane feed, add the required bulk and protection upstream rather than asking the ceramic input bank to handle all cable energy.

The output capacitor bank sets load-step response and ripple together with the inductor and loop behavior. For a compute module carrier, the output rail may travel through a connector before reaching the module. That connector, plane neck-down and via path add impedance. The capacitor mix should be reviewed at the load side as well as the regulator side. Ceramic capacitance under DC bias, ripple current, temperature and aging all change the effective rail support.

Do a physical capacitor review. Count the capacitors on the board, then check where the current flows. A neat row far from the load may look fine in schematic review but fail in a transient test. A smaller set placed close to the rail pins and connector entry can do more useful work than a larger bank tied through a narrow path. The oscilloscope probe point should sit at the regulator output and at the module-side rail so both locations are visible during testing.

Enable and UVLO Set the Start-Up Boundary

TI documentation lists a precision enable pin and adjustable UVLO. Those pins matter on a board that plugs into a larger system. The regulator should start only when the input rail is ready, the upstream protection has settled and any required sequence is safe for the compute module. A loose enable pull-up can make the rail start during a slow input ramp, while an overly high threshold can keep the board off in a valid low-line condition.

Write the start-up condition into the design record. State the input voltage at which the regulator is allowed to turn on, the output ramp expectation, the loads that are present at startup and the rails that must already be valid. If an MCU or power supervisor controls enable, confirm the safe state before firmware runs. If the enable divider sets UVLO, verify the resistor tolerance and leakage behavior across temperature.

Startup testing should include a fast plug-in, a slow ramp, brownout, restart after a short interruption and load already connected at turn-on. A compute module may draw a different startup current when its flash, radios, storage or fans wake in a different order. The regulator approval should include waveforms from those cases, not a single clean bench ramp.

Thermal Margin Comes From the Board

A 3 A regulator rating is only useful when the package, copper, ambient condition and duty cycle support it. LM22676MRX-ADJ/NOPB should be checked in the package and board copper used by the product, rather than a data sheet condition alone. The hot spots include the regulator package, diode, inductor and input capacitors. On a compact compute carrier, those hot spots may sit near a processor module, shield, storage device or enclosure wall.

Thermal review should cover low input voltage, high input voltage, full load, partial load with poor airflow and the real enclosure. High input voltage can change switching loss and diode dissipation. Low input voltage can raise input current. A rail that is efficient at one operating point can shift its heat distribution at another. The board should be measured after heat soak, with airflow and mounting set the way the product ships.

Layout is part of the thermal solution. Use copper areas, thermal vias and short power paths that match the package guidance. Do not make the switch node large in the name of heat spreading. Keep high-current copper wide where it carries DC or pulsed current, and keep noisy copper controlled where it switches. The mechanical designer should know where the rail heat leaves the board.

Noise and EMI Should Be Planned Before the First Board

A 500 kHz switching frequency places the buck above many audio-band concerns while still low enough that layout and filtering remain visible in conducted and radiated noise. The regulator can pass an electrical bench check and still disturb a camera, radio, ADC, audio path or Ethernet PHY if the hot loop, ground return or input cable is poorly controlled.

Mark sensitive circuits before layout. Put the buck section away from high-impedance sensor inputs, precision references, RF feed paths and clock traces. If the compute module connector carries both power and high-speed signals, keep the regulator output path strong while separating noisy switch-node copper from signal escape routes. Add input filtering or a ferrite location if the source bus is shared with noise-sensitive circuits.

EMI fixes become cheaper when the board has footprints ready. A snubber option, input damping part, shield connection or alternate capacitor position can save a board spin. Those options should not be populated by habit, but their pads can be cheap insurance when the product will face a compliance chamber or a harsh industrial installation.

Procurement Has to Preserve the Full Orderable Identity

The approved part name matters. LM22676MRX-ADJ/NOPB carries device family, package, adjustable output option and lead-free suffix information that must stay intact from schematic to ERP to purchase order. Shortening the name to LM22676 or LM22676-ADJ invites confusion with other voltage options, packages or suffixes. The part review should include the exact orderable number and the approved footprints and passives.

Second sourcing should be handled by evidence, not by search category. Another 3 A buck regulator with a wide input range may need a different diode, inductor, compensation network, thermal pad, pinout, enable behavior or package height. If an alternate is needed, approve it as a board change until load-step, thermal, startup, EMI and assembly checks prove it fits.

For long-life compute equipment, keep a short substitution rule in the bill of materials. It should state which parameters are fixed: input range, output rail, current target, package, switching frequency class, enable threshold, external inductor, diode, capacitor network, thermal path and exact output setting. That rule gives purchasing a clear boundary while protecting the design from a casual price swap.

Final LM22676 Selection Checklist

Before LM22676MRX-ADJ/NOPB is approved, confirm the source bus, transient protection, target output voltage, feedback divider, load current, peak current, startup load, enable and UVLO setting, inductor value and saturation margin, diode rating, input capacitor network, output capacitor network, thermal copper, package land pattern, measurement points, EMI options, mechanical clearance and approved alternate policy.

The part is a strong candidate when a compute module board needs a rugged board-level buck from a 12 V, 24 V or similar higher bus into a local support rail. It is a weak fit when the rail needs a high-current core supply, digital power telemetry, extreme efficiency tuning or effortless substitution. Treat the regulator as a physical power circuit: one IC, one inductor, one diode path, real capacitors, real copper and a load that must be measured at the connector or module pins after the board is warm.
