TPS7A4700 for a Low Noise Rail Next to Sensitive Analog

A low-noise rail is chosen by the circuit it feeds. An ADC reference buffer, precision op amp, RF block, audio stage, sensor front end or test-and-measurement input may run from the same nominal voltage as a digital rail, yet see that rail in a different way. A digital load may tolerate ripple, recovery noise and small ground movement. A sensitive analog path can turn the same disturbance into offset, sidebands, noise floor movement or conversion spread. TPS7A4700 belongs in the review when the board needs a clean positive rail next to that kind of analog circuitry.

TI describes TPS7A47 as a positive-voltage, ultra-low-noise low-dropout linear regulator family capable of sourcing a 1 A load. The public product information lists a 3 V to 36 V input range, 4 microvolt RMS output voltage noise across 10 Hz to 100 kHz, 82 dB power-supply ripple rejection at 100 Hz, at least 55 dB PSRR across 10 Hz to 10 MHz, 307 mV dropout at 1 A, an enable pin, fixed current limit, thermal shutdown, and a 5 mm by 5 mm QFN package. For TPS7A4700, the output can be user-programmed up to 20.5 V through a PCB layout method without external feedback resistors or feed-forward capacitors.

Start With the Noise Budget

The first question is not the regulator part number. It is the noise budget of the circuit that uses the rail. An ADC may need the rail noise to stay below the converter input noise across a defined bandwidth. An op amp may need enough rail rejection and headroom to keep offset and distortion stable. An RF or audio stage may care about spectral components that a basic RMS number hides. The rail requirement should name the allowed noise band, load range, voltage tolerance and measurement point.

That budget should be written at the analog load, not at a convenient regulator pin. Plane drop, ground impedance, connector return, capacitor placement and nearby switching copper can change what the load sees. A bench reading at the LDO output pad can look clean while a converter, clock, radio or processor nearby injects noise into the same copper reference.

The product should use the same bandwidth in design and test. TI gives a 10 Hz to 100 kHz noise number for the device. If the application is audio, RF, precision measurement or a slow sensor, its own bandwidth may differ. Record the target band and the probe method so the production board can be compared with the prototype.

Use TPS7A4700 as a Precision Post Regulator

TPS7A4700 is often strongest after a switching converter. The upstream buck or boost creates the efficient intermediate rail. The LDO then reduces residual ripple, blocks part of the supply movement and gives the analog circuit a local quiet source. This approach works when the upstream voltage leaves enough headroom for dropout, when heat is acceptable, and when the layout keeps switching energy away from the quiet side.

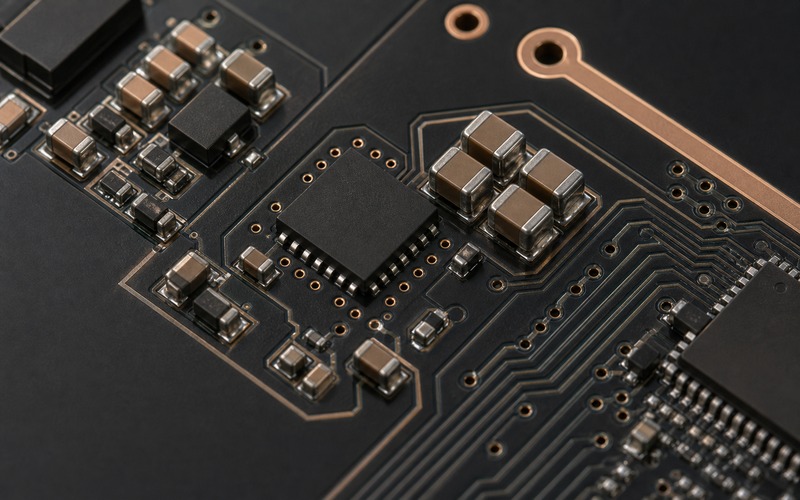

Post regulation should be drawn as a physical boundary on the PCB. The noisy source, LDO input capacitors, regulator package, output capacitor bank, analog load and ground return need a clear path. The board should not place a switching node, high-current motor line, display boost trace or RF PA supply through the same copper island that is supposed to be quiet.

The enable pin can help sequence an analog rail after the upstream supply is stable. It can also let firmware disable the rail during sleep. That timing must match the analog circuit. Some sensor front ends and converters need bias to settle before sampling begins. Some op amp stages need time for output recovery after enable. Treat enable timing as part of analog accuracy, not as a power-save detail.

Check Headroom, Dropout and Dissipation Together

A linear regulator trades voltage headroom for heat. With TPS7A4700, the usable input-to-output gap has to cover dropout at the real load current, input ripple valley, tolerance, temperature and aging. If the upstream converter is set too close to the analog rail, the LDO may drop out during a load step or during low input voltage. Once in dropout, PSRR and noise behavior no longer match the intended clean rail.

Extra headroom raises heat. The loss is the voltage across the LDO multiplied by load current. A 1 A-capable regulator can still run too hot if a high input voltage is dropped to a low analog rail in a compact area. The 5 mm by 5 mm QFN package needs copper, thermal vias and a board stack that can carry heat away from the regulator without warming the sensor, reference or analog input network it is meant to protect.

The approval note should include input voltage range, output target, load current range, dropout margin and thermal result in one table. Separating them can hide the real tradeoff. A larger headroom may improve PSRR margin while failing temperature. A lower headroom may reduce heat while giving up ripple rejection during dips.

Program the Output as Part of the PCB Release

TPS7A4700 supports user-programmable output voltages through the PCB layout method used by TI for this family. That can reduce external feedback parts and feed-forward components, which helps a quiet analog area. It also means the output voltage is tied to the exact board implementation. The layout setting, orderable suffix, assembly option and measured output voltage should be documented together.

If the design changes voltage late, do not treat it as a text edit in the schematic. Check the layout connection, allowed output range, tolerance, start-up behavior and load requirement. A small voltage change can affect sensor bias, ADC full scale, op amp output swing, thermal loss and post-regulator headroom.

Test points should make the programmed rail easy to verify. Add a clean ground reference near the analog load instead of relying on a point near the input connector. If the analog rail is adjusted across board variants, the variant control should name the exact setting and the expected measurement window.

Capacitor Choice Sets Stability and Noise Behavior

Low-noise LDOs are sensitive to their external capacitors. The input capacitor handles source impedance and upstream ripple. The output capacitor supports stability, load response and noise. A noise-reduction or bypass capacitor may be part of the low-noise behavior. The package, dielectric, voltage bias, ESR, ESL, mounting location and temperature behavior all matter.

Use effective capacitance, not catalog capacitance at zero bias. Ceramic capacitors can lose a large portion of value under DC bias, and small package sizes can shift the impedance target. The output capacitor bank in the physical layout should match the tested combination, including voltage rating and package. A sourcing change from one MLCC series to another can move noise or stability even when the nominal value is unchanged.

Place the output capacitor close to the LDO and route the load through a controlled quiet path. Do not put the output bank on the far side of a noisy digital return or through a long necked trace. For precision converters, the rail decoupling at the analog IC should be checked together with the LDO output bank, since both parts of the network shape the rail seen by the die.

PSRR Has a Frequency and Layout Context

PSRR is not one number for every disturbance. TI lists strong low-frequency rejection and a specified rejection range into higher frequency, but the actual board has upstream switching frequency, harmonics, cable noise, digital edges and ground movement. The LDO can reject a portion of input ripple, while layout coupling can inject noise around it.

If the upstream converter runs at a switching frequency inside the sensitive measurement band, the design should measure residual ripple after the LDO at the analog load. If the switching frequency is high, the capacitor impedance and board parasitics may dominate. If the upstream regulator uses pulse skipping at light load, low-frequency ripple or burst behavior can appear. The clean rail should be tested across operating modes, not at one load point.

Keep input and output copper separated by function. The input side may be noisier. The output side should feed the analog load through a quieter island. The ground connection should avoid a loop that lets switching current share the same narrow path as analog return current. A star-like local return can help, but it has to match the board stack and signal path.

Thermal Design Protects Accuracy

Temperature does more than threaten the regulator. It can move reference voltage, sensor offset, op amp bias current, resistor drift and converter gain. A hot LDO next to a precision analog path can defeat the reason for using a quiet rail. The thermal review should include regulator temperature, copper spread, nearby components and the effect on analog performance after warm-up.

Measure with the real enclosure and duty cycle. A board that runs cool on an open bench may warm up near a shield can, sealed housing, display backlight or radio module. The LDO loss changes with input voltage and output current, so test the high input and high load corner rather than a typical lab condition.

Thermal shutdown and current limit protect the part, but the product still needs a controlled response. If the analog rail collapses, firmware may read false sensor data or an ADC may return values that look valid. The system should know when the rail is enabled, settled and inside tolerance before trusting measurements.

Substitution Risk Is Higher on a Quiet Rail

Many regulators can create the same DC voltage. Fewer can create the same noise, PSRR, dropout, thermal and stability behavior on the same PCB. A replacement part may have a compatible current rating and package size while requiring different capacitors, a different bypass network, a different enable threshold or a different thermal pad. For a quiet analog rail, that is not a casual swap.

The approved alternate list should include exact orderable parts, package and pinout checks, capacitor set, voltage-setting method, dropout margin, noise measurement, PSRR evidence, thermal result, enable behavior and load response. If a replacement changes the output network, record it as a board variant with its own test data.

Buyers should receive the approved suffix and the allowed alternates, not a generic phrase such as low-noise LDO. Engineers should keep the measurement setup with the release record so a future part can be compared against the same noise and load conditions.

Final TPS7A4700 Selection Checklist

Before approving TPS7A4700, confirm the exact orderable suffix, input range, output voltage setting, load current, dropout margin, thermal loss, QFN land pattern, input capacitor, output capacitor, bypass network, enable timing, measurement bandwidth, PSRR target, upstream converter ripple, analog load behavior, probe point, ground return, current-limit response and approved alternate boundary.

The part is a strong fit when a sensitive analog rail needs a clean positive supply from an upstream rail and the board can provide the required headroom, capacitor network, quiet layout and heat path. It is a weak fit when the design has no noise budget, no load-side measurement, no thermal margin or no controlled replacement plan. Approve the regulator by the behavior of the analog circuit it powers, not by the DC voltage alone.
