A connected device can have a capable processor, a clean power tree and a radio that passes conducted tests, then fail as soon as it is wired into another machine. The reason is plain: the outside edge of the board is not firmware space. It is cable length, ground shift, ESD, bus loading, connector handling, wake current, bias resistors, termination, common mode noise and field wiring habits. The interface ICs at that edge decide whether a product behaves like a lab board or like equipment that can live beside motors, chargers, gateways and service tools.

P3.22 covers the parts that sit between the local controller and the outside electrical world. CAN and RS485 transceivers translate logic into cable signaling. USB Type C parts decide what the port is allowed to draw or offer, then protection parts keep the port from becoming the ESD path into the processor. Level translators and IO expanders patch the voltage and pin count gaps that appear once the schematic touches sensors, modules and old logic. Digital isolation separates grounds when a shared return path would turn a data cable into a fault path. None of these parts should be treated as decorative glue. They shape the failure mode of the whole device.

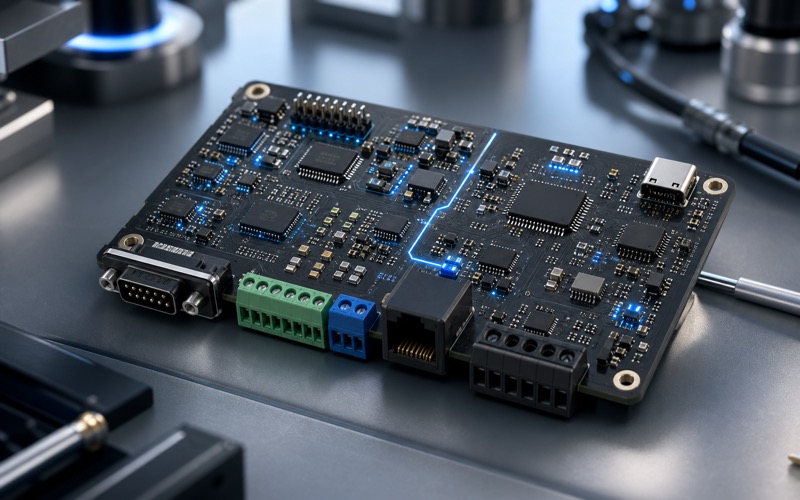

The bus part is part of the system boundary

CAN looks simple at the connector because it is only a differential pair, yet the transceiver has to understand a harsh job. It must drive a bus shared with other nodes, survive common mode movement, enter low current states, wake the local controller at the right moment and avoid making one weak node noisy for everyone. TJA1145ATK/0Z as a CAN transceiver with partial networking belongs in that discussion because partial networking is not a marketing feature for a sleepy node. It lets the system wake for traffic that matters, instead of waking for every frame on a busy harness.

That matters in vehicle and industrial equipment where standby current is budgeted across many attached boards. A controller that wakes for every bus event may pass a bench demo and then fail a parked current target. The transceiver choice also affects diagnostics. If the part can report bus errors, thermal shutdown, local wake, remote wake and undervoltage in a form the controller can read, the service story changes. The firmware can separate a shorted cable from a low supply event instead of recording one vague communication fault.

The other side of CAN selection is signal quality. TJA1462AT/0Z as a CAN signal improvement transceiver points at a different reason to choose the part: edge behavior and EMC margin. A bus may meet the protocol on a short harness and still radiate poorly once the cable is long, the enclosure is plastic, or the connector exits near a noisy converter. The transceiver cannot repair a broken layout, but it can reduce the penalty of fast uncontrolled edges. Pair it with proper split termination, a sane common mode path and port protection close to the connector, not buried behind the microcontroller.

RS485 is a wiring system, not only a driver chip

RS485 gets chosen when the node must talk across a longer cable or share a multidrop line. The transceiver is the visible part, but the design includes termination, bias, shield treatment, connector pinout, ground reference and firmware timing. ST3485ECDR as an RS485 transceiver, SP485EEN as a low power RS485 transceiver and SN75176BDR as a classic RS485 transceiver all fit the same broad family, yet they do not imply the same board.

A low power RS485 transceiver helps when the node spends much of its life listening, waking or running from a limited supply. A classic 5 V transceiver may be easier to fit into an older installed base. A 3.3 V part can reduce translation work around a modern MCU. The trap is to select by package and price while ignoring receiver fail-safe behavior, driver enable timing, bus idle bias and the real voltage range at the far connector. On a two node bench cable, weak bias may go unnoticed. On a long line with several units removed for service, the same bias can become random data or a bus that wakes a controller all night.

Direction control deserves its own check. Half duplex RS485 needs the controller to release the driver before the other side answers. If the firmware keeps the driver enabled too long, the electrical layer is blamed for a timing bug. If the transceiver turnoff is slow against the protocol gap, the bus sees contention. The schematic review should include the enable pin, pull state during reset, fail state during bootloader entry and what happens if the MCU pin is high impedance. A communication port that drives the line during reset can block a whole multidrop segment.

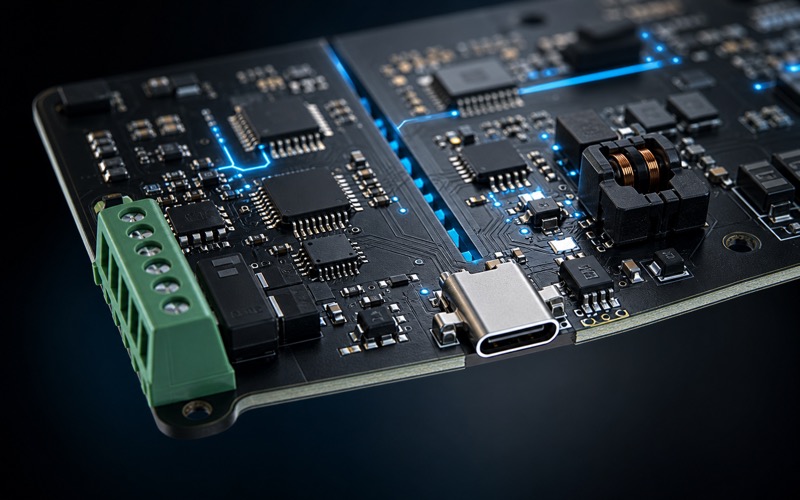

USB Type C needs policy, filtering and ESD close to the port

USB Type C is a connector system before it is a data path. The CC pins tell the device what role and current it can claim. The port may be power only, USB 2.0 data, debug, firmware loading, charging input or a mix of those functions. FUSB302BMPX as a USB Type C power delivery controller is the kind of part that moves the design away from fixed resistors when the product needs negotiated behavior. It does not replace the charger, the power switch, the TVS parts or the firmware policy. It gives the controller a way to read and manage the Type C conversation.

That separation is helpful during review. The PD controller handles the port protocol, the power path handles current, and the protection network handles abuse. If those roles blur, the design becomes hard to debug. A board may enumerate well on a laptop, fail with a charger, draw the wrong current from a dock, or latch up after a cable ESD strike. The remedy is not to add a larger capacitor somewhere near the connector. It is to define port behavior, then place the right support parts in the right order.

PCMF2USB3S for USB common mode filtering and ESD sits in that support area. Filtering and ESD parts must be selected with the data rate, capacitance, clamping path and layout in mind. A common mode filter can improve radiated noise while adding loss or imbalance if it is forced into the wrong path. An ESD device can protect the controller only if the discharge current has a short route to the reference it needs. The distance between connector, filter, protector and ground path is not cosmetic. It is part of the protection circuit.

Level translation is where small assumptions break a board

Once a device uses more than one logic voltage, every cross domain signal needs a deliberate answer. Some signals are push pull, some are open drain, some change direction, and some have tight timing. NCA9555 as a 16 bit I2C IO expander can add slow control pins without asking the main MCU for another package size. That is a useful move for LEDs, enables, strap reads, low rate interrupt inputs and service mode signals. It is not a way to hide timing critical work. The I2C bus speed, pullups, address plan and reset state define how useful the expander will be during boot.

Bidirectional level translators look convenient because they remove the direction pin from the schematic. TXB0108PWR as an eight bit bidirectional level translator can be a clean fit when the load is light and the signal type matches the device behavior. It becomes risky when the trace is long, the load is capacitive, the pullups are strong, or the signal is open drain. Those are not small layout preferences. They change whether the translator can decide which side is driving.

For open drain buses, TXS0102DQER as a two bit level translator points to a different class of part. For push pull signals with a known direction, SN74AVC2T245RSWR as a two bit direction controlled level translator can be a cleaner answer because the direction is explicit. That explicit pin costs a control signal, but it removes guesswork. The schematic should state which nets are open drain, which are push pull, which must be valid during reset, and which side can be powered first. Translation is often where back powering enters through an input protection diode and makes a turned off rail look half alive.

Isolation changes the fault path, not only the data sheet rating

Digital isolation is added when two sides of a device should communicate without sharing fault energy through a direct ground path. That can be a high side measurement, a fieldbus port, an inverter control line, a PLC input, or a gateway that touches a machine ground the main electronics should not trust. ADUM5211CRSZ as a two channel digital isolator with isolated power is useful because the isolation discussion includes both data and power. Moving logic across a barrier is not enough if the isolated side still needs a noisy or unsafe local supply path.

The choice still needs a board level review. Isolation voltage, working voltage, creepage, clearance, surge, common mode transient immunity, channel direction and power budget all matter. A part with a high isolation rating placed across a dirty slot with copper pour too close to the barrier will not deliver the intent. The isolated DC rail must have enough current for the remote transceiver and bias network, yet avoid becoming a wideband noise source that injects into the same cable it was meant to protect.

Isolation also affects test strategy. If the product has an isolated RS485 port, production test needs a way to exercise that port without defeating the barrier through the fixture. If the isolated side has its own supply, the test should catch a missing isolated rail, a swapped direction channel and a shorted barrier capacitor. A design review that ends at the isolator part number leaves many of those faults for the first field failure.

Selection starts with the connector and works inward

The clean way to choose these parts is to begin at the connector and walk inward. What cable is attached, how long is it, who plugs it in, what voltage can appear on the wrong pin, what ground movement is allowed, how much standby current is available, and what must the device do during reset. After those questions are answered, the part list becomes narrower. CAN parts can be judged by wake behavior, diagnostics and EMC behavior. RS485 parts can be judged by supply, fail-safe behavior, enable timing and bus loading. USB Type C parts can be judged by port policy and protection placement. Translators can be judged by signal type and power sequence. Isolators can be judged by barrier requirements and the power needed on the far side.

That review is not slower than choosing by search results. It prevents the common late changes: swapping an auto direction translator for a controlled one, adding pullups after a bus floats, moving the ESD device to the connector side, changing an RS485 default state, adding an isolated supply, or replacing a CAN transceiver because standby current is too high. A connected device becomes durable when the board edge is treated as a system boundary from the first schematic pass.
