The ADCMP671 is an ultralow-power dual-limit (window) voltage monitor from Analog Devices. Rather than comparing one input to one threshold, it watches a rail against both an undervoltage and an overvoltage limit at once and flags each condition on its own output - the function a system needs to know that a supply is "in range," not just "above" or "below." ADCMP671-1YUJZ-RL7 is the RoHS-compliant ("Z") 6-lead TSOT-23 version on tape and reel, with the "-1" hysteresis/polarity option.

Two things make it practical. First, the built-in 400 mV reference, accurate to ±0.275%, removes the need for an external reference: the designer sets the UV and OV trip points with a simple external resistor divider into the INH (undervoltage) and INL (overvoltage) inputs, and the internal reference and comparators do the rest, with about 7.8 mV of built-in hysteresis for clean, chatter-free transitions. Second, the two open-drain outputs - PWRGD (valid while the rail is inside the UV/OV window) and OV (overvoltage fault) - can be wire-OR'd with other open-drain signals and pulled up to any rail up to VDD, which is how supervisors interface to a reset line or a system controller.

Power is the headline: the ADCMP671 runs on just 16 µA over a 1.7 V to 5.5 V supply, so it can monitor a battery or rail continuously without being a meaningful drain itself. That, plus the small 6-lead TSOT-23 and the integrated reference, is exactly what a Li-Ion-powered or handheld design wants from a supervisor.

Note: Values are taken from the Analog Devices ADCMP671 datasheet. Confirm every parameter against the latest official documentation before committing a design.

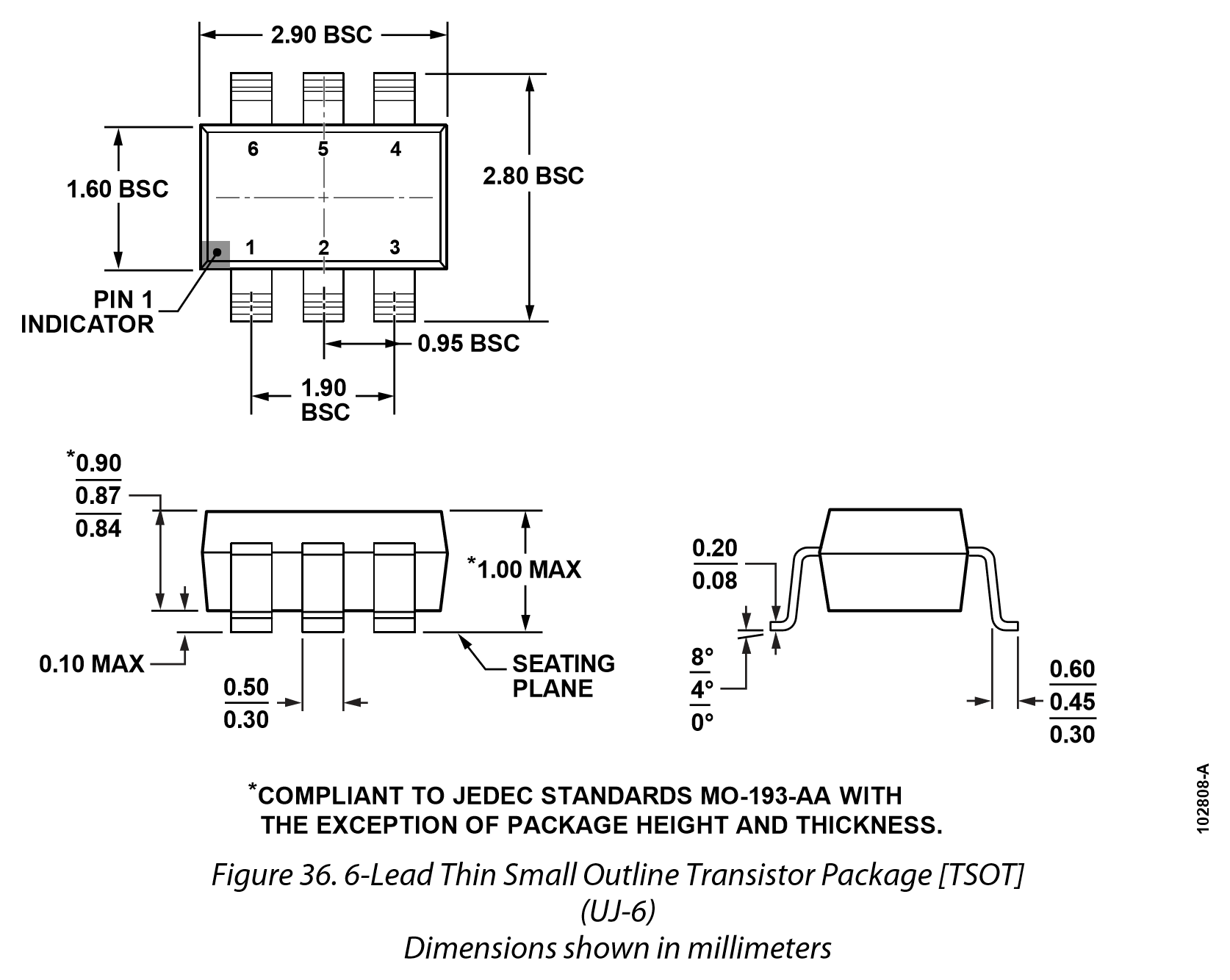

ADCMP671-1YUJZ-RL7 is supplied in the 6-lead TSOT-23 (Thin Small Outline Transistor package, ADI outline UJ-6), a low-profile 1 mm surface-mount body. "Z" marks the RoHS-compliant lead-free finish and "RL7" the tape-and-reel packing; "1Y" denotes the hysteresis/polarity option. As a supervisor watching a rail, place the threshold-setting divider close to the INH/INL inputs and keep the open-drain pull-ups tied to the logic rail being protected. Package dimensions and pin-1 orientation are shown below.

📄 Full specifications are detailed in the official Analog Devices ADCMP671 datasheet.

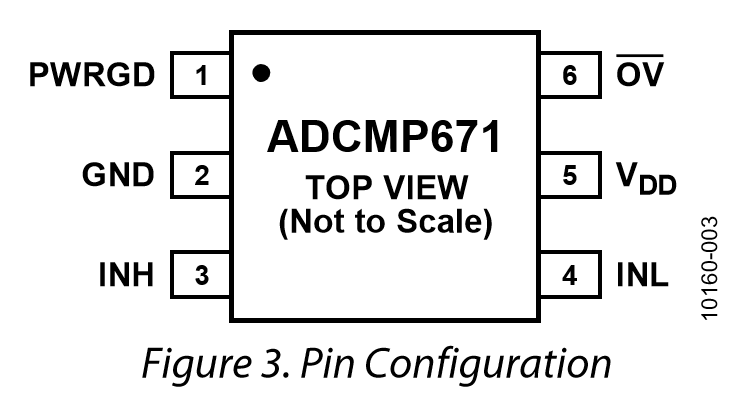

The 6-lead TSOT-23 brings out the two monitor inputs, two open-drain outputs and the supply:

• Pin 1 - PWRGD: Power-good open-drain output; active (valid) while the rail is inside the UV/OV window.
• Pin 2 - GND: Ground.
• Pin 3 - INH: Undervoltage (UV) monitor input; tie to the top of an external resistor divider.
• Pin 4 - INL: Overvoltage (OV) monitor input; tie to the top of an external resistor divider.
• Pin 5 - VDD: Positive supply (1.7 V to 5.5 V); decouple close to the pin.
• Pin 6 - OV: Overvoltage fault open-drain output (active low).

Refer to the package drawing below for the physical pin numbering of the TSOT-23-6.
