The UC3845BD1R2G is the SOIC-8 tape-and-reel version of the UC3845B, a member of onsemi's industry-standard UC3842B/3843B/3844B/3845B high-performance current-mode controller family. These controllers are specifically designed for off-line switch-mode power supplies and DC-DC converter applications, delivering a complete PWM control solution with a minimal count of external components.

On chip it integrates a trimmed oscillator for precise frequency control, a temperature-compensated voltage reference, a high-gain error amplifier, a current-sensing comparator and a high-current totem-pole output stage ideally suited for driving a power MOSFET directly. Current-mode operation provides automatic feed-forward compensation and inherently fast response to input voltage changes, while the latching PWM performs cycle-by-cycle current limiting for robust overload behavior.

Within the family, the UC3845B variant pairs a low 8.5V (on) / 7.6V (off) undervoltage lockout with an internal flip-flop that clamps the maximum duty cycle to 50%. Protection features further include UVLO with hysteresis, programmable output deadtime and low startup and operating current. The oscillator frequency is guaranteed at 250kHz and current-mode operation extends to 500kHz. The D1 suffix denotes the 8-pin SOIC (CASE 751) and the R2G suffix tape-and-reel, Pb-free packing.

Note: Refer to the official onsemi UC3844B/UC3845B datasheet for full electrical parameters and curves. Subject to change without notice; verify all parameters before final design.

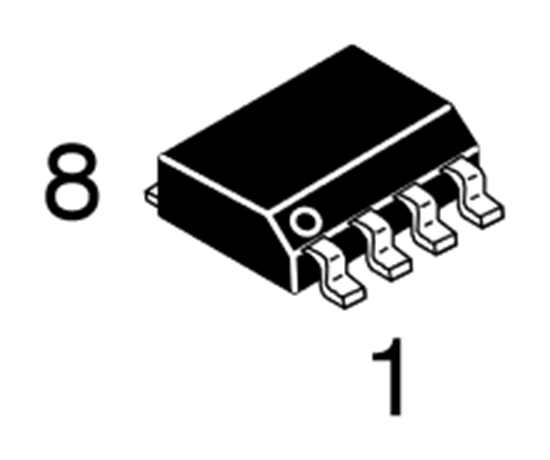

The UC3845BD1R2G comes in the 8-pin narrow-body SOIC-8 surface-mount package, onsemi CASE 751, identified by the D1 suffix. The family is also offered in PDIP-8 (N suffix, CASE 626) for through-hole assembly and in SOIC-14 (D suffix), which separates power and ground of the totem-pole output stage onto dedicated pins.

The R2G ordering suffix indicates tape-and-reel packing with Pb-free terminations, RoHS compliant and compatible with standard SOIC-8 land patterns and reflow profiles for automated SMT assembly.

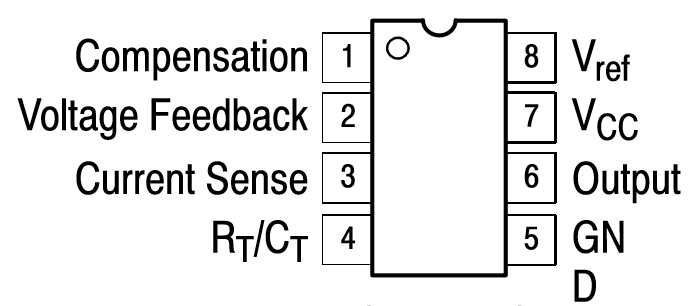

The UC3845BD1R2G uses the industry-standard 8-pin current-mode controller pinout (top view):

• Pin 1 - COMP: Error-amplifier output / loop compensation.
• Pin 2 - VFB: Voltage feedback, inverting input of the error amplifier.
• Pin 3 - CS (Current Sense): Switch-current sense input for the PWM comparator and cycle-by-cycle limit.
• Pin 4 - RT/CT: Oscillator timing resistor and capacitor.
• Pin 5 - GND: Ground.
• Pin 6 - OUTPUT: Totem-pole gate-drive output.
• Pin 7 - VCC: Supply voltage (UVLO 8.5V on / 7.6V off).
• Pin 8 - VREF: Trimmed reference output.

Decouple VCC and VREF to ground with ceramic capacitors close to the device, and keep the CS and RT/CT traces short. Confirm the exact pin assignment against the datasheet image below before layout.
