The MAX232ACSE+T is the A-grade (high-speed) version of Maxim's industry-standard MAX232 RS-232 transceiver, part of the MAX220-MAX249 family for EIA/TIA-232E and V.28/V.24 interfaces. It provides two transmitters and two receivers with an integrated charge pump, running from a single +5V supply.

Compared with the original MAX232, the MAX232A is guaranteed to 200kbps and uses much smaller 0.1µF external capacitors instead of 1µF - saving board area and cost while supporting faster serial links. The on-chip dual charge pump (voltage doubler plus inverter) converts +5V to the ±10V required for RS-232 line levels.

Receivers translate incoming RS-232 levels to TTL/CMOS; the two independent driver/receiver pairs handle a standard TX/RX serial link. Pin-for-pin compatible with the MAX232, the MAX232A drops into existing designs and simply allows higher data rates with smaller capacitors. It operates over 0°C to +70°C in a narrow 16-pin SO.

Note: Refer to the official Maxim MAX220-MAX249 datasheet for full electrical parameters. Subject to change without notice; verify all parameters before final design.

The MAX232ACSE+T is supplied in a narrow 16-pin SO package, indicated by the CSE suffix. It shares the industry-standard MAX232 16-pin footprint, so it drops into existing RS-232 designs (use 0.1µF capacitors for the MAX232A).

The "+" suffix indicates lead-free, RoHS-compliant finish and the "T" suffix tape-and-reel packing. Standard 16-lead SO land patterns and reflow profiles apply; place the four 0.1µF charge-pump capacitors (C1-C4) close to the device and bypass VCC. The diagram below shows the typical operating circuit (the figure covers MAX220/MAX232/MAX232A; use the 0.1µF column for the MAX232A).

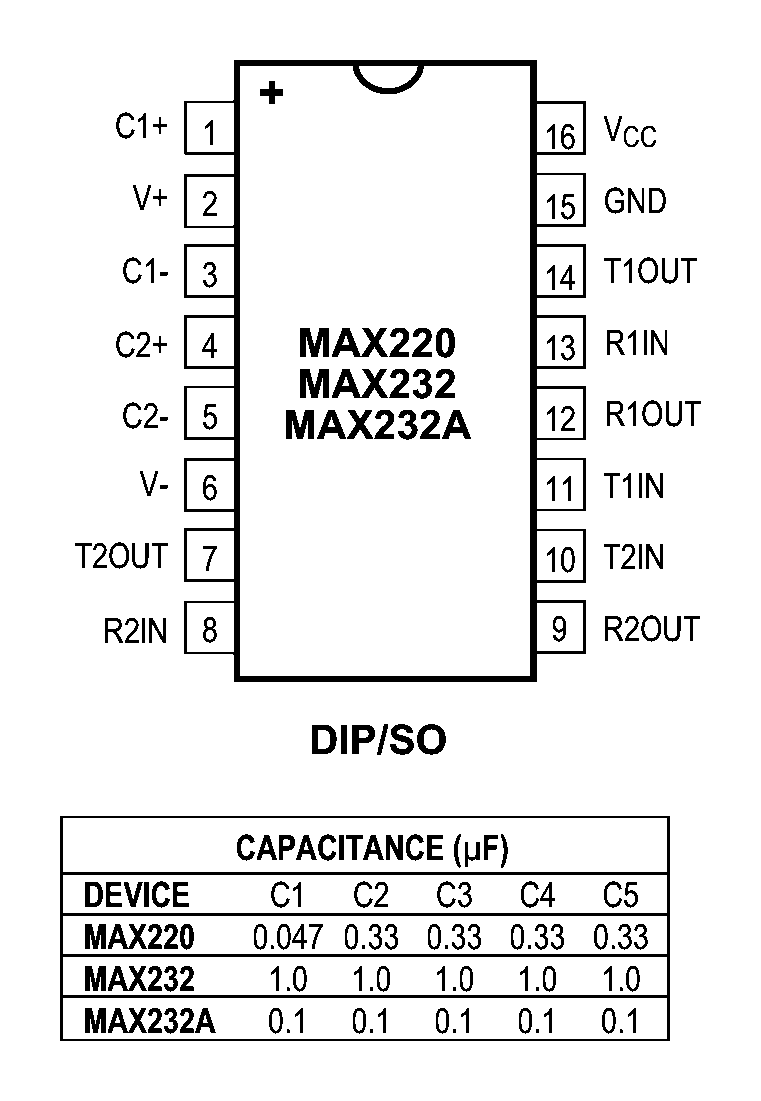

The MAX232A uses the classic MAX232 16-pin RS-232 pinout (top view):

• Pin 1 - C1+ / Pin 3 - C1- / Pin 4 - C2+ / Pin 5 - C2-: Charge-pump capacitor connections.
• Pin 2 - V+ / Pin 6 - V-: Charge-pump outputs (+10V / -10V).
• Pin 11 - T1IN / Pin 10 - T2IN: Driver (transmitter) TTL/CMOS inputs.
• Pin 14 - T1OUT / Pin 7 - T2OUT: Driver RS-232 outputs.
• Pin 13 - R1IN / Pin 8 - R2IN: Receiver RS-232 inputs.
• Pin 12 - R1OUT / Pin 9 - R2OUT: Receiver TTL/CMOS outputs.
• Pin 15 - GND / Pin 16 - VCC: Ground and +5V supply.

Connect C1-C4 (0.1µF for the MAX232A) per the diagram, route T_IN/R_OUT to the UART and T_OUT/R_IN to the RS-232 connector. Confirm the exact pin assignment against the datasheet image below before layout.
