The MAX232CSE+T is the commercial-grade version of Maxim's original MAX232 - the part that became the de-facto industry standard for +5V RS-232. As a member of the MAX220-MAX249 family, it serves EIA/TIA-232E and V.28/V.24 interfaces with two transmitters and two receivers and an integrated charge pump, removing the need for ±12V supplies.

An on-chip dual charge pump (voltage doubler plus inverter) converts +5V to the ±10V required to drive RS-232 lines, using the classic four external 1µF capacitors. Receivers translate incoming RS-232 levels back to TTL/CMOS, providing a reliable, well-proven serial interface that countless designs have shipped for decades.

Because it is the reference MAX232, the MAX232CSE is the safe default whenever a standard +5V RS-232 port is needed and no special feature (low-power shutdown, high speed or extended temperature) is required. It operates over the 0°C to +70°C commercial range in a narrow 16-pin SO.

Note: Refer to the official Maxim MAX220-MAX249 datasheet for full electrical parameters. Subject to change without notice; verify all parameters before final design.

The MAX232CSE+T is supplied in a narrow 16-pin SO package, indicated by the CSE suffix. This is the canonical MAX232 16-pin footprint that the whole family shares, so the standard part drops into virtually any RS-232 design.

The "+" suffix indicates lead-free, RoHS-compliant finish and the "T" suffix tape-and-reel packing. Standard 16-lead SO land patterns and reflow profiles apply; place the four 1µF charge-pump capacitors (C1-C4) close to the device and bypass VCC. The diagram below shows the typical operating circuit (the figure covers MAX220/MAX232/MAX232A; use the 1µF column for the standard MAX232).

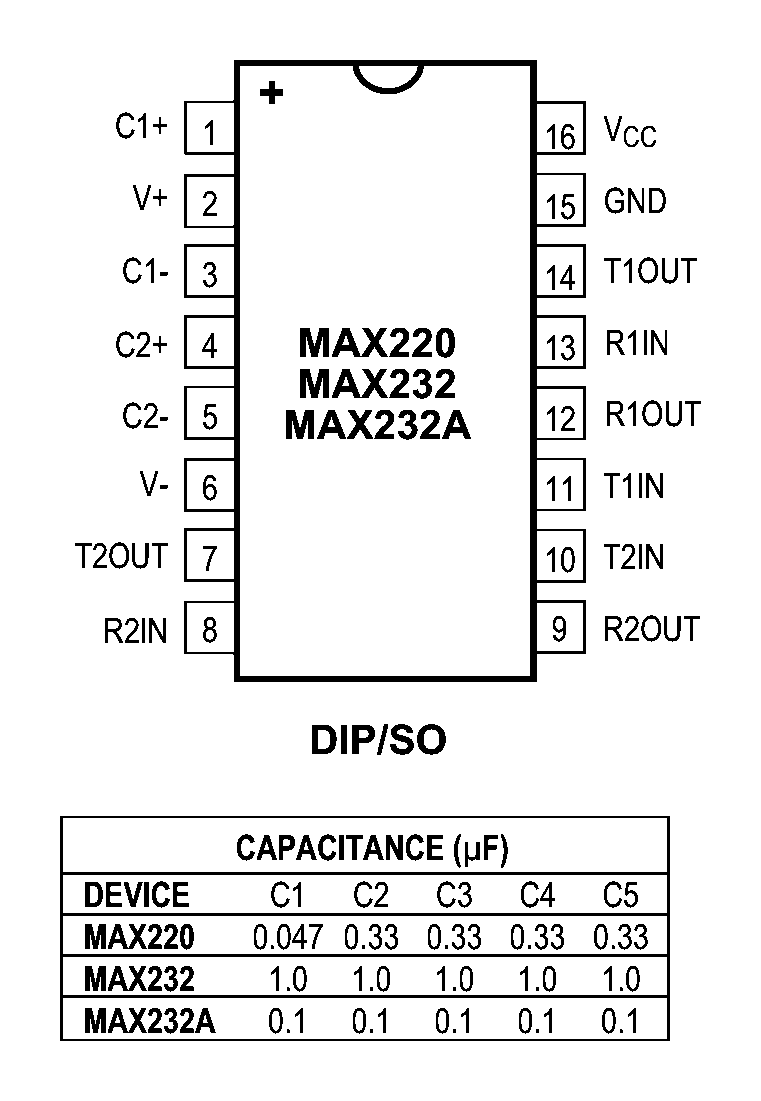

The MAX232CSE uses the canonical MAX232 16-pin RS-232 pinout (top view):

• Pin 1 - C1+ / Pin 3 - C1- / Pin 4 - C2+ / Pin 5 - C2-: Charge-pump capacitor connections.
• Pin 2 - V+ / Pin 6 - V-: Charge-pump outputs (+10V / -10V).
• Pin 11 - T1IN / Pin 10 - T2IN: Driver (transmitter) TTL/CMOS inputs.
• Pin 14 - T1OUT / Pin 7 - T2OUT: Driver RS-232 outputs.
• Pin 13 - R1IN / Pin 8 - R2IN: Receiver RS-232 inputs.
• Pin 12 - R1OUT / Pin 9 - R2OUT: Receiver TTL/CMOS outputs.
• Pin 15 - GND / Pin 16 - VCC: Ground and +5V supply.

Connect C1-C4 (1µF for the standard MAX232), route T_IN/R_OUT to the UART and T_OUT/R_IN to the RS-232 connector. Confirm the exact pin assignment against the datasheet image below before layout.
