The MAX232AESE+T is the E-grade (extended temperature) variant of Maxim's high-speed MAX232A RS-232 transceiver, qualified across the full -40°C to +85°C industrial range. Where the commercial C-grade tops out at +70°C, this E-grade keeps RS-232 links reliable in cold-start, outdoor and high-ambient enclosures - making it the part to specify when board temperature is not controlled.

Functionally it is the same proven circuit: two transmitters, two receivers and an integrated dual charge pump that generates ±10V from a single +5V rail. As an A-grade device it is guaranteed to 200kbps and uses compact 0.1µF capacitors, so the only practical change versus a standard MAX232 design is the wider temperature window and faster data.

Because it shares the universal MAX232 16-pin pinout, the MAX232AESE is a straight drop-in for designs that need to survive the extended industrial range. Typical homes are factory-floor controllers, outdoor telemetry, transport electronics and instrumentation that see ambient swings well beyond the commercial band.

Note: Refer to the official Maxim MAX220-MAX249 datasheet for full electrical parameters. Subject to change without notice; verify all parameters before final design.

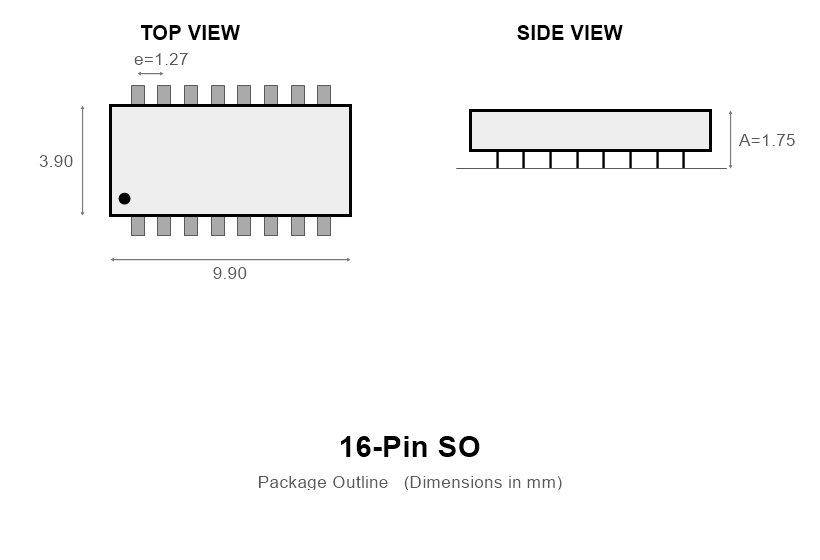

The MAX232AESE+T is supplied in a 16-pin SO package, indicated by the ESE suffix (E = extended-temperature grade). It uses the industry-standard MAX232 16-pin footprint, so the extended-temp part drops into existing RS-232 layouts unchanged.

The "+" suffix indicates lead-free, RoHS-compliant finish and the "T" suffix tape-and-reel packing. Standard 16-lead SO land patterns and reflow profiles apply; place the four 0.1µF charge-pump capacitors (C1-C4) close to the device and bypass VCC. The diagram below shows the typical operating circuit (the figure covers MAX220/MAX232/MAX232A; use the 0.1µF column for the MAX232A).

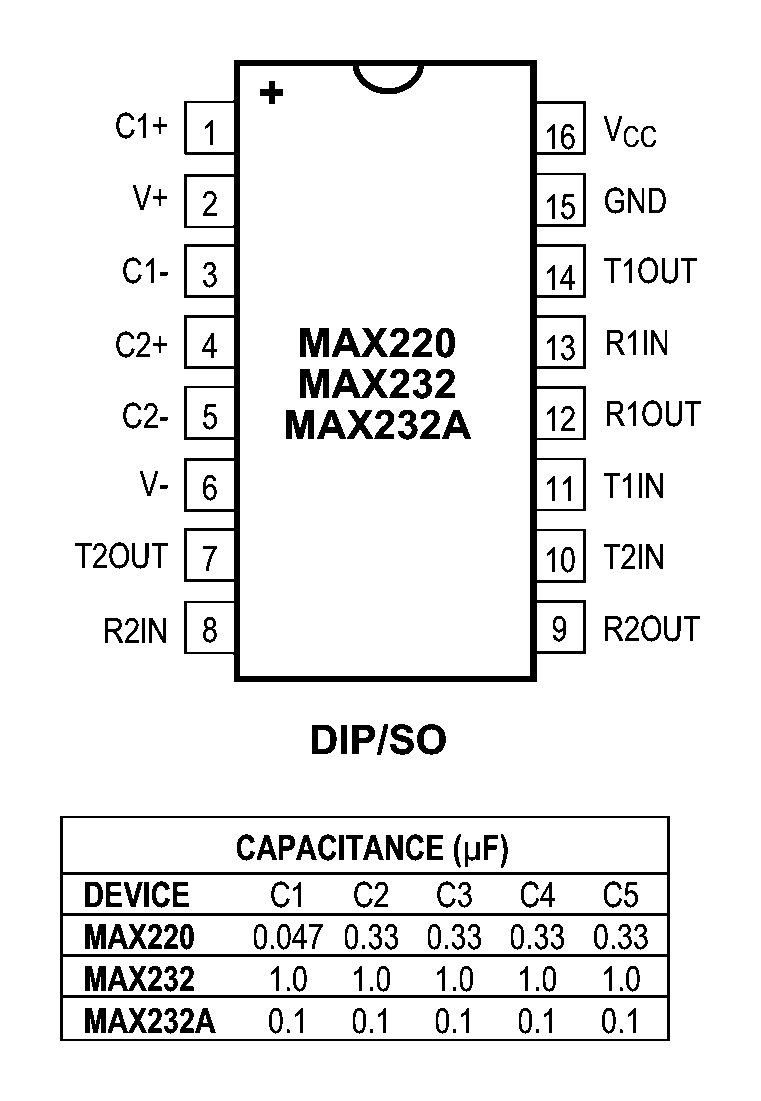

The MAX232AESE uses the classic MAX232 16-pin RS-232 pinout (top view):

• Pin 1 - C1+ / Pin 3 - C1- / Pin 4 - C2+ / Pin 5 - C2-: Charge-pump capacitor connections.
• Pin 2 - V+ / Pin 6 - V-: Charge-pump outputs (+10V / -10V).
• Pin 11 - T1IN / Pin 10 - T2IN: Driver (transmitter) TTL/CMOS inputs.
• Pin 14 - T1OUT / Pin 7 - T2OUT: Driver RS-232 outputs.
• Pin 13 - R1IN / Pin 8 - R2IN: Receiver RS-232 inputs.
• Pin 12 - R1OUT / Pin 9 - R2OUT: Receiver TTL/CMOS outputs.
• Pin 15 - GND / Pin 16 - VCC: Ground and +5V supply.

Connect C1-C4 (0.1µF), route T_IN/R_OUT to the UART and T_OUT/R_IN to the RS-232 connector. Across the full -40°C to +85°C range the same connections apply. Confirm the exact pin assignment against the datasheet image below before layout.
