The MAX3221CUE+T is part of Maxim's MAX3221/MAX3223/MAX3243 family of +3V to +5.5V RS-232 transceivers with AutoShutdown. The MAX3221 is the single-channel member - one transmitter and one receiver - ideal where only a single RS-232 link is needed and power must be minimal.

The revolutionary AutoShutdown feature senses the receiver inputs and, when the RS-232 cable is disconnected or the transmitters are disabled, automatically powers down the on-board supply and drivers to just 1µA. The system turns back on automatically when a valid RS-232 level is again applied - no software intervention needed, though software shutdown control is also available.

A dual charge pump generates the ±5.5V RS-232 line levels and the device needs only 0.1µF capacitors for 3.3V operation. AutoShutdown control is exposed on EN̅, FORCEON, FORCEOFF̅ and the INVALID̅ valid-signal-detect output. It suits battery-powered, hand-held and portable equipment in a 16-pin TSSOP.

Note: Refer to the official Maxim MAX3221/MAX3223/MAX3243 datasheet for full electrical parameters. Subject to change without notice; verify all parameters before final design.

The MAX3221CUE+T is supplied in a 16-pin TSSOP package, indicated by the CUE suffix; an SSOP option also exists. The small TSSOP suits space-constrained hand-held and portable designs.

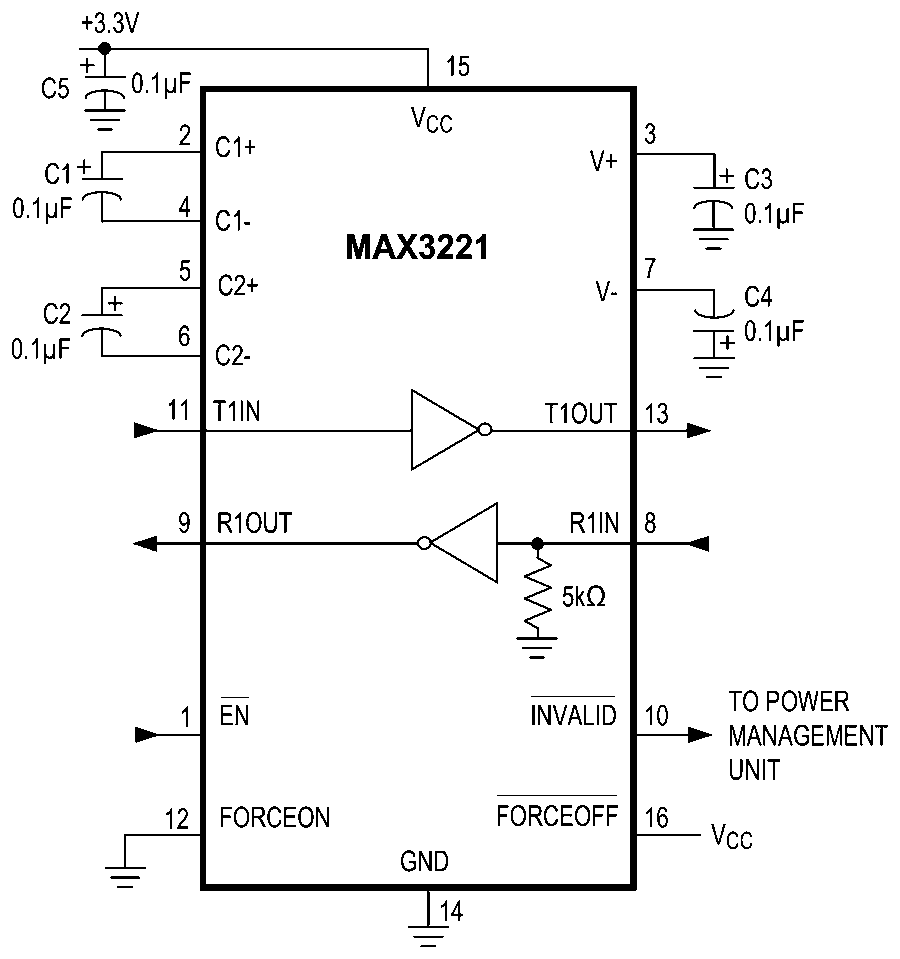

The "+" suffix indicates lead-free, RoHS-compliant finish and the "T" suffix tape-and-reel packing. Standard 16-lead TSSOP land patterns and reflow profiles apply; place the four charge-pump capacitors and VCC bypass (0.1µF) close to the device. The diagram below shows the typical operating circuit.

The MAX3221 uses a 16-pin TSSOP/SSOP pinout (top view):

• Pin 1 - EN̅: Receiver enable, active-low (high tri-states the receiver output).
• Pin 2 - C1+ / Pin 4 - C1- / Pin 5 - C2+ / Pin 6 - C2-: Charge-pump capacitor connections.
• Pin 3 - V+ / Pin 7 - V-: Charge-pump outputs (+5.5V / -5.5V).
• Pin 8 - R1IN / Pin 9 - R1OUT: Receiver RS-232 input / TTL-CMOS output.
• Pin 11 - T1IN / Pin 13 - T1OUT: Transmitter TTL-CMOS input / RS-232 output.
• Pin 10 - INVALID̅: Valid-signal-detect output (to power-management unit).
• Pin 12 - FORCEON / Pin 16 - FORCEOFF̅: AutoShutdown override controls.
• Pin 14 - GND / Pin 15 - VCC: Ground and +3V-+5.5V supply.

For automatic operation tie FORCEON and FORCEOFF̅ high and let AutoShutdown manage power; use EN̅ to gate the receiver and read INVALID̅ for link status. Confirm the exact pin assignment against the datasheet image below before layout.
