The MAX3232EUE+T is the industry-standard MAX3232 RS-232 transceiver - the 3V-capable, low-power counterpart of the classic MAX232. It carries two drivers and two receivers, runs from a single +3.0V to +5.5V supply and is guaranteed for data rates up to 1Mbps, maintaining true EIA/TIA-232 levels throughout.

A dual charge pump generates the RS-232 line voltages from 3.3V using only 0.1µF capacitors, and the low-power architecture suits battery and portable equipment. The MAX3232's always-on R2 receiver output lets a system monitor an incoming RS-232 line even while the rest of the device is idle.

With two complete RS-232 channels in a compact 16-pin TSSOP, the MAX3232EUE is the workhorse choice for general 3V serial ports. Where an externally exposed connector needs extra ruggedness, the pin-compatible ±15kV ESD-protected MAX3232E family is the upgrade path.

Note: Refer to the official Maxim MAX3222-MAX3241 datasheet for full electrical parameters. Subject to change without notice; verify all parameters before final design.

The MAX3232EUE+T is supplied in a 16-pin TSSOP package, indicated by the EUE suffix (E = extended -40°C to +85°C, UE = TSSOP). The MAX3232 is also offered in DIP and SO.

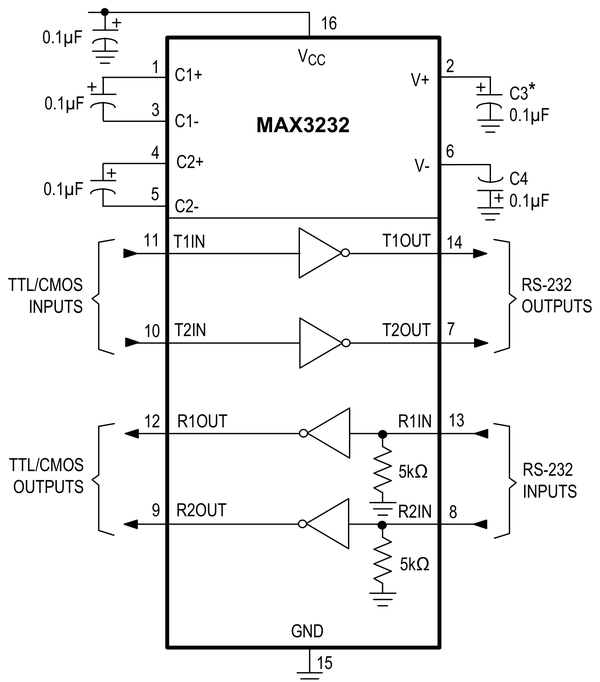

The "+" suffix indicates lead-free, RoHS-compliant finish and the "T" suffix tape-and-reel packing. Standard 16-lead TSSOP land patterns and reflow profiles apply; place the four 0.1µF charge-pump capacitors and VCC bypass close to the device. The diagram below shows the typical operating circuit.

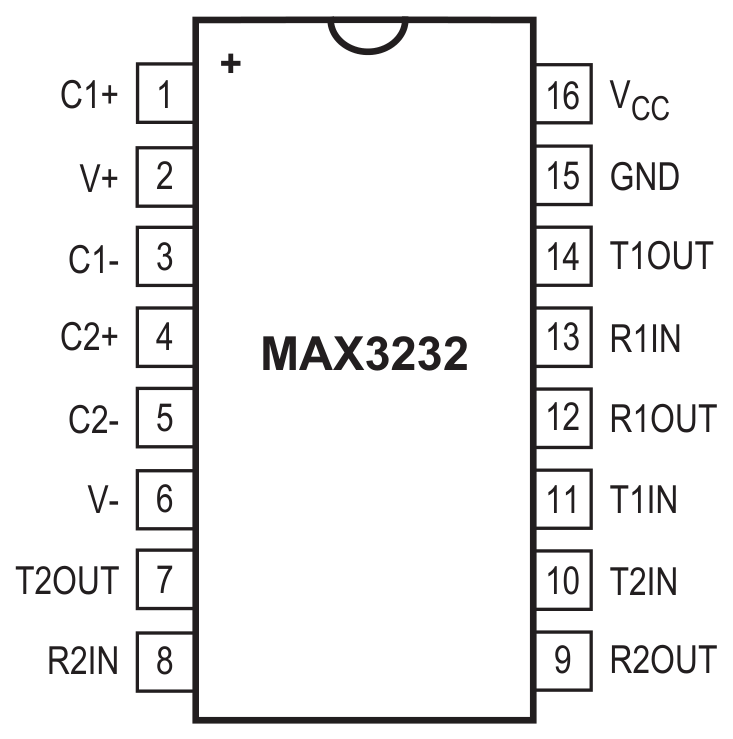

The MAX3232 uses a 16-pin RS-232 pinout (top view):

• Pin 1 - C1+ / Pin 3 - C1- / Pin 4 - C2+ / Pin 5 - C2-: Charge-pump capacitor connections.
• Pin 2 - V+ / Pin 6 - V-: Charge-pump outputs (+5.5V / -5.5V).
• Pin 11 - T1IN / Pin 10 - T2IN: Driver TTL/CMOS inputs.
• Pin 14 - T1OUT / Pin 7 - T2OUT: Driver RS-232 outputs.
• Pin 13 - R1IN / Pin 8 - R2IN: Receiver RS-232 inputs.
• Pin 12 - R1OUT / Pin 9 - R2OUT: Receiver TTL/CMOS outputs (R2OUT always-on).
• Pin 15 - GND / Pin 16 - VCC: Ground and +3V-+5.5V supply.

Connect the four 0.1µF capacitors, route T_IN/R_OUT to the UART and T_OUT/R_IN to the RS-232 connector. Confirm the exact pin assignment against the datasheet image below before layout.

The following parts are listed for reference. Verify ESD rating, channel count and package before substituting.
