Analog Devices Inc./Maxim Integrated MAX3232ECUE+T
- Part No.:
- MAX3232ECUE+T
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Drivers, Receivers, Transceivers
- Package:
- 16-TSSOP (0.173", 4.40mm Width)
- Datasheet:
-
MAX3232ECUE+T.pdf
- Description:
- IC TRANSCEIVER FULL 2/2 16TSSOP
- Quantity:
Unit Price:$0.000000
Ext Price:$0.000000
- Payment:
- Shipping:
Inventory:5,694
Send us your inquiry,we will respond immediately.
In Stock : 5,694 PCS
| Qty. | Unit Price | Ext Price |
| 0+ | $0.000000 | $0.000000 |
*Products eligible for online ordering ship within 1-2 business days,please contact us for exact shipping times.
Also you can RFQ for MAX3232ECUE+T or email to us: Email: [email protected] , we will contact you within 12 hours.
Product Details
MAX3232ECUE+T - Maxim ±15kV ESD-Protected +3V to +5.5V RS-232 Transceiver, 2-Tx/2-Rx (TSSOP-16)
The MAX3232ECUE+T from Maxim Integrated (Analog Devices) is the TSSOP version of the ±15kV ESD-protected MAX3232E RS-232 transceiver - two drivers, two receivers, +3V to +5.5V, with the slim 16-pin TSSOP body for height- and space-constrained boards. A dual charge pump and 0.1µF capacitors deliver true RS-232 from 3.3V, with ±15kV ESD on the I/O.
Product Introduction
The MAX3232ECUE+T is the slim-TSSOP grade of Maxim's ±15kV ESD-protected MAX3232E RS-232 transceiver (MAX3222E-MAX3241E family). It delivers two drivers and two receivers from a +3V to +5.5V supply, with the same electrical performance as the SSOP MAX3232ECAE but in the lower-profile 16-pin TSSOP outline preferred for thin and dense assemblies.
A dual charge pump makes the RS-232 line levels from 3.3V using only 0.1µF capacitors, and every RS-232 input/output is hardened to ±15kV Human Body Model ESD. The receivers carry a 5kΩ input pulldown and translate RS-232 to TTL/CMOS.
Sharing the universal MAX3232E pinout, the TSSOP MAX3232ECUE drops into any MAX3232E layout where the thinner TSSOP package is needed - notebooks, hand-held terminals and compact peripherals whose serial connector is exposed to ESD.
Expert Technical Insight
Why the TSSOP MAX3232ECUE?
- Low-profile TSSOP: the 16-pin TSSOP is thinner and narrower than the SSOP, fitting tight, low-height assemblies while keeping the full MAX3232E function.
- 3.3V RS-232 + ±15kV ESD: true RS-232 levels from a 3.3V rail with ±15kV HBM on the connector pins - the modern low-voltage, ESD-robust combination.
- 0.1µF, shared pinout: small 0.1µF charge-pump capacitors and the common MAX3232E pinout make it a drop-in for SSOP/TQFN siblings.
Key Benefits
Thin 16-pin TSSOP for height- and space-constrained boards.
±15kV HBM ESD on all RS-232 I/O pins.
True RS-232 from 3.3V via dual charge pump; only 0.1µF capacitors.
Two Tx + two Rx; common MAX3232E pinout across SSOP/TSSOP/TQFN.
Specifications
| Parameter | Value | Condition / Notes |
|---|---|---|
| Device Type | RS-232 transceiver (2 Tx / 2 Rx), ESD-protected | MAX3222E-MAX3241E family |
| Manufacturer | Maxim Integrated (Analog Devices) | |
| ESD Protection | ±15 kV HBM | RS-232 I/O pins |
| Supply Voltage | +3.0 V ~ +5.5 V | Single supply |
| Charge Pump | Integrated dual | Generates RS-232 levels from 3.3V |
| External Capacitors | 0.1 µF | 4 charge-pump + 1 VCC bypass |
| Drivers / Receivers | 2 / 2 | 5kΩ receiver input pulldown |
| Operating Temperature | -40°C ~ +85°C | Extended (E) |
| Package | 16-Pin TSSOP (CUE) | "+" lead-free; "T" tape & reel |
Note: Refer to the official Maxim MAX3222E-MAX3241E datasheet for full electrical parameters. Subject to change without notice; verify all parameters before final design.
Package Information
The MAX3232ECUE+T is supplied in a 16-pin TSSOP package, indicated by the CUE suffix - a thinner, narrower body than the SSOP MAX3232ECAE while sharing the identical MAX3232E pinout.

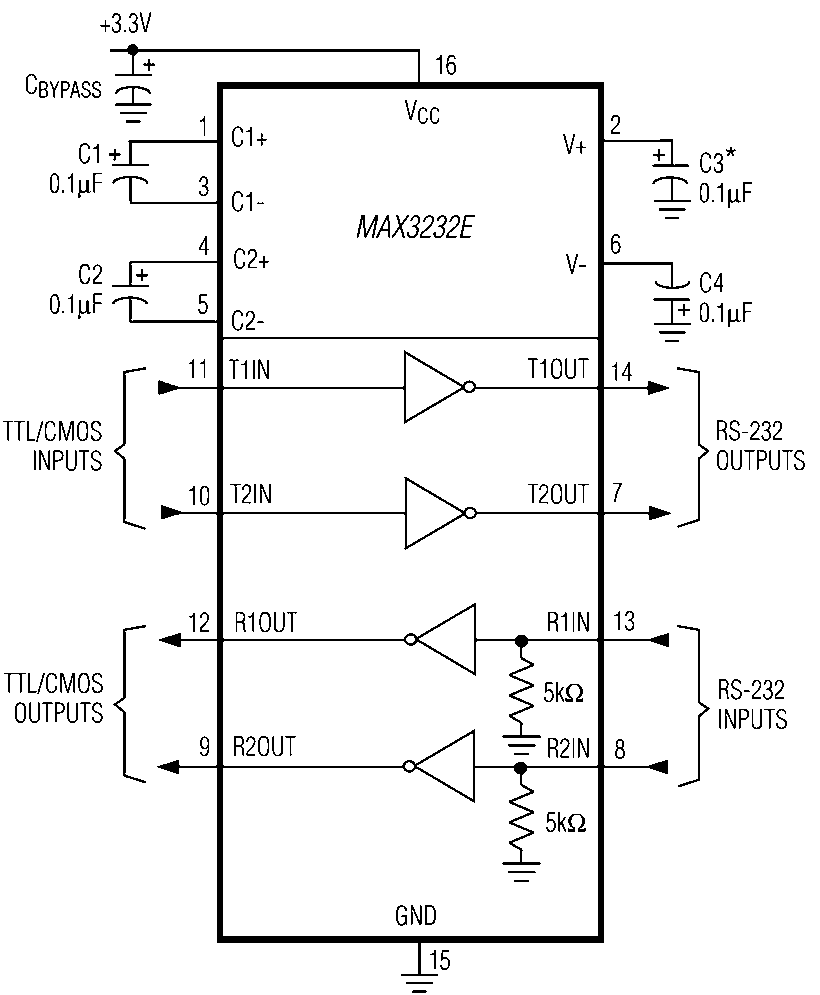

The "+" suffix indicates lead-free, RoHS-compliant finish and the "T" suffix tape-and-reel packing. Standard 16-lead TSSOP land patterns and reflow profiles apply; place the four 0.1µF charge-pump capacitors and VCC bypass close to the device. The diagram below shows the typical operating circuit.

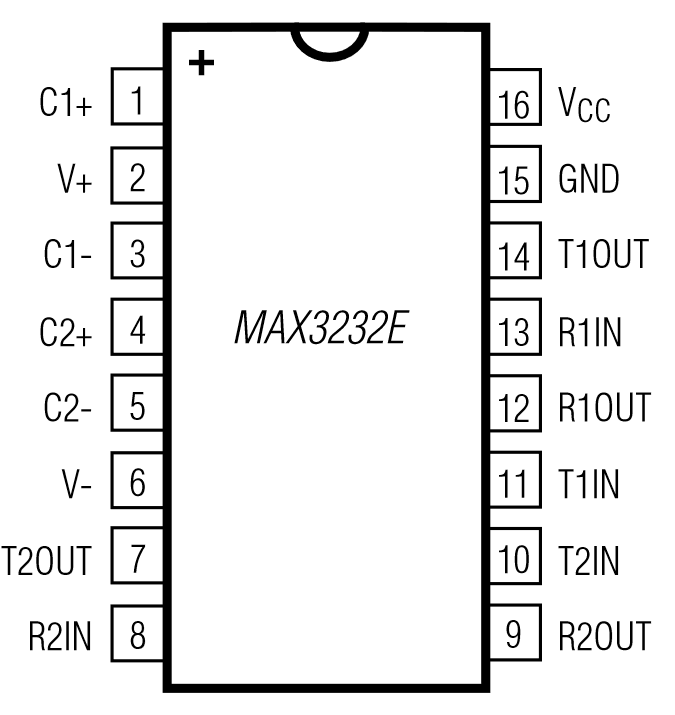

Pin Configuration (TSSOP-16)
The MAX3232E uses a 16-pin RS-232 pinout (top view):
- Pin 1 - C1+ / Pin 3 - C1- / Pin 4 - C2+ / Pin 5 - C2-: Charge-pump capacitor connections.
- Pin 2 - V+ / Pin 6 - V-: Charge-pump outputs (+5.5V / -5.5V).
- Pin 11 - T1IN / Pin 10 - T2IN: Driver TTL/CMOS inputs.
- Pin 14 - T1OUT / Pin 7 - T2OUT: Driver RS-232 outputs (±15kV ESD).
- Pin 13 - R1IN / Pin 8 - R2IN: Receiver RS-232 inputs (±15kV ESD, 5kΩ pulldown).
- Pin 12 - R1OUT / Pin 9 - R2OUT: Receiver TTL/CMOS outputs.
- Pin 15 - GND / Pin 16 - VCC: Ground and +3V-+5.5V supply.
Connect the four 0.1µF capacitors, route T_IN/R_OUT to the UART and the ESD-protected T_OUT/R_IN to the RS-232 connector. Confirm the exact pin assignment against the datasheet image below before layout.
Alternative Parts
The following parts are listed for reference. Verify package, channel count and ESD before substituting.
| Part Number | Brand | Type | Package | Key Feature |
|---|---|---|---|---|
| MAX3232ECAE+T | Maxim | ±15kV ESD RS-232 (2/2) | SSOP-16 | Same MAX3232E, SSOP |
| MAX3232EUE+T | Maxim | RS-232 (2/2) | TSSOP-16 | 3V RS-232, TSSOP |
| MAX3221CUE+T | Maxim | RS-232, 1-Tx/1-Rx, AutoShutdown | TSSOP-16 | Single-channel, 1µA |
| MAX3243EAI+ | Maxim | RS-232, 3-Tx/5-Rx, AutoShutdown | SSOP-28 | Full serial-port, ±15kV ESD |
Manufacturer Information
Maxim Integrated, now part of Analog Devices (NASDAQ: ADI), offers the ±15kV ESD MAX3232E in SSOP, TSSOP and TQFN bodies. The TSSOP MAX3232ECUE serves thin, space-constrained 3V serial designs.
Maxim/ADI provides complete datasheets, application notes and long-term supply, with authorized distribution and technical support across China for both prototype and volume programs.
Application Areas
Frequently Asked Questions
What is MAX3232ECUE+T used for?
It is the TSSOP version of the ±15kV ESD-protected +3V to +5.5V MAX3232E RS-232 transceiver (2-Tx/2-Rx), for thin, space-constrained 3V serial designs with exposed connectors.
How does it differ from the MAX3232ECAE?
Only the package: the CUE is a thinner 16-pin TSSOP, the CAE is SSOP. Same ±15kV ESD MAX3232E circuit, pinout and 0.1µF capacitors.
What capacitors and supply does it need?
Four 0.1µF charge-pump capacitors plus a 0.1µF VCC bypass on a single +3.0V to +5.5V supply.
What package is MAX3232ECUE+T?
A 16-pin TSSOP (CUE); the same MAX3232E pinout is also in SSOP and TQFN.
Disclaimer
Information Accuracy: Technical specifications on this page are based on the Maxim official datasheet. We strive for accuracy and completeness, but specifications are subject to change without notice. Verify all parameters before final design.
Product Authenticity Guarantee: We guarantee all products sold are genuine factory originals with complete material traceability.
Technical Support: Free technical consultation services are available both before and after purchase.
Application Note: This product page is for reference only. Suitability for specific applications should be verified by design engineers based on actual system requirements.
MAX3232ECUE+T Specifications
- Specifications
- Attributes
- Property Value
- Manufacturer
- Analog Devices Inc./Maxim Integrated
- Series:
- -
- Package/Case:
- 16-TSSOP (0.173", 4.40mm Width)
- Packaging:
- Tape & Reel (TR)
- Part Status:
- Active
- Type:
- Transceiver
- Protocol:
- RS232
- Duplex:
- Full
- Receiver Hysteresis:
- 500 mV
- Data Rate:
- 1Mbps
- Voltage - Supply:
- 3V ~ 5.5V
- Operating Temperature:
- 0°C ~ 70°C
- Number of Drivers/Receivers:
- 2/2
- Grade:
- -
- Qualification:
- -
- Mounting Style:
- Surface Mount
- Supplier Device Package:
- 16-TSSOP
- Category:
- Drivers, Receivers, Transceivers
