TMS320F28335 belongs to TI's C2000 Delfino line, the family that added a hardware floating-point unit to the established C28x real-time core. The C28x is not a general-purpose applications processor; it is a control CPU tuned for the inner loops of power and motion systems, where an interrupt has to be taken, an ADC result read, a control law computed and a PWM duty updated within microseconds, cycle after cycle. Adding the single-precision FPU lets the designer write those control laws in floating-point C rather than hand-scaled fixed-point, cutting development time and numerical-scaling bugs without giving up the deterministic timing the loop needs.

Around that 150 MHz core sits the memory and peripheral mix that defines the part. 512 KB of on-chip flash holds the application and the math tables; 68 KB of SARAM gives fast working space; a 6-channel DMA moves ADC and McBSP data without CPU intervention. The control peripherals are the reason engineers reach for a C2000: 18 ePWM channels (six with high-resolution HRPWM for sub-nanosecond edge placement), 6 capture (eCAP) and 2 quadrature-encoder (eQEP) units, and a 16-channel 12-bit ADC that converts in 80 ns. Together they close a digital power or motor loop entirely on chip.

Communications and system glue are equally complete: three SCI (UART), one SPI, two McBSP, one I2C and two eCAN modules cover field buses and host links, while an external interface (XINTF) extends memory for data-logging or display work. The device runs a 1.9 V core and 3.3 V I/O with 88 individually muxable GPIO, and code-security and a boot ROM with multiple boot modes round out a controller designed to drop into a high-reliability industrial or automotive control board.

Note: Values are taken from the Texas Instruments TMS320F28335 datasheet (SPRS439). Confirm every parameter against the latest official documentation before committing a design.

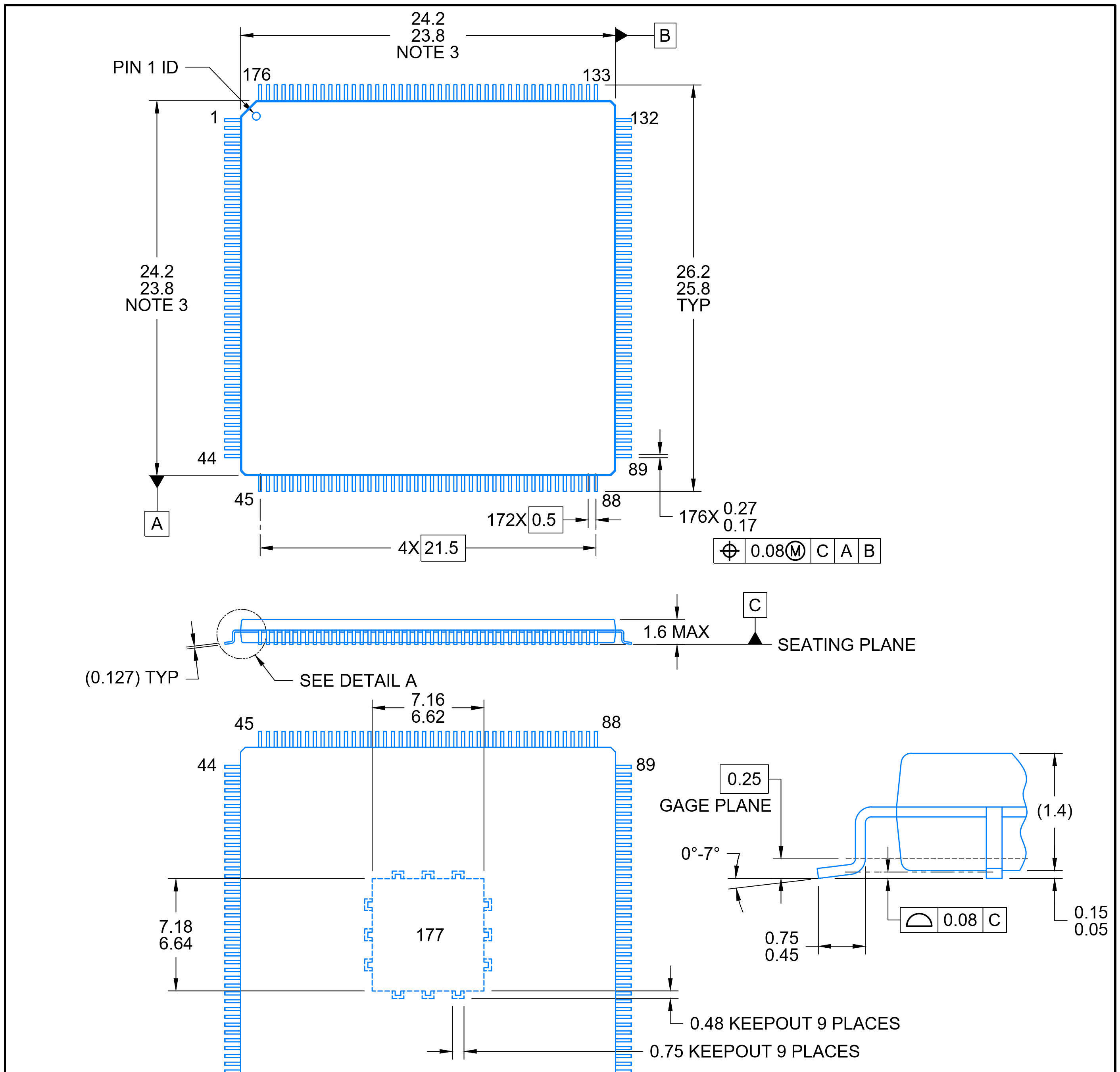

TMS320F28335 in the PGFA order option is supplied in a 176-pin PGF/PTP LQFP (low-profile quad flat pack) measuring 24 mm x 24 mm with a 0.5 mm lead pitch and 1.6 mm maximum height. The 176 gull-wing leads on four sides carry the 88 GPIO, the ADC inputs, the external interface bus and the supplies; the wide body and fine pitch reflect the large peripheral count. The "A" in the orderable code denotes the -40 to +85 °C temperature grade. Package dimensions and the pin-1 orientation are shown below.

📄 Download the official TI TMS320F28335 Datasheet (PDF)

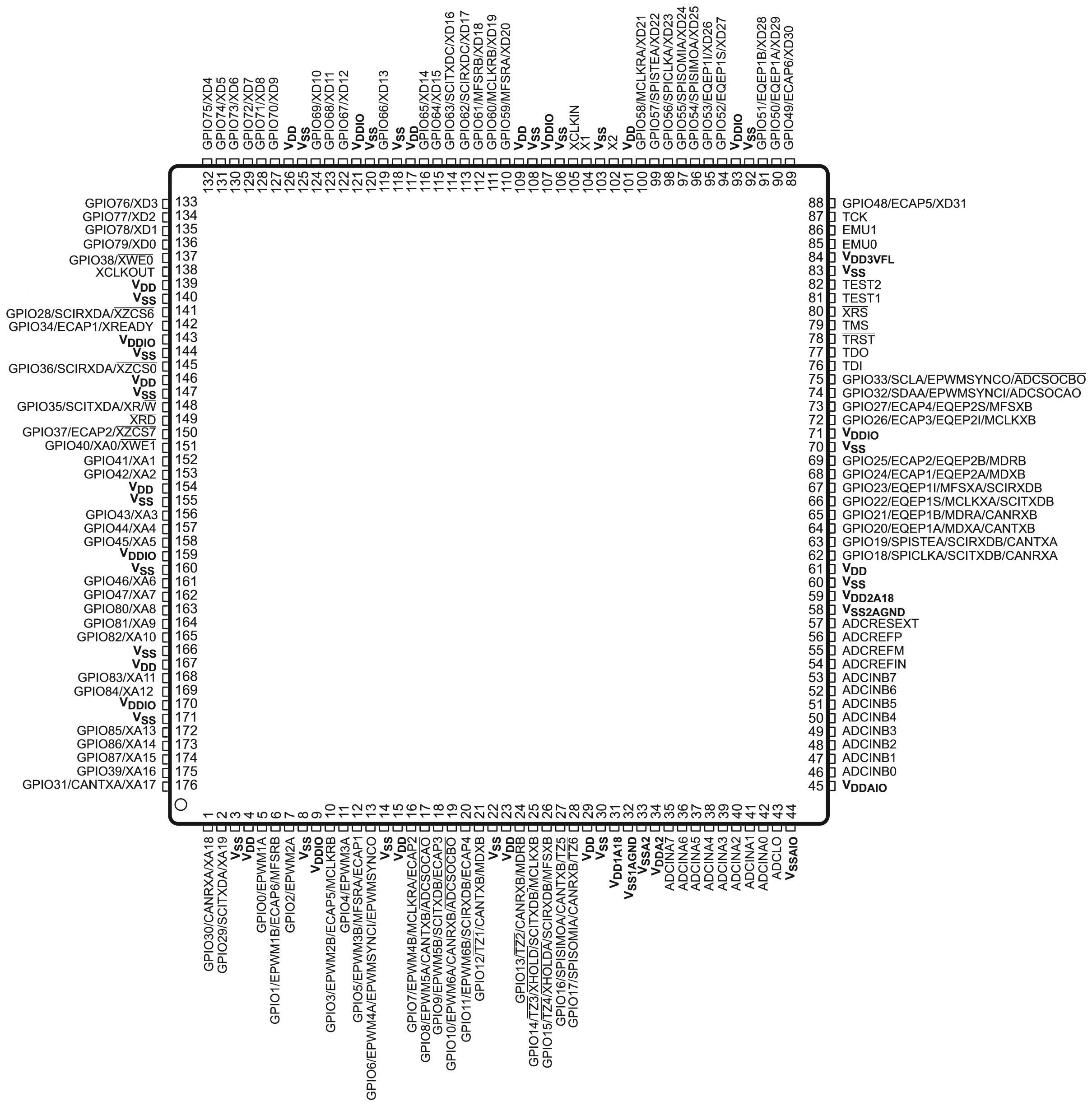

The 176 pins group into supplies, the GPIO/peripheral matrix, the analog front end and the external interface. The key signal groups are:

• VDD / VSS: 1.9 V core supply and ground; multiple pins for low-impedance distribution.
• VDDIO / VDD3VFL: 3.3 V I/O supply and the 3.3 V flash supply.
• VDDA / VSSA / VREFs: Analog supply, ground and ADC reference pins for the 12-bit converter.
• GPIO0-GPIO87: 88 multiplexed general-purpose I/O that map to ePWM, eCAP, eQEP, SCI, SPI, McBSP, I2C and eCAN functions.
• ADCINA0-7 / ADCINB0-7: The 16 analog inputs to the 12-bit ADC.
• X1 / X2 / XCLKIN: Crystal oscillator and external clock inputs for the on-chip PLL.
• XRS: Reset input; TRST/TCK/TMS/TDI/TDO form the JTAG debug port.
• XINTF bus (XA, XD, XWE, XRD, XZCS): Address, data and control lines of the external interface for off-chip memory.
• TZ / EPWM / ECAP / EQEP: Trip-zone, PWM, capture and quadrature signals brought out through the GPIO mux for the control loop.

The parts below are references within TI's C2000 family. They are not drop-in replacements; verify memory size, FPU presence, package and peripheral count before substituting.

Selection Tips: Choose TMS320F28335 when a single-core floating-point control loop needs 512 KB flash and a full ePWM/ADC set in a 176-LQFP. Step down to F28334/F28332 to save memory cost, to F28069 Piccolo for a smaller lower-cost design, or up to the dual-core F2837xD when one C28x core can no longer carry the control and communications load.
