The D5V0L1B2S9-7 is a transient voltage suppressor designed to protect sensitive electronics from damage caused by electrostatic discharge. The B in the part number stands for bidirectional: two back-to-back junctions sit between the two terminals, so the device clamps transients of either polarity and can be mounted in either orientation - a practical advantage on signal lines that swing both ways or simply for foolproof assembly.

Its protection headroom is substantial for such a small device: ESD withstand is rated at ±30kV contact and ±30kV air per IEC 61000-4-2 - double the Level 4 requirement - and the peak pulse rating reaches 6A / 84W (8/20µs). Clamping is correspondingly firm: 7.0V typical (9.0V max) at 1A, rising to only 11.5V typical at the full 6A, thanks to a low differential resistance of 0.2Ω typical. The working voltage VRWM is 5V with channel leakage of just 10nA typical.

With a channel input capacitance of 15pF typical (20pF max), the low-capacitance design suits general signal, button, audio and lower-speed interface lines of cellular handsets, portable electronics, digital cameras, MP3 players and computer peripherals. The SOD-923 package occupies roughly 0.8mm x 0.6mm of board space at about 0.001g (marking S/S), and the -7 suffix denotes 10,000 units on 7-inch tape and reel. The device is totally lead-free, halogen and antimony free ("Green"), and operates from -65°C to +150°C.

Note: Refer to the official Diodes Incorporated D5V0L1B2S9 datasheet for full electrical parameters and curves. Subject to change without notice; verify all parameters before final design.

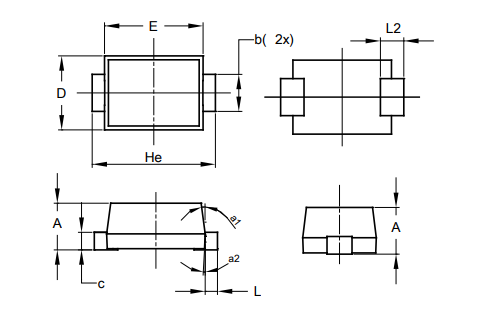

The D5V0L1B2S9-7 comes in the SOD-923 case - a two-terminal leadless miniature outline of roughly 0.8mm x 0.6mm body and about 0.001g, molded in "Green" UL 94V-0 compound. Terminals are matte tin over alloy 42 leadframe (lead-free plating), solderable per MIL-STD-202 Method 208.

Moisture sensitivity is Level 1 (J-STD-020), so no dry-pack handling restrictions apply. The -7 suffix is 10,000 units on 7-inch, 8mm tape and reel. Marking code is S/S; being bidirectional and symmetric, the device has no polarity bar and orientation is free.

The device has two interchangeable terminals - the internal back-to-back junctions make it fully symmetric:

• Pin 1: Protection terminal - connect to the protected line or ground.
• Pin 2: Protection terminal - connect to the remaining node (line or ground).

Because the device is bidirectional, either pin may face the line; no polarity marking is needed. For best results place it directly at the connector with the shortest possible loop to ground. The device schematic below shows the back-to-back topology between the two pins.

The following ESD protection diodes are listed for reference. Verify working voltage, direction, capacitance, clamping and footprint before substituting.
