The SN74AHC1G04-Q1 is a single-gate logic inverter: it takes one logic input (A) and produces its complement at the output (Y = NOT A). "Little-logic" devices like this exist so a designer can place exactly one gate exactly where it is required - to invert a polarity, buffer a long trace, or square up a slow control line - without spending a full 14-pin quad-gate package and the board area that comes with it. The 5-pin SOT-23 outline fits next to the signal it serves.

This part belongs to the AHC (advanced high-speed CMOS) family, which balances speed, drive and power for general 2 V–5.5 V systems. Two things make this specific device useful in demanding designs. First, the input has a Schmitt-trigger action, so it accepts the slow, rounded or slightly noisy edges that come off sensors, RC networks and long wires, and still produces a clean digital output. Second, the "-Q1" suffix means the device is qualified for automotive applications and rated for a −40 °C to +125 °C ambient, so the same gate that works on the bench survives under the hood.

Typical uses are signal inversion, clock or enable buffering, simple level conditioning and logic glue between blocks that run at the same rail. Because it draws only about 20 µA quiescent and switches in single-digit nanoseconds, it suits both always-on automotive modules and power-sensitive industrial and consumer boards.

Note: Values are from the Texas Instruments SN74AHC1G04-Q1 data sheet (SCLS540D, T_A = 25 °C unless stated). Confirm every parameter against the latest data sheet before committing a design.

The SN74AHC1G04-Q1 is supplied in the DBV package - a 5-pin SOT-23 (JEDEC MO-178, outline DBV0005A, 1.45 mm maximum height). The body measures about 2.9 mm × 1.6 mm with a 0.95 mm terminal pitch, which makes it one of the smallest standard footprints able to carry a full single gate plus power and ground. It is supplied tape-and-reel for automated placement.

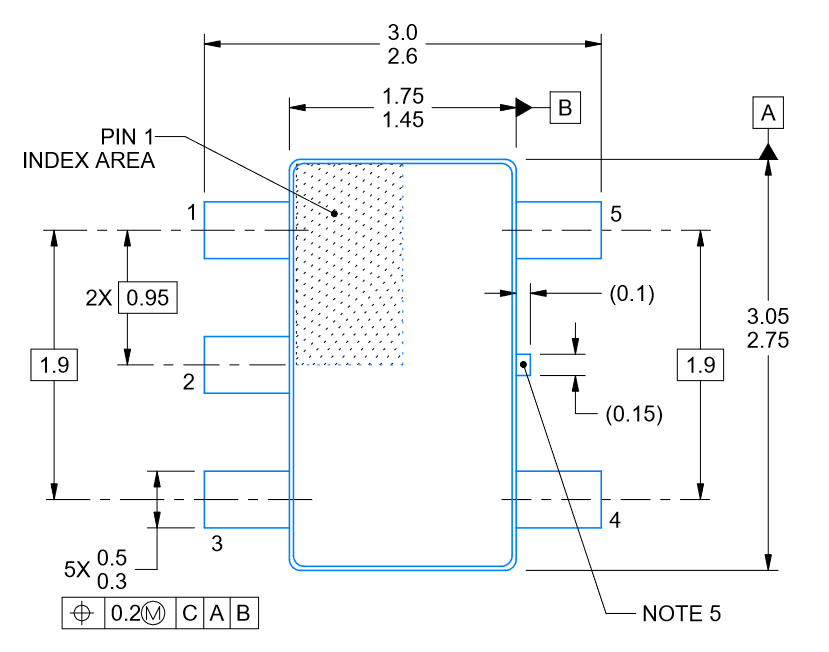

The compact outline lets the inverter sit immediately beside the signal source it conditions, keeping the input stub short. The dimensioned package drawing is shown below for land-pattern and stencil design.

The SN74AHC1G04-Q1 uses the standard single-gate 5-pin assignment (top view):

• Pin 1 – NC: No internal connection; leave open or tie to a plane for mechanical support.
• Pin 2 – A (Input): Logic input with Schmitt-trigger action; accepts 0 V to 5.5 V.
• Pin 3 – GND: Ground (0 V) reference.
• Pin 4 – Y (Output): Inverted output, Y = NOT A; drives ±8 mA at 5 V.
• Pin 5 – V_CC: Positive supply, 2 V to 5.5 V; decouple with a local 0.1 µF capacitor.

The following single inverters are common cross-references. They share the single-gate 5-pin pinout but differ in logic family - speed, supply range and drive - so confirm the family fits your rail and timing, and check the automotive grade if the design needs it.

Logic Family Comparison

Texas Instruments (TI, NASDAQ: TXN), headquartered in Dallas, Texas, is one of the largest suppliers of logic devices and the originator of the "little-logic" single-gate portfolio. Its automotive (-Q1) logic is processed and qualified for the temperature range and reliability expectations of vehicle electronics.

The governing document for this device is the SN74AHC1G04-Q1 data sheet (SCLS540D), which defines the electrical limits, the Schmitt-action input behaviour and the DBV package outline. InFortune Electronics supplies the device under code 1A1G04QDBVRG4Q1 and provides sourcing and technical support.
