Much of the difficulty in a measurement shows up after the sensor. The element that reacts to the physical world, a thermopile or a strain gauge, is often the cheapest and best understood part of the whole path. What decides whether the final reading can be trusted is everything sitting between that element and the register the firmware reads. A sensor hands off a small electrical quantity that noise swamps easily, and carrying it intact all the way to the converter is where the design effort lands.

That is why the choice of a sensor is hard to separate from the choice of everything downstream of it. A part number on its own says little until you know the reference it will sit against and how far its signal has to travel before anything digitises it. The chain has a shape, and that shape changes with the quantity being measured and the place the device has to survive.

The sensor is only the first link

Some quantities are slow and close to scalar, and the sensor for them is nearly a finished answer. Temperature is the clearest case, since a part can read out degrees over a digital bus with the conversion already done inside it, so matching a temperature part to the accuracy and cost a design can carry is more about selection than building a circuit. Ambient light and color sit in the same family, where reading light level and color off a single chip usually comes down to an I²C device and a calibration table. Air quality is messier, and sensing humidity and gas inside a connected product means living with a part that drifts and asks for occasional recalibration.

Pressure and force need a transducer that bends or strains, and the bridge it forms puts out a few millivolts that mean nothing until amplified, so the handful of ways to measure pressure and force accurately leans heavily on the front end that follows the element. Flow and level are often inferred from pressure or from a time of flight, so the sensing approaches for flow and liquid level stay application-specific, with no single part to recommend.

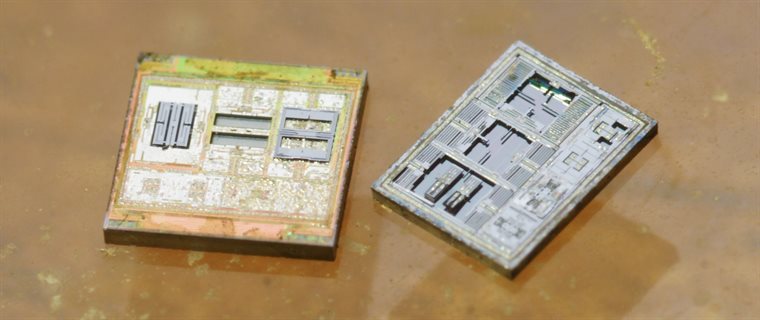

Motion is where a single part tends to hide a whole chain inside its own package. An IMU runs its sampling and fusion internally, so choosing an accelerometer or a full IMU for motion and orientation is partly a decision about how much of the signal chain to buy already built in. Current and magnetic field divide the same way into raw and processed, and measuring current or field without breaking into the circuit can mean a shunt and an amplifier, or a Hall device that returns a finished digital value. Position and angle close the group, where picking up position and angle with no mechanical contact leans on calibration to hold off interference from stray fields.

Another group reaches outward to take in a scene of some size. Ranging and presence put a number on distance or on simple occupancy, and giving a device the means to range and to notice presence covers everything from a cheap PIR up to a time-of-flight array. Sound and vibration carry their information in the spectrum, where the raw level alone says little, so capturing audio and watching for vibration ends at a converter fast enough to hold the band of interest.

Imaging is the heaviest of these by a wide margin. An image sensor floods the system with parallel or high-speed serial data, and choosing an image sensor to fit the application pulls in interface bandwidth, lens format and frame timing well before any of it turns into a measurement. For quantities this far from a slow, steady voltage, the sensor behaves like a subsystem of its own, and its interface and data rate get fixed long before the rest of the board does.

From a small signal to a number

Between the sensor and the converter sits the stage that separates a clean reading from a noisy one. A bridge or a thermocouple puts out something in the low-millivolt range, and it has to be amplified without amplifying the interference that rides along with it. How well that step is done sets a ceiling the rest of the chain cannot lift.

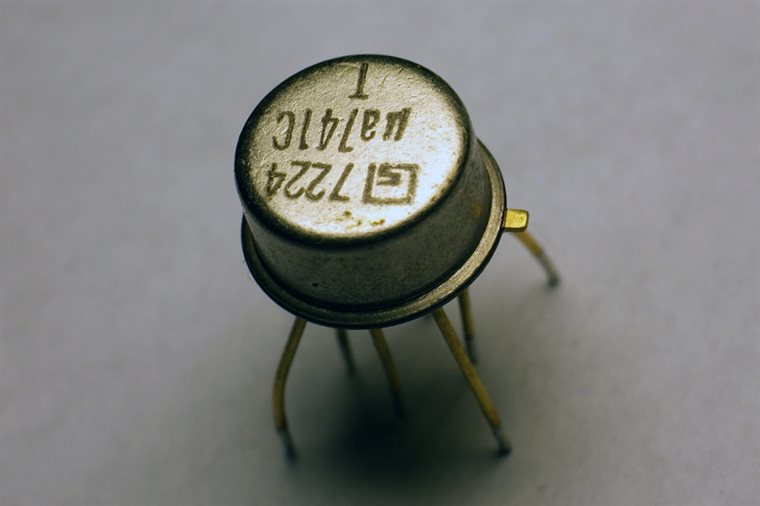

The reason this stage carries so much weight is that a measurement is a difference read against a reference, and both parts of that hide trouble. Take the difference first. The signal of interest is often small next to what it rides on. A load cell might swing a few millivolts on a common-mode level of two or three volts, and a high-side current-sense amplifier might read tens of millivolts while both its inputs float near a rail of forty volts or more. An instrumentation amplifier is built to discard what its two inputs hold in common and keep only what differs between them, and the figure that matters is its common-mode rejection at the frequency of the interference, which usually sits well under the headline number printed at the top of the datasheet. The reference is the second half of the problem. A converter reports its input as a fraction of a reference voltage, so a result is only as steady as that reference; a few hundred microvolts of noise or slow drift on the reference pin land straight in the reading, and the converter takes on every bit of switching noise that reaches it. There is also the converter's own noise floor and the slow one-over-f wander of the front end, which set how many readings have to be averaged before another bit of resolution becomes real. Grounding ties all of it together. When the return current of a digital section shares copper with the analog return, it drops a small voltage along that shared path, and the converter reads that voltage as if it were signal. A part sold as sixteen bits can deliver closer to twelve usable ones once it sits on a noisy reference and a shared ground, with the lowest bits left tracking the interference.

These constraints shape the converter and amplifier choices that follow. Turning a weak sensor output into a clean digital reading is where the converter architecture and the front-end gain get settled against the resolution a board can reach in practice. The reference and the anti-alias filter belong to the same decision, since fitting a filter and a voltage reference ahead of the sampling instant keeps out-of-band noise from folding back into the result and gives the converter something stable to measure against.

All of this happens before the reading has gone anywhere. Once a board carries several measurements at once, the next question is how they share the path back to the processor.

Reading the datasheet for the chain

A useful habit is to read each datasheet for what the part does to the whole chain. An amplifier's offset drift, given in microvolts per degree, often decides a low-level reading's stability ahead of its bandwidth, and a reference's long-term drift, in parts per million over a thousand hours, decides whether a calibration still holds after a year in service. Pulling those drift and ageing numbers together is what judging how long a sensor stays trustworthy in the field comes down to. These are the lines that get skimmed when a part is judged on its front page alone.

The same applies to the converter, where the number that counts is the effective number of bits under a real source impedance and sampling rate, a figure that often falls a bit or two below the resolution printed on the front page. Read this way, the part that looks adequate on its own can turn out to be the one that caps the measurement, and the gap shows up only once the specs from every stage are compared together.

Sharing the bus

Several sensors on one board share a bus, and getting them onto a single I²C or SPI line brings address clashes and timing ceilings.

Budgeting the error end to end

A finished measurement has an accuracy that no single part sets. The sensor starts it off with an initial tolerance; downstream, the amplifier's offset, the reference's temperature coefficient and the converter's nonlinearity each add a share of their own. These terms combine across the chain, and because the independent ones add as a root-sum-of-squares and not a straight sum, the largest of them tends to dominate while the small ones barely move the result.

That should change where the effort goes. Pushing a sensor from 0.1 percent down to 0.05 percent buys nothing measurable while a 0.5 percent reference sits in the same path, so the first move is to find the dominant term and spend the budget there. A short error budget written at the start, even a rough one, turns a vague call for an accurate sensor into a number each link has to meet.

Time is part of the reading

A reading also happens at a moment, and in a system that fuses several sensors the time it was taken feeds into the result. An IMU and a magnetometer sampled at different rates have to be aligned in time before any fusion of them means much, and a position fix carrying the wrong timestamp puts a moving vehicle several metres from where it stood. The chain adds delay at every stage, and not always a fixed amount, so a design that treats each reading as if it arrived the instant it was requested will see errors that look like random noise yet climb with the speed of whatever the device is mounted on.

Where the device has to live

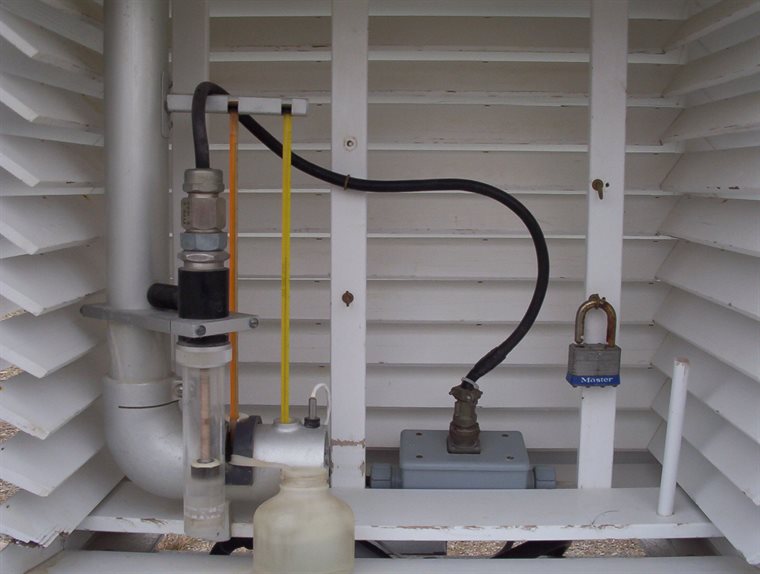

The place a device ends up adds its own pull on every link at once. A sensor rated to a comfortable lab range can sit in an enclosure that swings across a wide span of temperature, and that swing moves offsets and references everywhere in the chain, not only in the sensing element. Heat is rarely the only stress; an outdoor or automotive box brings vibration, condensation and supply transients that each act on a different part of the path. Where the sensing element sits at the far end of a cable, those stresses reach it along the wiring, and powering and protecting a sensor line that leaves the board becomes a design problem of its own.

Power adds the last pull. A measurement on a coin cell cannot run the chain continuously, so it gets sampled in short bursts with the analog front end powered down between them, and the settling time after each wake-up becomes part of what limits the rate. The signal chain on a wall-powered industrial sensor and the chain on a battery node measuring the same quantity end up looking different, because a different constraint dominates each one.

The same part in another box

A sensor that works gets reused far outside the design it was first chosen for. The pressure part picked for a drone altimeter turns up unchanged in an HVAC damper or a patient monitor, and following one sensor across the industries that adopt it is a quick way to see which of its specs a vendor keeps stable and which were incidental to one product. The same pattern is why a catalogue fills out over time with the ordinary parts a design keeps reaching for, and filling a design out with the common sensor parts it still lacks is the kind of housekeeping that keeps a bill of materials from stalling late in a project.

Supply is the constraint that decides whether any of the rest can be built in volume. A sensor can be designed in cleanly and still go end-of-life or jump in price between one build and the next, and finding an equivalent and lining its supply up ahead of time is what keeps that from forcing a late redesign. A distributor that holds cross-references and real stock matters here for a plain reason: a verified equivalent on the shelf will ship, while a stronger part on a long lead time will not.

None of this argues against caring which sensor goes in. It places that one choice inside a longer chain, where everything downstream of the sensor has a hand in the number the firmware finally reads.
